10.2 Trace Data Output Procedure
(ESR0230b)
When a problem occurs due to an unknown cause, the processing details must be
obtained in order to identify the cause and correct the problem.
To do this, and to enable Fuji to analyze the conditions which were in effect when the
problem occurred, the trace data (a record of the software processing) must be output.
This output can be performed in either of the following two ways.
Procedure A

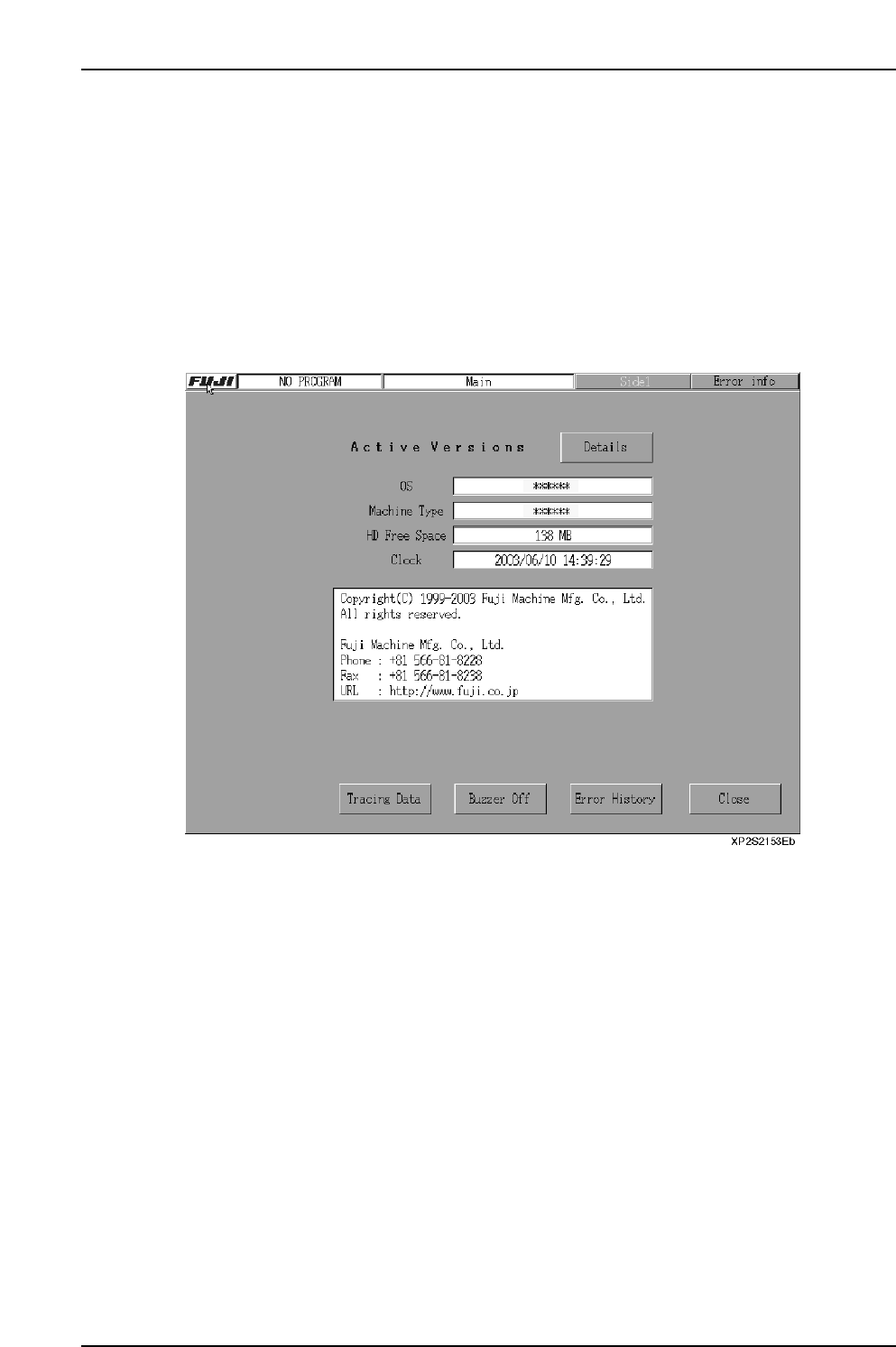

• Insert a floppy disk in the floppy disk drive. Click the [FUJI] logo at the top left of
the screen to display the screen shown below, then press [Tracing Data].
Procedure B
• When a system error occurs, [Tracing Data] displays onscreen. Insert a floppy
disk in the floppy disk drive, then press [Tracing Data]. After the trace data has
been written to the floppy disk, restart the machine.
Caution: When reading and writing data from a floppy disk, ensure this task is complete
before writing the trace data. Reading and writing to and from the floppy disk may
fail if trace data writing is attempted before the task is complete.
Part 2 Chapter 10 When Trouble Occurs
Edition 2.0 2-10-2 XP-142E System Reference
Part 3
On-Machine
Programming
(ESR07AA)
This part explains the editing and
creation of production programs at
the machine.
1. Function Overview . . . . . . . . . . . . . . . . . . .3-1-1
2. Program Menu . . . . . . . . . . . . . . . . . . . . . .3-2-1
3. Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3-1
4. Expander . . . . . . . . . . . . . . . . . . . . . . . . . .3-4-1
1. Function Overview
(ESR0701b)

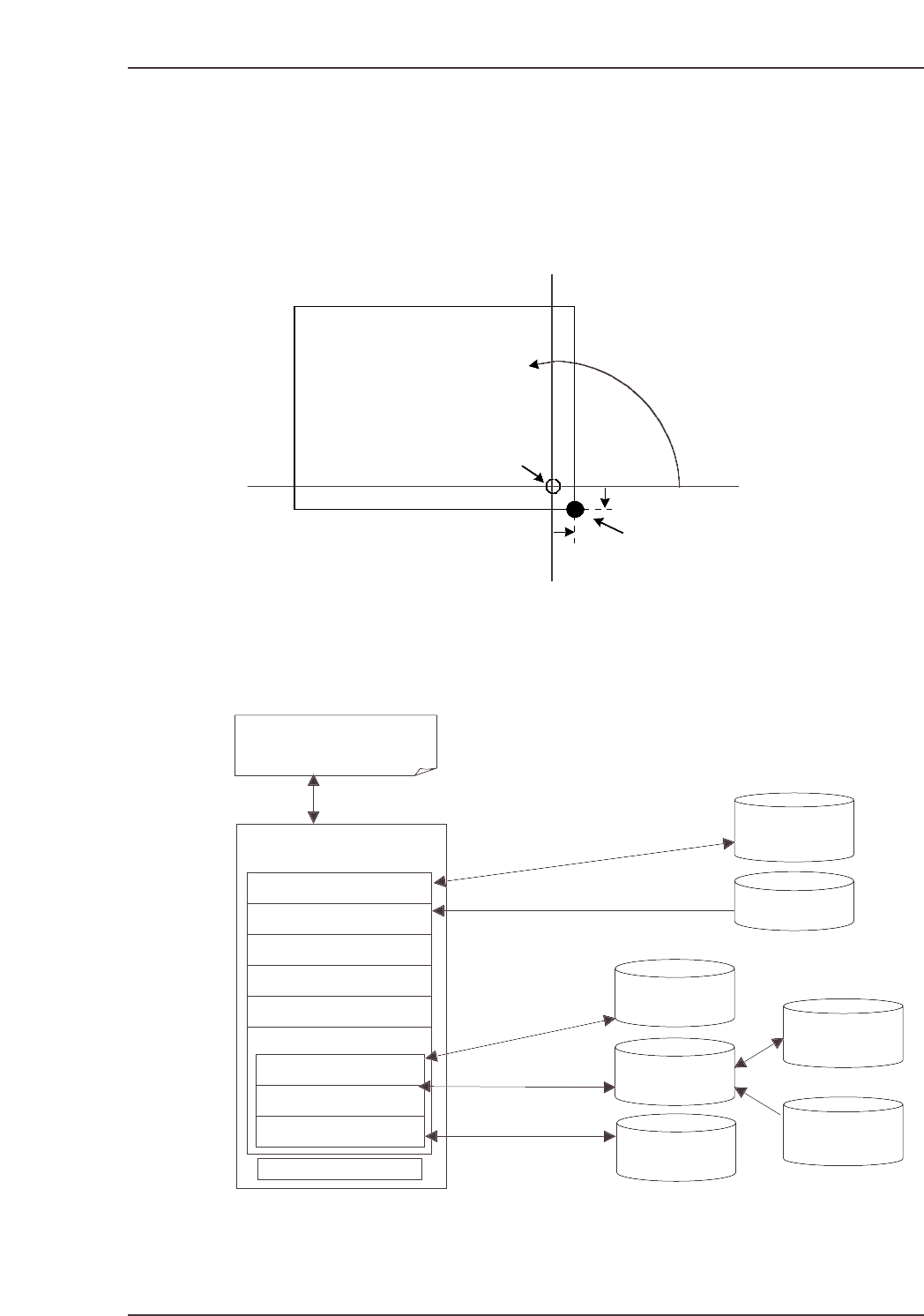

Production programs can be created and edited on the XP. The coordinate system used in
programming is the same as the rectangular coordinate system used in mathematics. CCW direction
angles are “plus” angles (“minus” angles cannot be specified). The program origin is a point 5 mm
above and to the left of the panel’s bottom right corner (Fuji standard specification machines).
1.1 Production Program Data Configuration
Production programs for XP machines use the data configuration shown below.
Production program
Mark file read/save
Library read/save
PartNumber
library *.PDH
PartType library
*.PDS
Packaging library
*.PDP
Library read/save
Library read/save
(*.PGO)
Nozzle data
Mark data
Sequence data
Panel data
Part data
Feeder setup data
PartNumber data
PartType data
Packaging data
:
Read from file
Stored to file
ozzle spec. data
Referencing
Mark file *.FMK
*.BMK *.LMK
Template vision
file *.PNG
Template file
*.TPL
Reading
Production program
being edited
XP2S2225E
A Proper data CCIMF
Template Mode setting
is required in order to
read template files.
Y+
Panel
Q+
Program origin
X- X+
X
Panel’s bottom right corner
Y-
+5 mm
-5 mm
Y
XP2S2043E
Part 3 Chapter 1 Function Overview
Edition 2.0 3-1-1 XP-142E System Reference
