Setting Item Explanations Selection area (sequence No.) Display the sequence number. Board No. (0 ~ 255) This is the ID number of each board in cases where a single panel (PCB) contains a number of same-pattern boards. T…

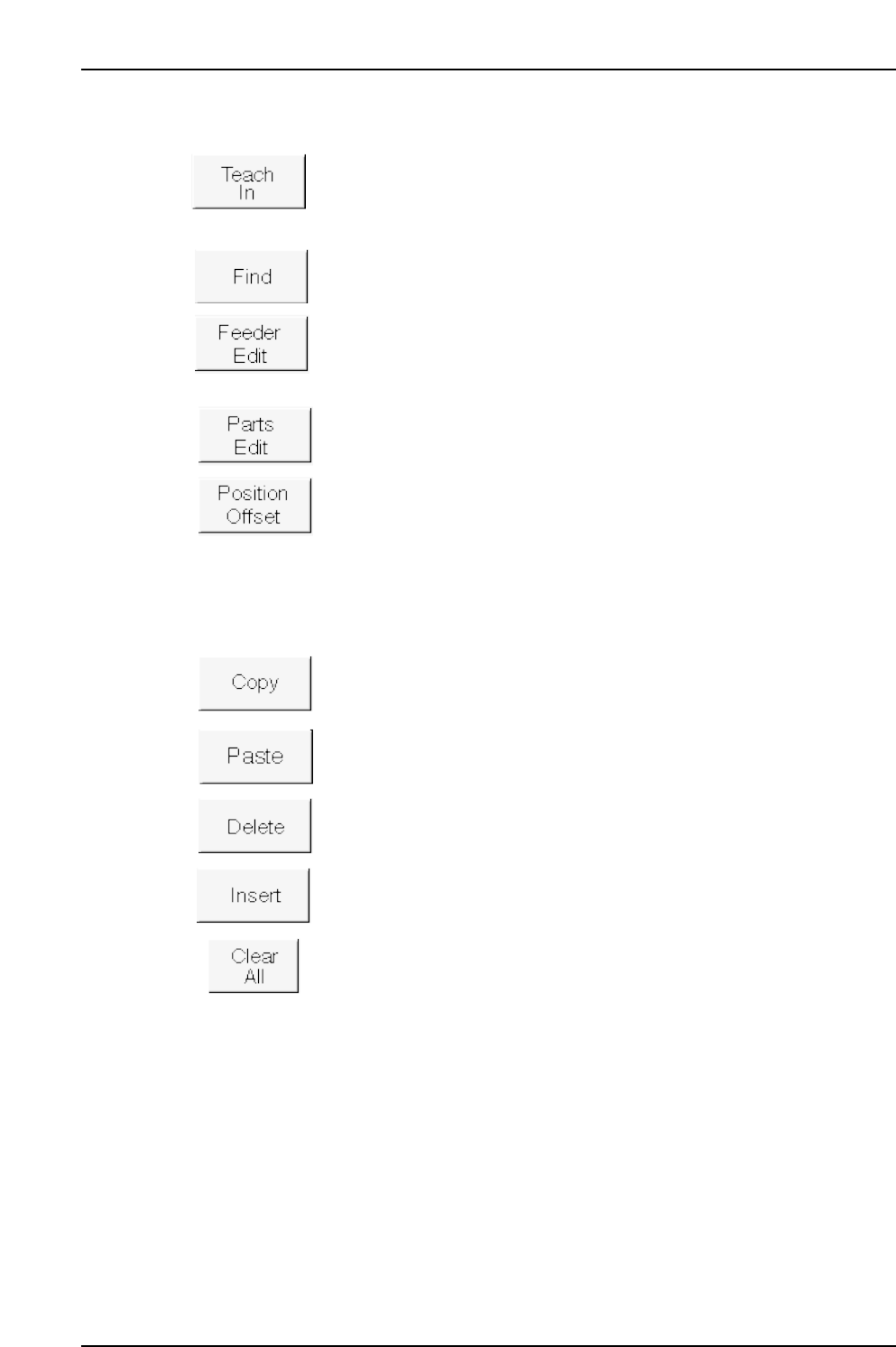

Operation Button Explanations
Press this button to perform sequence data editing using the teaching
function with actual machine operation.
Searches the sequence data for a specified character string.
Edits (at feeder setup screen) the feeder used at the selected line.
Edits (at part editor screen) the part to be placed at the selected line.
Offset coordinates for single boards.
The following buttons apply to the line which has been selected in the selection area at
the left side of the screen.
Copies the selected line to the clipboard.
Pastes the clipboard data above the selected line.
Deletes the selected line, and moves the subsequent lines up to fill the
vacated space.
Inserts a new (blank) line above the selected line.
Cancels all selections.
Part 3 Chapter 3 Editor
Edition 2.0 3-3-2 XP-142E System Reference
Setting Item Explanations
Selection area (sequence No.)
Display the sequence number.
Board No. (0 ~ 255)
This is the ID number of each board in cases where a single panel (PCB) contains a
number of same-pattern boards. This item should be set to “0” when producing panels
which do not contain multiple boards. When producing a multi-board panel, the
necessary sequence data is created in one of the following ways:
• A board No. of “1” is specified for a given board, and the sequence data is entered
manually for that board only. The machine then subjects this data to expander
processing to automatically generate the sequence data for the number of boards
being produced.
• The board Nos. and sequence data for all the boards are entered manually.
Sequence Type
Select the sequence type from the following.
B: Board skip mark reading sequence
D: Placement sequence
F: Fiducial mark reading sequence
X-coordinate
Enter the panel’s X-direction coordinate.
If a coordinate is entered relative to a reference point other than the Fuji program’s origin
point (-5 mm in X-direction, or 5 mm in Y-direction, measured from panel’s bottom right
corner), an X-offset value must be entered in the panel data as an “origin offset X”
setting. (-650.00 mm ~ 650.00 mm)
Y-coordinate
Enter the panel’s Y-direction coordinate.
If a coordinate is entered relative to a reference point other than the Fuji program’s origin
point (-5 mm in X-direction, or 5 mm in Y-direction, measured from panel’s bottom right
corner), an Y-offset value must be entered in the panel data as an “origin offset Y”
setting. (-650.00 mm ~ 650.00 mm)
Angle
Enter the angle of the part to be placed. Use the part angle viewed when editing the part,
as a reference.
Stage No.
Each of the machine sides where MFU part supply units are set is referred to as a
“stage”. On XP series machines, the front side is “stage 1”, and the rear side is “stage 2”.
Enter stage numbers which correspond to the sides where parts are being supplied.
(1, 2)
Slot No.
Slots are defined as the location of tape feeders loaded on the part supply units.
Enter a slot no. in which a part can be loaded. (1 ~ 50)
Mark No.
Specifies the mark number. Any number may be entered, provided that it does not
duplicate an existing number. Mark numbers can only be specified at the mark reading
sequence. (1 ~ 255)
Part 3 Chapter 3 Editor
Edition 2.0 3-3-3 XP-142E System Reference
Main Mark No.
Specifies the mark number which serves as the main reference for the part to be placed.
(1 ~ 255)
Sub-Mark No.
Specifies the mark number which serves as the sub-reference for the part to be placed.
(1 ~ 255)
Mark Name
Enter the name of the mark to be read. Be sure and enter the mark name when multiple
mark types exist. Valid only at the mark reading sequence. (Max. 23 characters)
Board Skip
Set this item to “1” when no parts are to be placed on a given board.
0: Not skipped 1: Execute board skip
Feeder Skip
Set this item to “1” when no parts are to be placed from a given feeder. When a feeder
skip is specified, all the relevant sequences are skipped if a skip is specified for any one
sequence at the slot in question.
0: Not skipped 1: Execute feeder skip
Sequence Skip
Select “1” when the sequence in question must be skipped.
0: Not skipped 1: Execute sequence skip

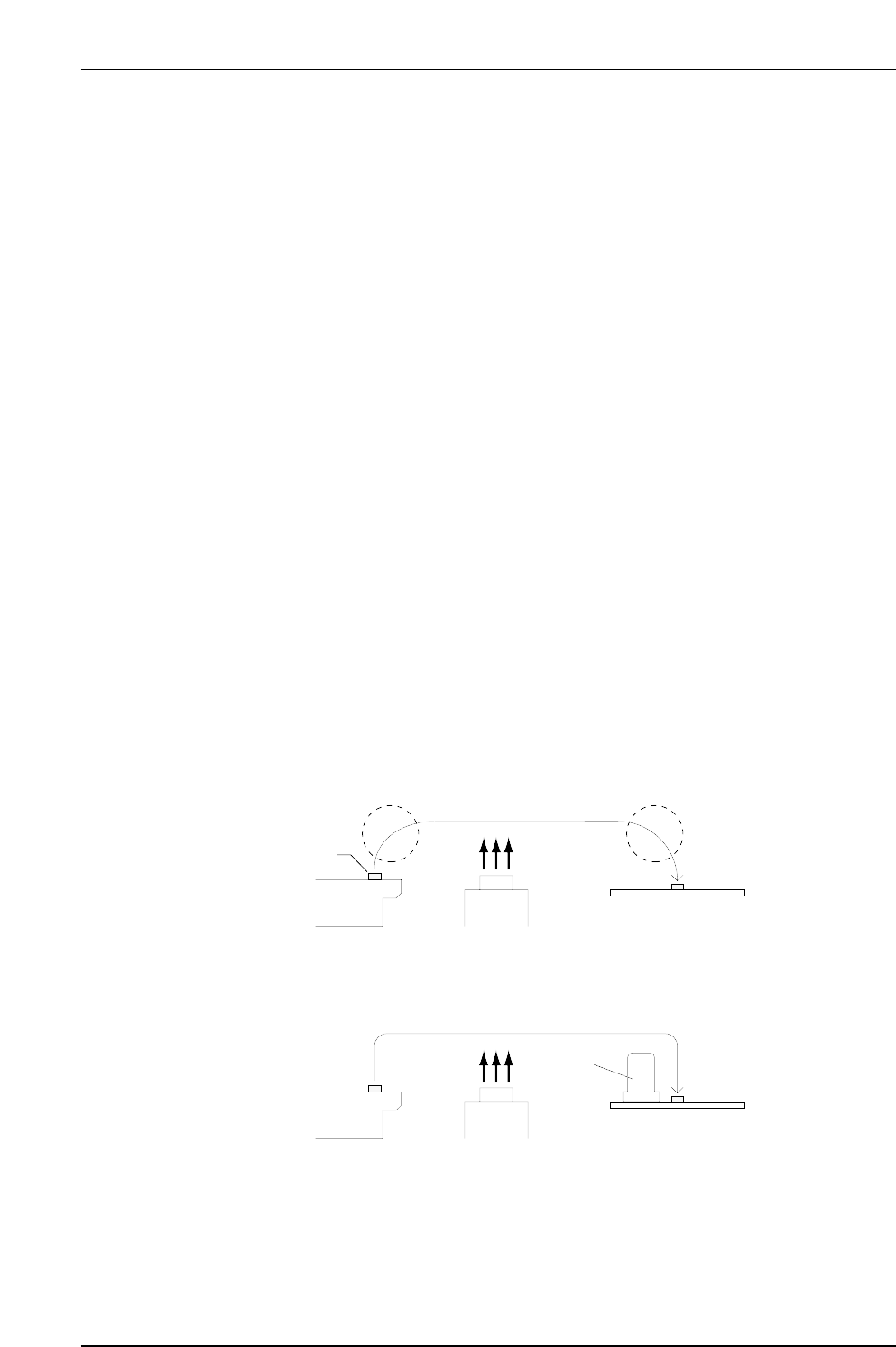

Transport Mode
With reference to the illustration below, select the axis motion desired when placing the
part. (Select a setting of “1” to decrease the chance of interference in placing sequences
where tall or large parts have been placed in advance.)
0: Arch motion 1: Gate motion
When "0" is input
When "1" is input
Part
Feeder
Camera
Panel
Feeder
Camera
Panel
Tall part
MCSX312Ec
Part 3 Chapter 3 Editor
Edition 2.0 3-3-4 XP-142E System Reference
