3.3 Adjusting the Conveyor Width

(ESR0217a)

The XP is equipped with a motor-driven conveyor width adjustment system that adjusts

the conveyor width in accordance with the data in the production program being used.

Procedure

1. At the [Main] screen, press [Manual Operation] then [Conveyor Width] to display

the [Conveyor Width] screen.

2. If a production program has already been read, the current conveyor width for

that program displays at the “Program Value” item. To change this value, select

the “Program Value” item to display a numeric keypad, then enter the desired

width value. To return to the production program width value, press [Set to

Program Value].

3. Press [Move] to display a start confirmation dialog box. Press [Start] to change the

conveyor width to the specified value.

4. Press [OK].

5. Press [Close] to return to the [Main] screen.

Note: Prior to performing conveyor width adjustment, ensure that the back-up pins are not located

in a position likely to result in interference with the conveyor. After adjusting the conveyor

width, ensure that the back-up pins are not located below the adjustable rail.

When performing conveyor width adjustment, ensure that no panels exist at any position

other than the In-station or Main-station panel arrival confirmation sensors.

3.3.1 Automatic Conveyor Width Start

The conveyor width is automatically adjusted when automatic operation begins if the

“_AutoConvWidth” Proper data item is set to “1”.

Start Conditions

1. The operation mode must be either “Production” or “Pass”.

2. The new conveyor width must differ by 0.3 mm or more from that specified in the

previous production program.

3. There must be no panels on the conveyor. (If a panel is present on the conveyor,

the width adjustment occurs after panel unloading.)

Part 2 Chapter 3 Changeover

Edition 2.0 2-3-6 XP-142E System Reference

Part 2 Chapter 3 Changeover

Edition 2.0 2-3-7 XP-142E System Reference

3.4 Loading and Unloading Boards

(ESR0218)

Boards are loaded into the machine automatically during operation, however it is also

possible to load or unload boards using commands at the machine. Manual loading or

unloading may be required in order to check the width of the conveyors, to check sensor

operation, or to unload a faulty board from the machine.

Procedure

1. Press [Manual Operation] then [Conveyor] at the [Main] screen. The [Conveyor]

screen displays.

2. To load a new panel, press [Load New Panel] in the [Other] section. To unload a

panel from the machine, press [Unload Panel]. For each of these actions, a start

confirmation dialog box displays. Press the START button to execute the loading

or unloading of a panel.

3.5 Nozzle Related Operations

(ESR0220h)

3.5.1 Nozzle Changes

This machine has a function that simplifies nozzle changes.

Procedure

1. At the [Main] screen, select [Manual Operation], then [Move to nozzle change

position] to display the nozzle change position dialog box.

2. Specify the change position (Stage and Slot No.), and push the START button.

3. The head will move to the specified position. The MFU will automatically

unclamp (if the machine does not have fixed devices.)

4. Remove the MFU from the machine.

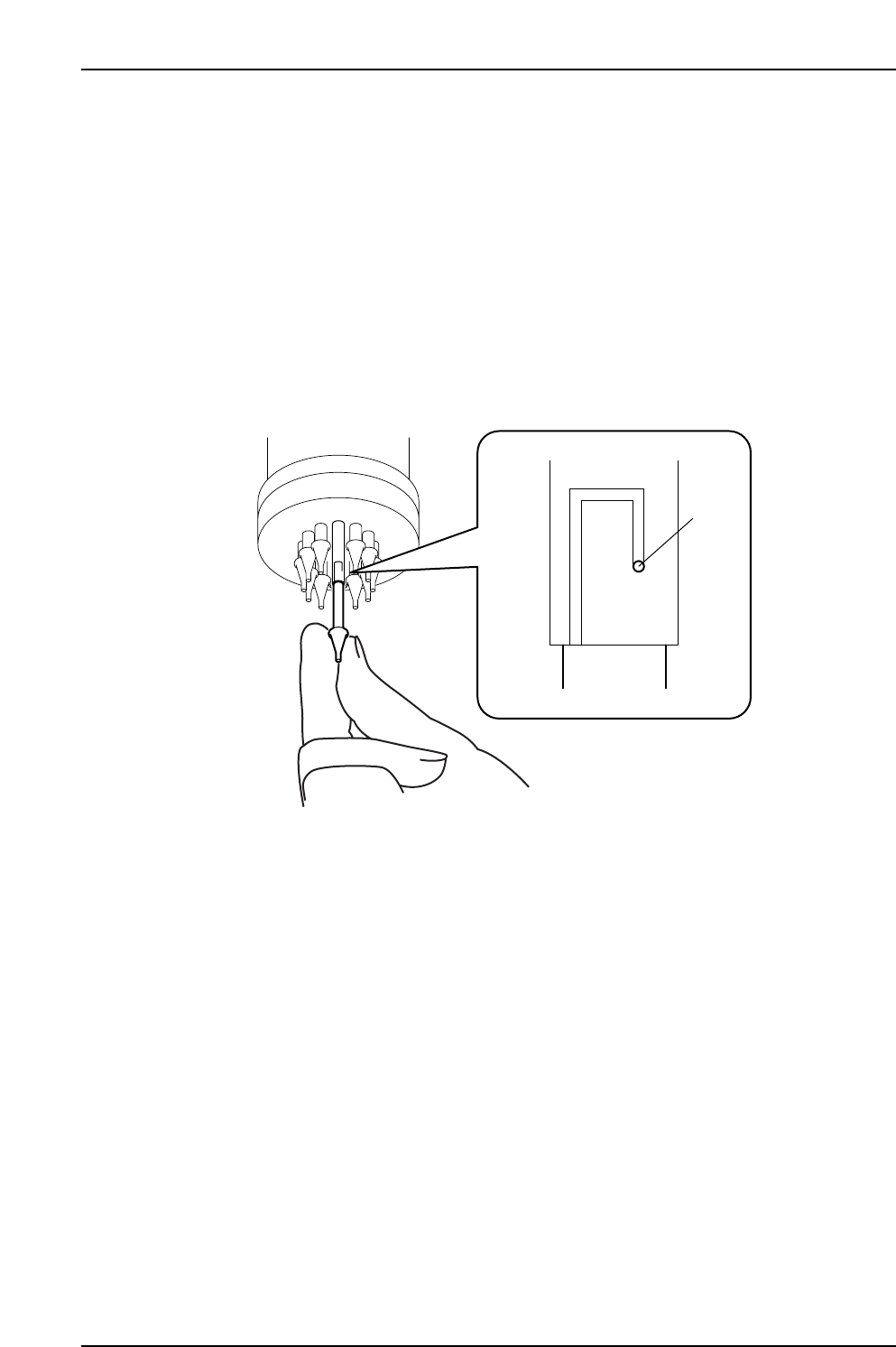

5. Push the nozzle up, rotate, and remove.

6. Insert the new nozzle and rotate it while pushing up.

7. Return and clamp the MFU to the machine.

XP1T3002Ea
