8.3.2 Copying From the Application Disk Procedure 1. After formatting is completed (or skipped), the following dialog box displays requesting the user to select the machine type where the recovery is to occur. Select the…

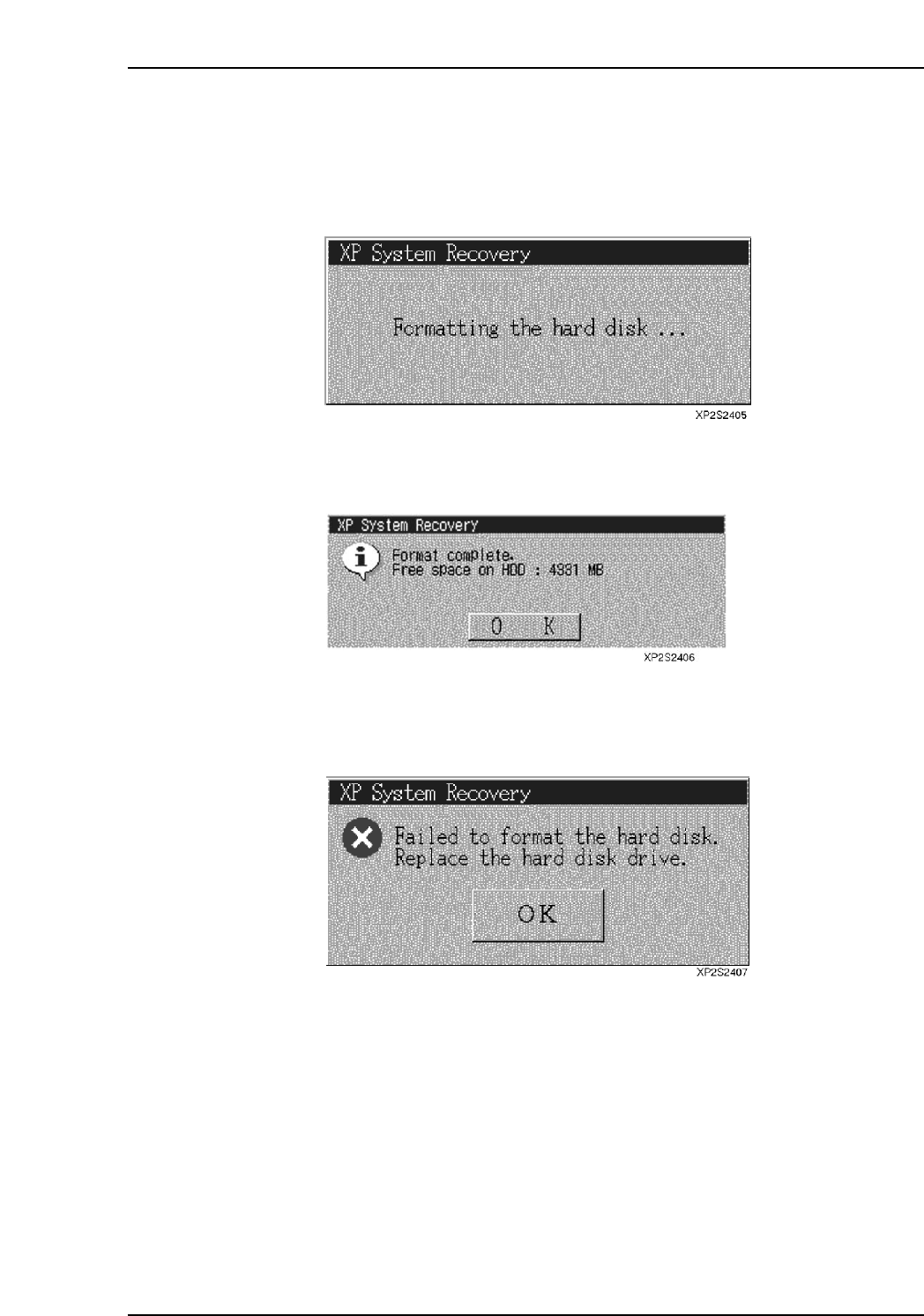

4. If [Yes] is pressed, a dialog box displays, and formatting begins. If [No] is pressed,

the formatting operation is skipped, and the system proceeds to the next step.

When only a section of the data or files in the hard disk are corrupted, it is possible

to restore the application by overwriting it. Therefore, if the status of the corrupt

data in the hard disk can be verified, the formatting step can be skipped.

5. After formatting is completed, the amount of vacant space on the formatted hard

disk is shown. Click [OK] to proceed to the next step.

6. If formatting fails, the following dialog box displays. Click [OK] to shut down the

XP machine.

Part 2 Chapter 8 System Administration

Edition 2.0 2-8-7 XP-142E System Reference

8.3.2 Copying From the Application Disk

Procedure

1. After formatting is completed (or skipped), the following dialog box displays

requesting the user to select the machine type where the recovery is to occur.

Select the appropriate machine type.

2. Press [OK] to display the following dialog box requesting the user to insert

application disk APL 1 in the floppy drive. To abort the recovery operation and

shut down the machine, press [Cancel].

3. If the wrong disk has been inserted (other than application disk APL 1), an error

message displays. The error dialog box shown below displays if an application

disk for another machine type has been inserted.

Part 2 Chapter 8 System Administration

Edition 2.0 2-8-8 XP-142E System Reference

4. If the above error dialog box displays, press [OK] to display (for the second time)

the dialog box requesting the user to insert application disk APL 1 in the floppy

drive. Insert the correct disk, then press [OK]. The following progress dialog box

then displays, and file copying begins.

5. After APL 1 copying is completed, a dialog box displays requesting the user to

insert APL 2.

To abort the recovery operation and shut down the machine, press [Cancel]. If the

wrong disk has been inserted (other than application disk APL 2), an error

message displays. If the correct disk has been inserted, a progress dialog box

displays, and file copying begins. The same procedure is repeated for application

disk APL 3. After the disk 3 files have been copied, another progress dialog box

displays while the copied files are being processed.

6. After all the data has been processed, the remaining application disks are copied

in the same manner.
