Merge

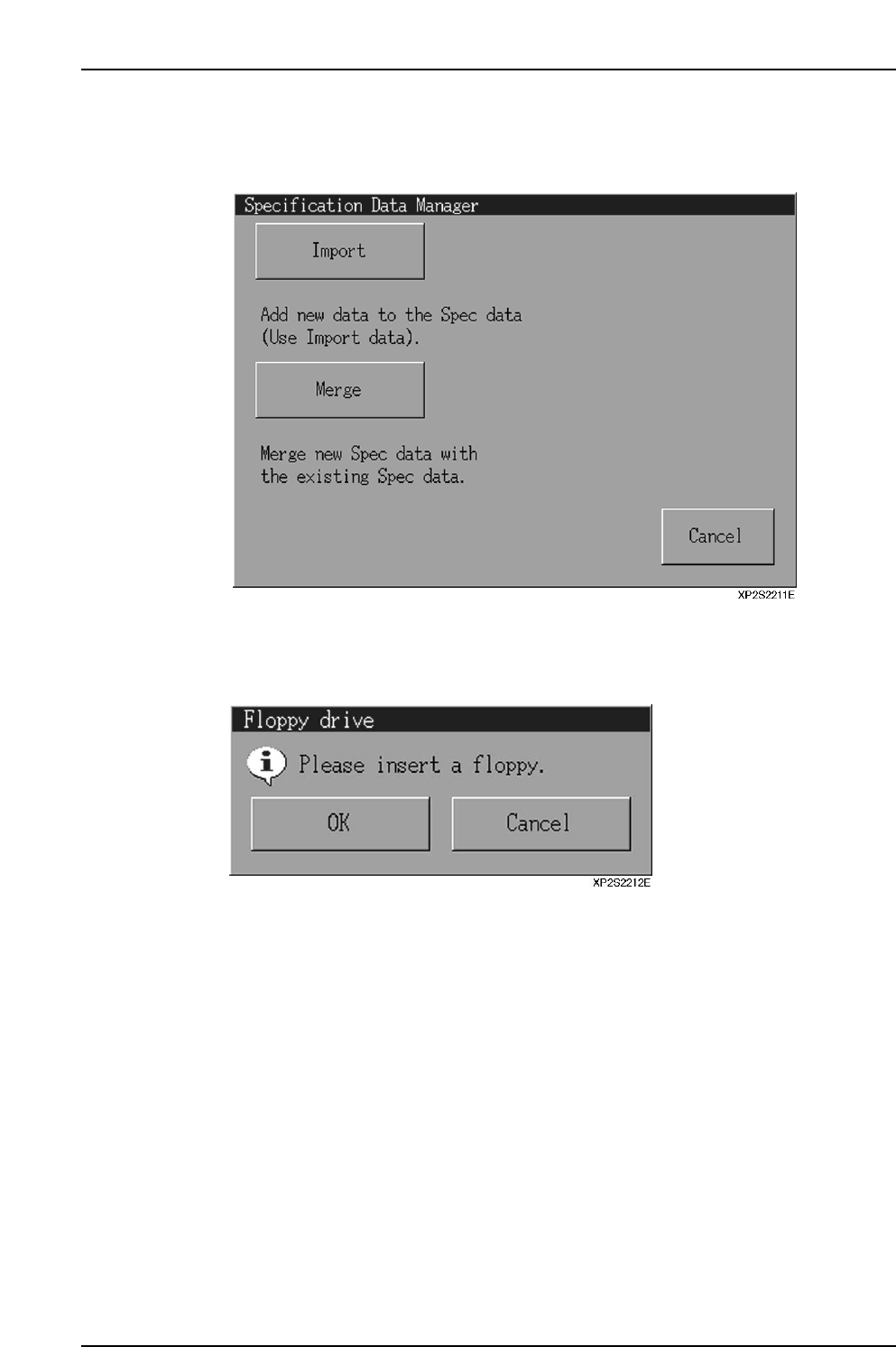

1. From the [Maintenance A] screen, select [Specification Data Administration] to

display the specification data administration dialog box shown below.

2. Insert the floppy disk containing the data to be imported in the floppy disk drive,

then press the [Merge] button.

3. Press [OK] at the floppy disk confirmation dialog box which displays.

Part 2 Chapter 7 Data Administration

Edition 2.0 2-7-6 XP-142E System Reference

4. A data file selection dialog box then displays. Select the file to be merged, then

press [Open].

5. The following message displays during the merge operation.

Part 2 Chapter 7 Data Administration

Edition 2.0 2-7-7 XP-142E System Reference

6. If specification data by the same name already exists, an “overwrite confirmation”

dialog box displays. Press [Yes] to overwrite the data in the machine’s file. Press

[YES to ALL] to overwrite all subsequent data.

Press [No] to prevent overwriting of the file in question.

Press [NO to ALL] to prevent overwriting of all subsequent data.

7. When the merge operation is completed, the dialog box shown below displays.

Press [OK] to return to the specification data administration dialog box.

Part 2 Chapter 7 Data Administration

Edition 2.0 2-7-8 XP-142E System Reference
