Displays the dialog box shown below. The log file save conditions (automatically deleted) can be set at this dialog box. The [O] and [X] buttons at the left enable and disable the conditions settings which are specified …

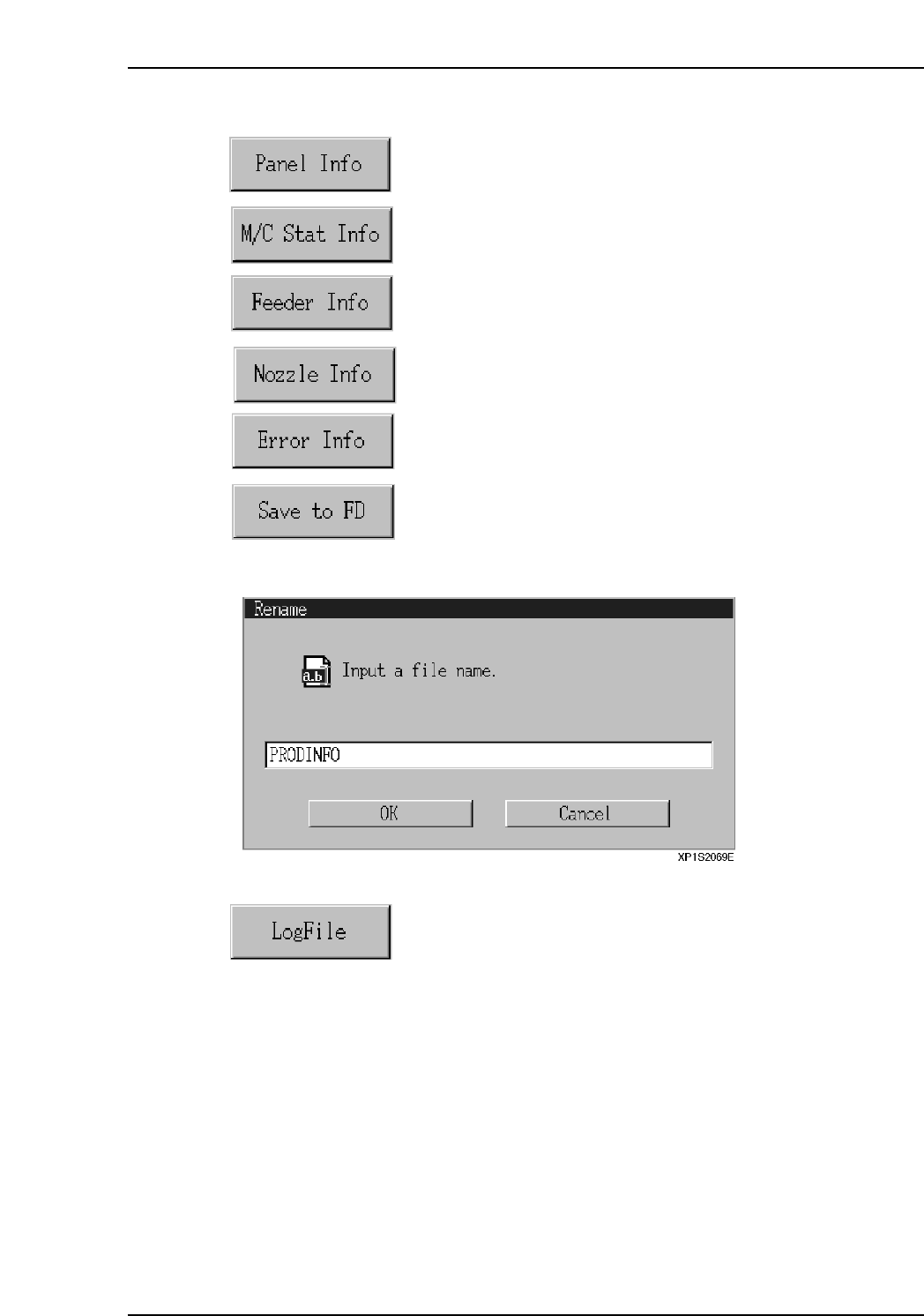

Operation Button Explanations
Proceeds to the panel information screen.
Proceeds to the machine status information screen.
Proceeds to the feeder information screen.
Proceeds to the nozzle information screen.
Proceeds to the error information screen.
Develops the production information in accordance with the
currently specified conditions, and saves it to a floppy disk.
Although the default file name for the saved data is "PRODINFO",
the name be changed at the dialog box shown below.
Proceeds to the log file selection screen.
Part 2 Chapter 6 Production Information Display
Edition 2.0 2-6-5 XP-142E System Reference

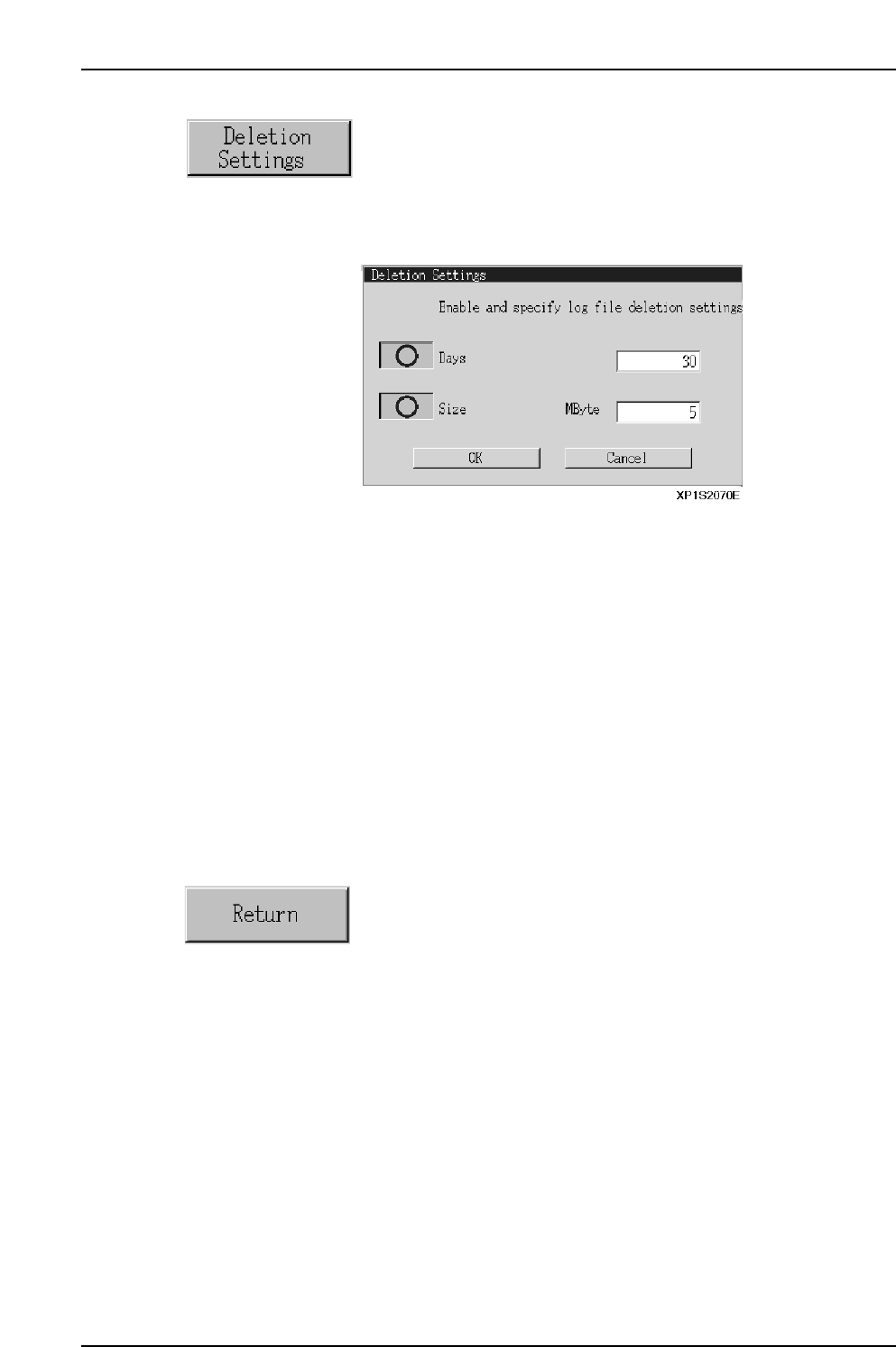

Displays the dialog box shown below.
The log file save conditions (automatically deleted) can be set at
this dialog box. The [O] and [X] buttons at the left enable and
disable the conditions settings which are specified by the numeric
values on the right.
Note: Even if these settings are changed, unnecessary log files will not
be deleted. Delete them manually from the log file selection
screen.
Save Period (Days): Specifies the number of days a log file is to
be saved. When a files "saved period"
reaches this value, the file is automatically
deleted.
Save Size: Specifies the total size of saved log files.
When this total size is exceeded, log files are
deleted, beginning from the oldest, until the
total size is less than the "Save Size" value.
However, log files which have been saved
for less than the "Save Period" are not
deleted. However, log files with the current
date will not be deleted even if the total log
file memory size exceeds the [Size] limit.
Returns to the main menu screen.
Part 2 Chapter 6 Production Information Display
Edition 2.0 2-6-6 XP-142E System Reference
Part 2 Chapter 6 Production Information Display
Edition 2.0 2-6-7 XP-142E System Reference

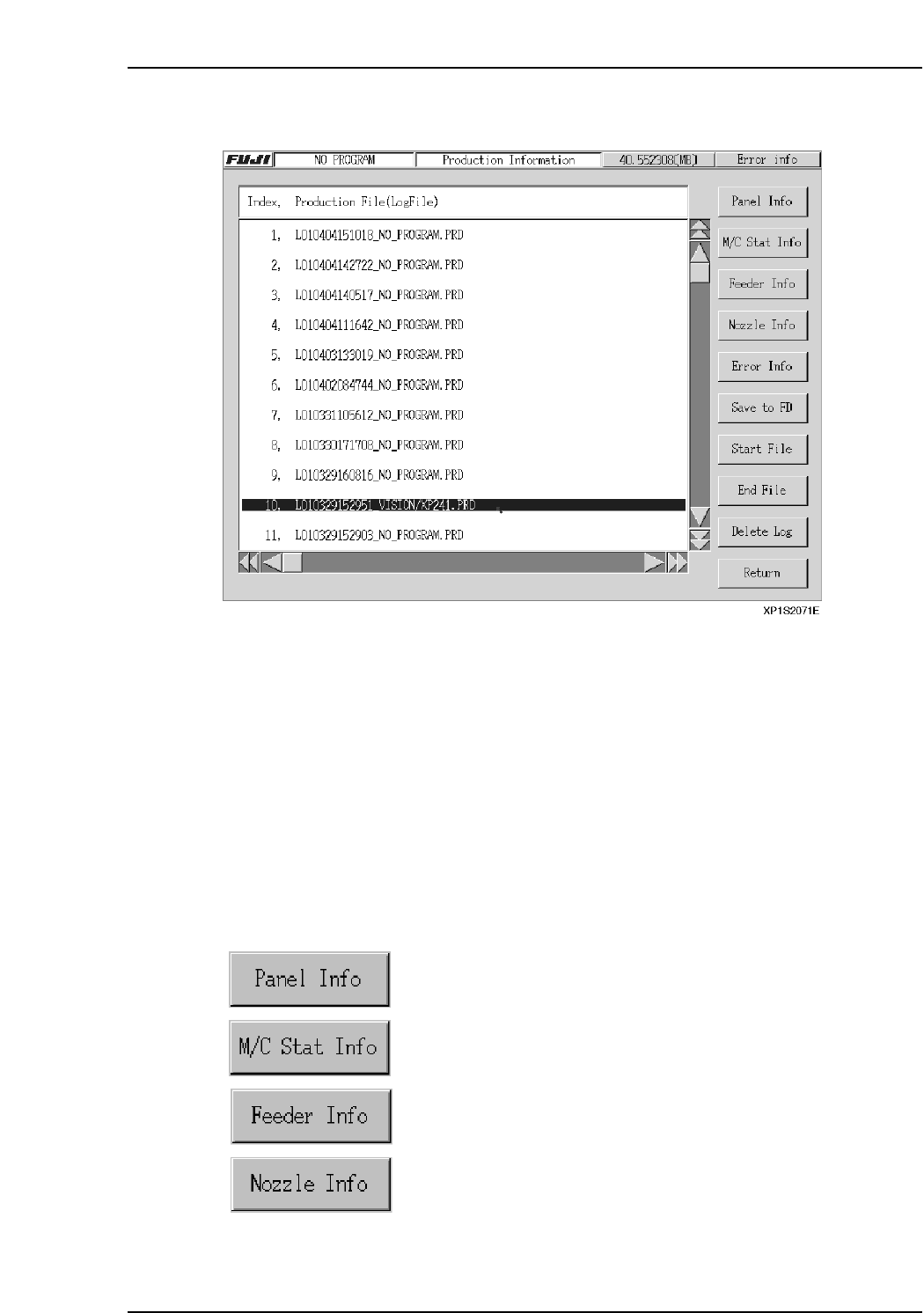

6.2.3 Log File Selection Screen
Data Explanation
All log files saved in the current/sd0/FUJI/USER/PRODUCT folder display on this
screen.
Use the [Select Start] and [Select End] buttons to select the log files to be processed, then
press one of the following buttons to proceed to the relevant screen (or dialog box): [Log
-> FD], [Panel Info], [M/C Stat Info], [Feeder Info], [Nozzle Info], or [Error Info].
To delete log files, click [Delete Log], then select the most recent (top-most) of the files to
be deleted. All log files which are older than the selected file are also selected and a
deletion dialog box displays. Click [OK] to delete all the selected files.
The top-most file displays current data which is updated even while displayed.
Moreover this file cannot be deleted. A production program is required in order to
display each screen's information.
Operation Button Explanations
Proceeds to the panel information screen (For the selected log file).
Proceeds to the machine status information screen (For the selected
log file).
Proceeds to the feeder information screen (For the selected log
file).
Proceeds to the nozzle information screen (for the selected log file).
