Part 2 Chapter 2 Settings Prior to Start Production

Edition 2.0 2-2-12 XP-142E System Reference

3. Changeover

3.1 Selecting a Production Program

(ESR0202i)

Production programs can be stored at the CPU board, on the machine’s hard disk, on a

floppy disk, or at the host computer. In order to use a stored program in production, an

“active” status (at CPU board memory) must be specified for that program. The name of

the program which is currently active displays on the task bar at the top of the screen.

3.1.1 Selecting a Production Program From the [Production]

Screen

Procedure

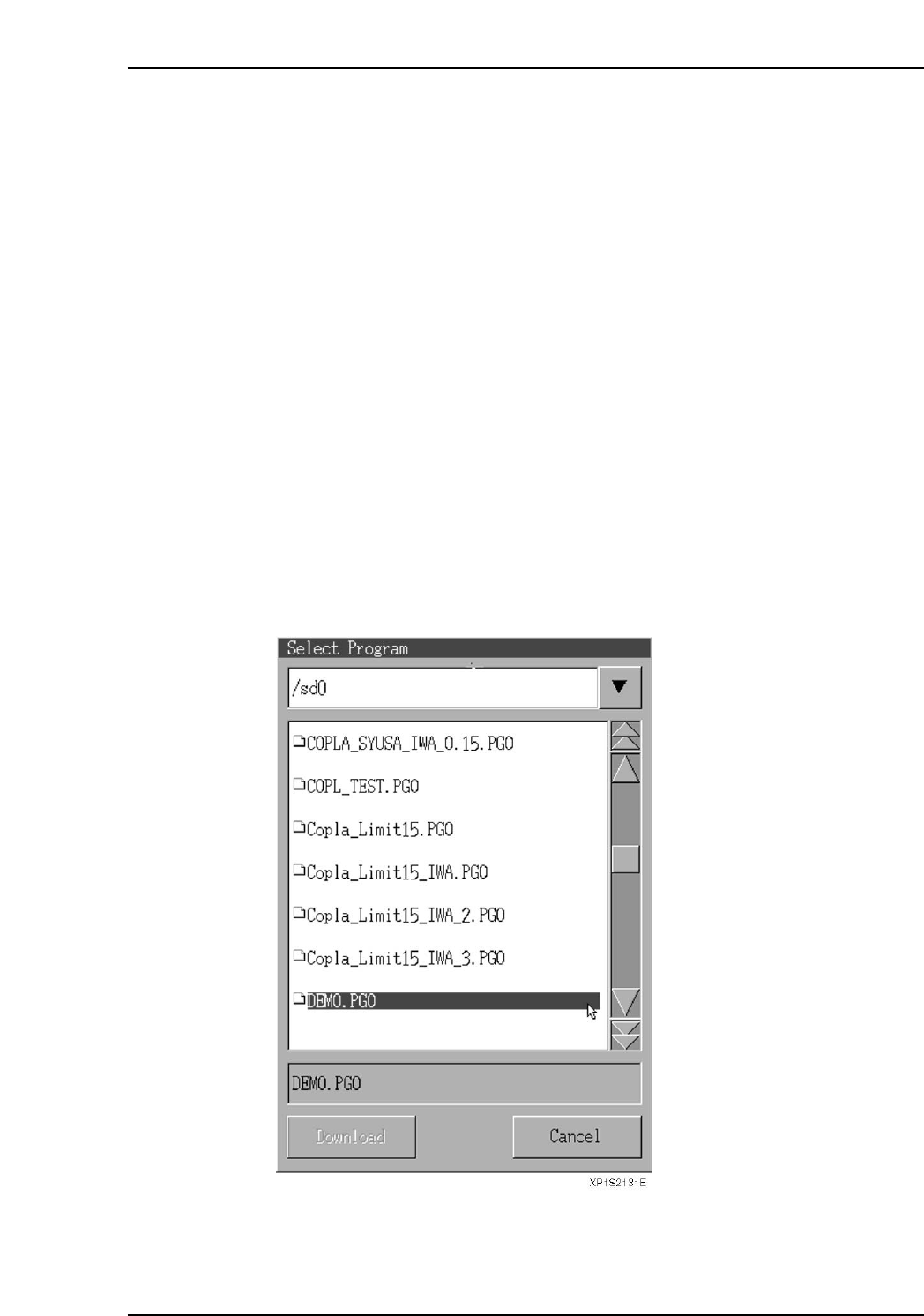

1. At the [Main] screen, press [Production] then [Program Select] to display a dialog

box showing a list of programs which are stored in the machine’s hard disk or on a

floppy disk.

Note: CCIMF format files created for FCP6(M), CP642(M), CP643(M), and XP-141E / XP-

142E machines can be read from a floppy disk. Because the XP-142E has only two

MFU units (100 slots / 8 mm tape width conversion), feeder setup data which

exceeds this capacity must not be used.

2. Select the desired production program from the list, then press the [Download]

button to load that program. The name of the loaded program displays on the

taskbar at the top of the screen, indicating that this program is now active.

Part 2 Chapter 3 Changeover

Edition 2.0 2-3-1 XP-142E System Reference

Part 2 Chapter 3 Changeover

Edition 2.0 2-3-2 XP-142E System Reference

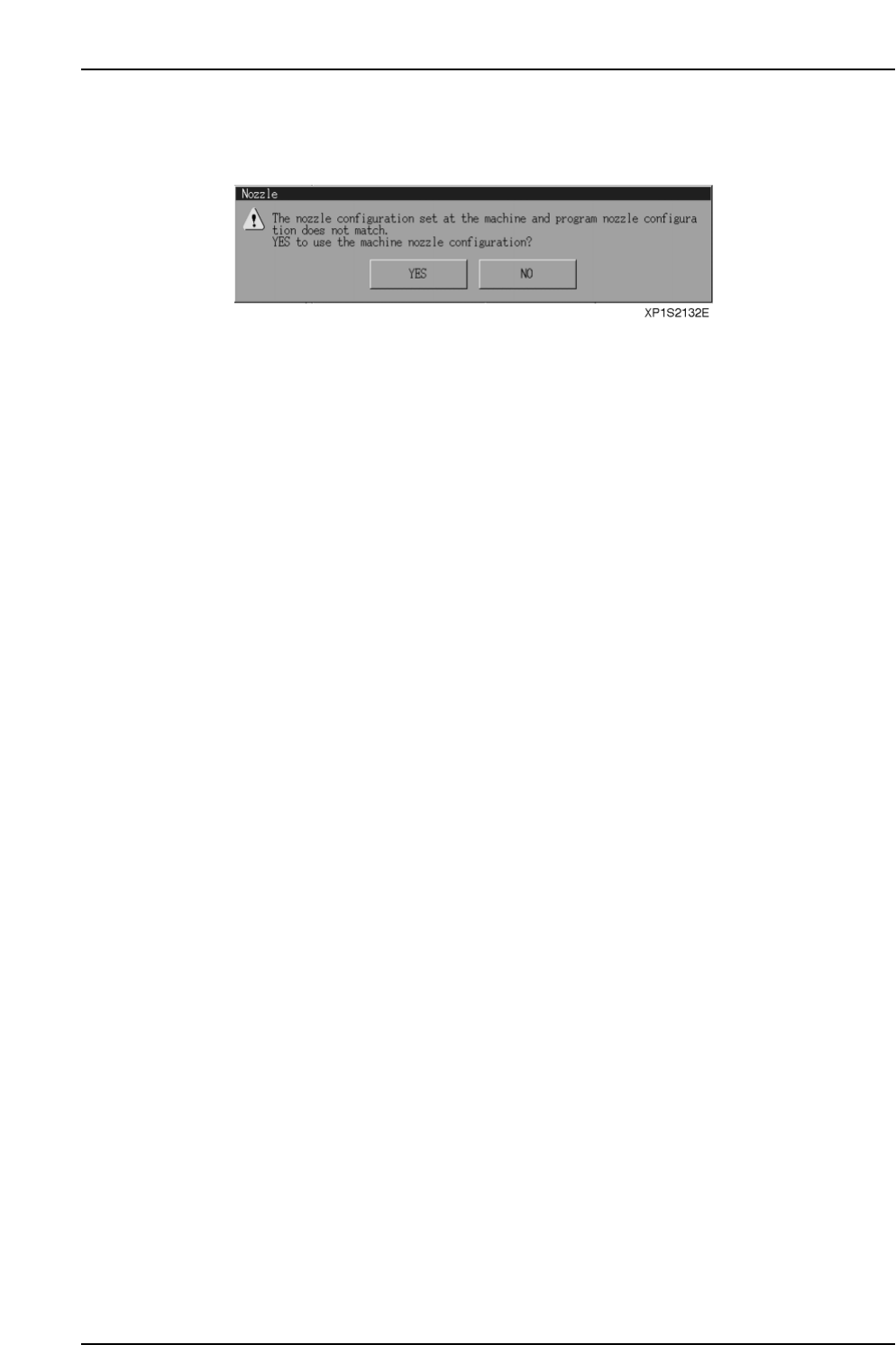

If the nozzles mounted on the machine are different from those specified by the program,

a dialog box displays, inquiring if the mounted nozzles are to be used in production.

If [Yes] is selected, “compile” processing is performed for the mounted nozzles, and an

error occurs if the required nozzles are not present.

If [No] is selected, the Nozzle Editor opens. Carry out the procedure described in the

“Nozzle Editor” section to change the nozzles. Press the [Nozzle Change Complete]

button when you have finished changing the nozzles. Select the production program

again.
