Part 2 Chapter 3 Changeover

Edition 2.0 2-3-2 XP-142E System Reference

If the nozzles mounted on the machine are different from those specified by the program,

a dialog box displays, inquiring if the mounted nozzles are to be used in production.

If [Yes] is selected, “compile” processing is performed for the mounted nozzles, and an

error occurs if the required nozzles are not present.

If [No] is selected, the Nozzle Editor opens. Carry out the procedure described in the

“Nozzle Editor” section to change the nozzles. Press the [Nozzle Change Complete]

button when you have finished changing the nozzles. Select the production program

again.

Part 2 Chapter 3 Changeover

Edition 2.0 2-3-3 XP-142E System Reference

3.1.2 Selecting a Production Program From the [Program] Screen

A program can also be loaded from the program menu.

Note: This program selection is to edit the program. To use the target program in production you

must select the program again using the [Production] command.

Procedure

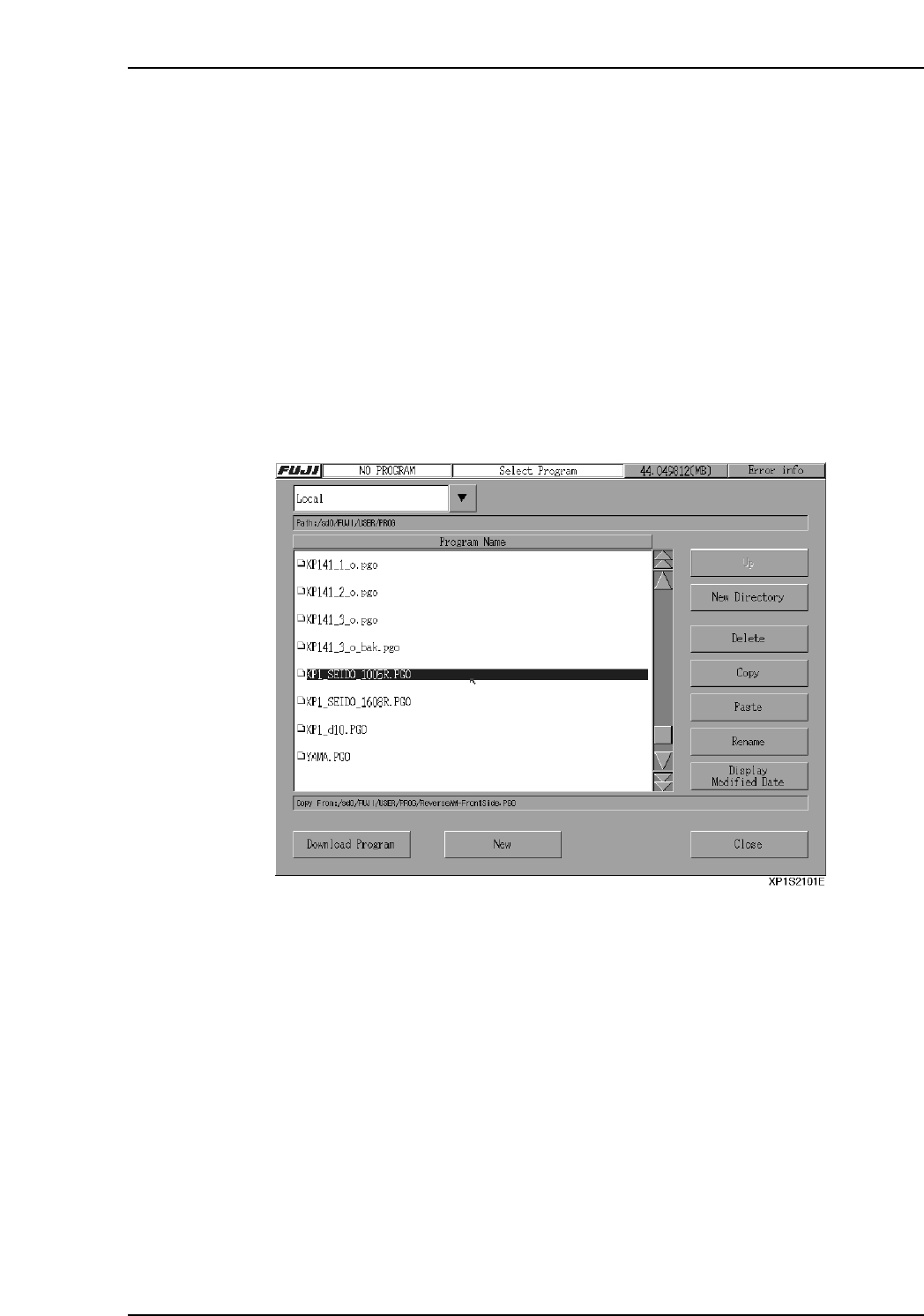

1. At the [Main] screen, press [Program] then [Program Select] to display a dialog

box showing a list of programs which are stored in the machine’s hard disk or on a

floppy disk.

2. Select the desired production program from the list, then press the [Download

Program] button to load that program. The name of the loaded program displays

on the taskbar at the top of the screen, indicating that this program is now active.

Note: CCIMF format files created for FCP6(M), CP642(M), CP643(M), and XP-141E / XP-142E

machines can be read from a floppy disk. Because the XP-142E has only two MFU units

(100 slots / 8 mm tape width conversion), feeder setup data which exceeds this capacity

must not be used.

Part 2 Chapter 3 Changeover

Edition 2.0 2-3-4 XP-142E System Reference

3.1.3 Receiving MCS-2 Programs

(ESR0227h)

The XP can receive production programs from an MCS-2 host system through an RS-

232C interface. The MCS-2 cable can be connected at the DATA PORT at the bottom

right of the rear of the machine.

Procedure

1. Prepare a CP-6(M), CP-642(M), or a CP-643(M) production program at the MCS-2

host.

The machine can be artificially recognized by the MCS-2 host as a CP-6(M),

CP-642(M), or a CP-643(M).

Note: Because the machine has only two MFU units (100 slots / 8 mm tape width

conversion), feeder setup data which exceeds this capacity must not be used. For

details regarding programming and line settings performed at the MCS-2 host, refer

to the manual dealing with that subject.

2. At the [Main] screen, press [Program] then [MCS-2 Program Download].

3. Transmit the production program from the MCS-2 host.

Data Compatibility

Certain data generated on MCS-2 is not compatible with the XP. When the incompatible

data listed below is transmitted, the values are input as 0. This data must be edited at the

machine for these programs to be used.

Data exists at MCS-2 but cannot be transmitted.

• Tape Width (TAPEWIDTH)

Data does not exist at MCS-2.

• Soft Pick speed (PENFCSPN)

Rear side of the XP-142E MCS-2

XP1S2172E
