6. If specification data by the same name already exists, an “overwrite confirmation”

dialog box displays. Press [Yes] to overwrite the data in the machine’s file. Press

[YES to ALL] to overwrite all subsequent data.

Press [No] to prevent overwriting of the file in question.

Press [NO to ALL] to prevent overwriting of all subsequent data.

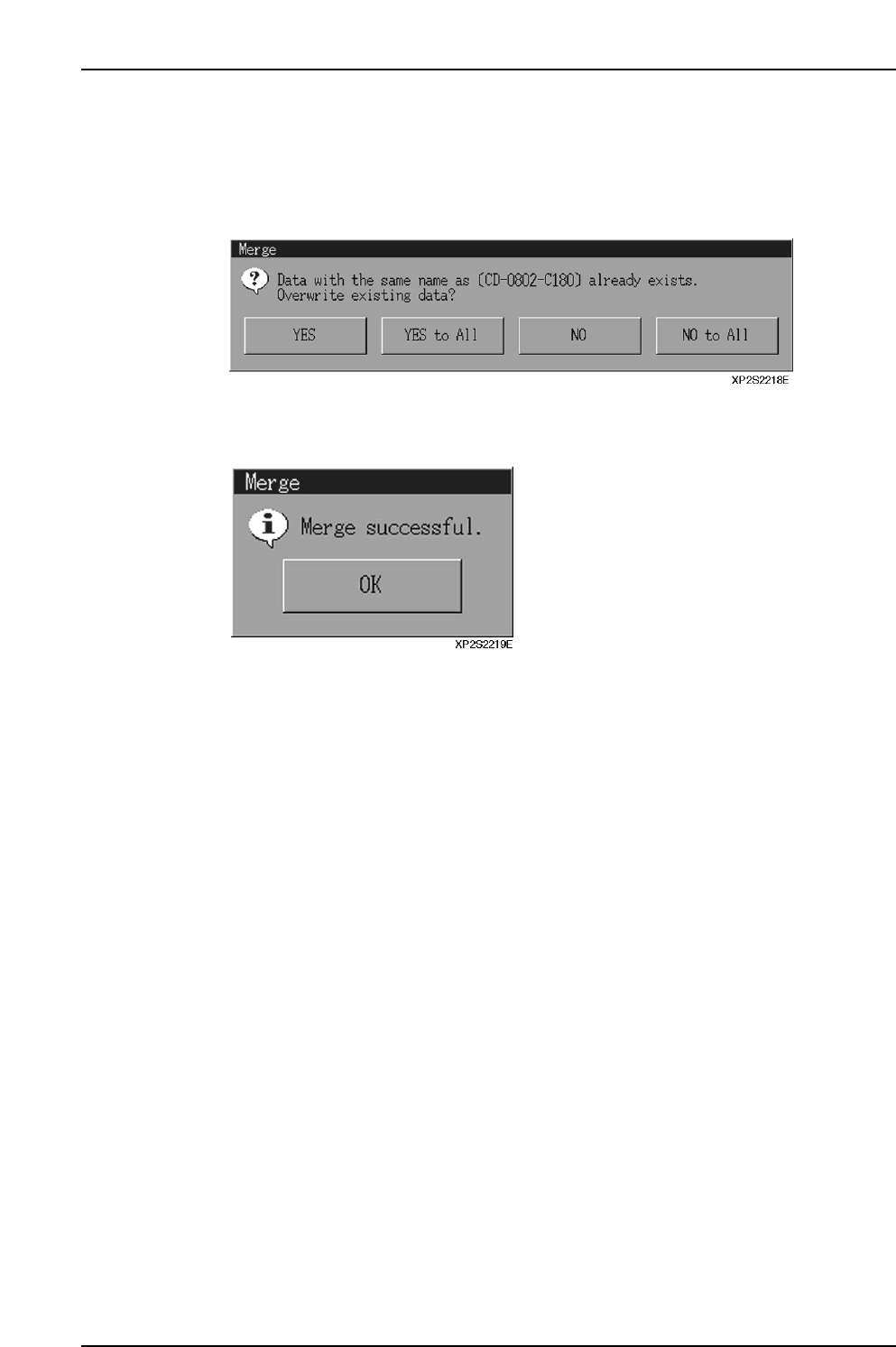

7. When the merge operation is completed, the dialog box shown below displays.

Press [OK] to return to the specification data administration dialog box.

Part 2 Chapter 7 Data Administration

Edition 2.0 2-7-8 XP-142E System Reference

7.3 File Operations

(ESR0712b)

This function is used to copy and delete files. Production programs and part data files

which were created on the machine can be copied to floppy disks, and unnecessary files

can be deleted. Moreover, files saved on floppies can be copied to the machine.

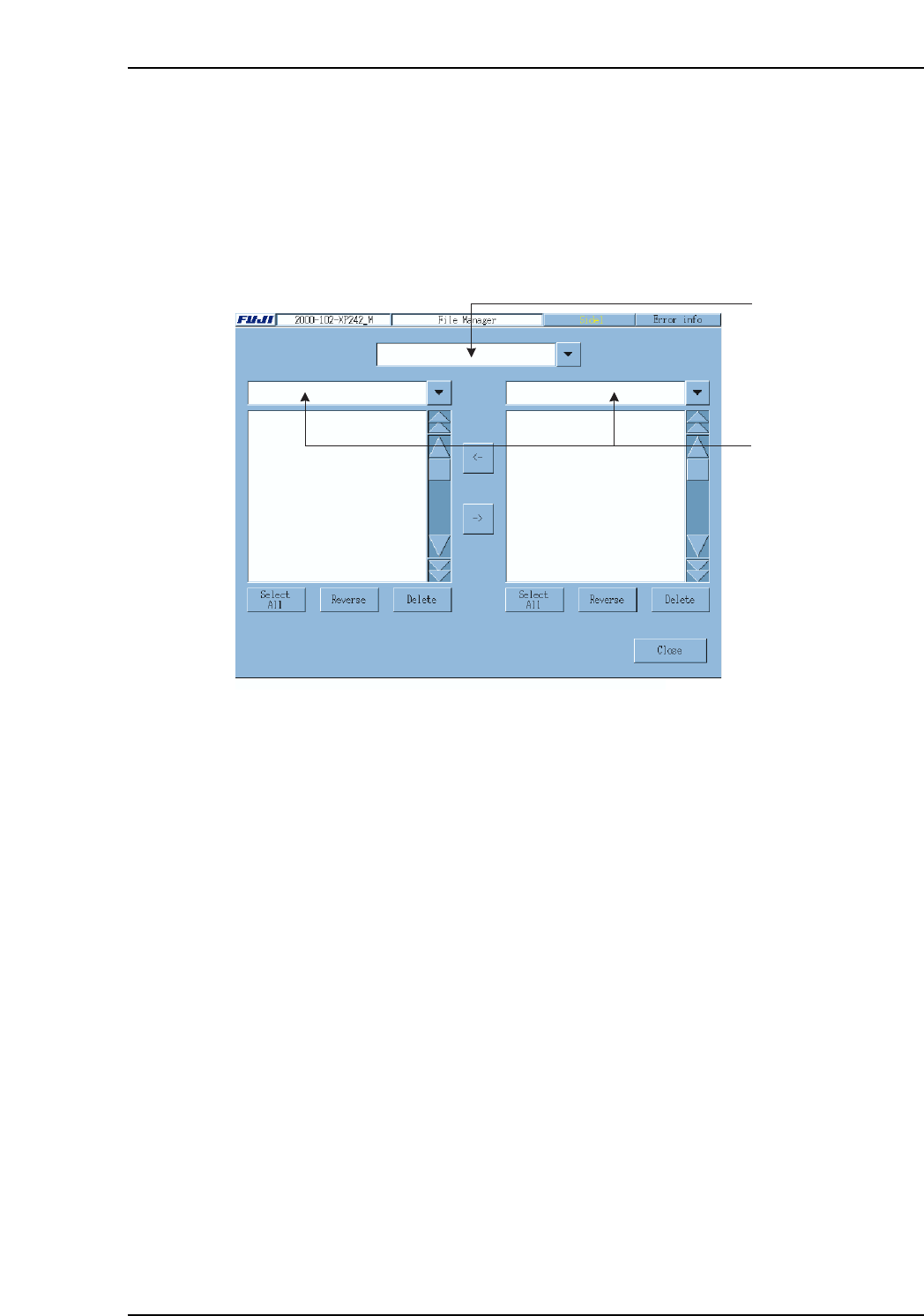

Selecting [Program], then [File Manager] to display the following screen.

Note: File overwriting will occur if a file already exists with the same name as that being copied.

Be sure to verify the file name before copying.

File Type Selection Combo Box

Select the required file type in this box. File type and extensions are described below.

Program (.PGO)

Production program file.

Part Number (.PDH)

Part Number file.

Part Type (.PDS)

Part Type file.

Packaging (.PDP)

Packaging file.

Fiducial Mark (.FMK)

Fiducial Mark file.

Board Skip Mark (.BMK)

Board Skip Mark file.

Label Mark (.LMK)

Label Mark file.

Template (.TPL)

Template file.


Image file for template.

Browse destination

combo box

File type selection

combo box

XP2S2214Ea

Part 2 Chapter 7 Data Administration

Edition 2.0 2-7-9 XP-142E System Reference

Browse Destination Combo Box

Use this box to select the file directory from the following options.

Local

Hard disk installed in the machine.

FDD

Floppy disk drive.

Operation Button Explanations

Use the file type selection combo box to specify the type of files you

would like to have listed.

Select the file browse location using the browse destination combo

box.

Press to select all the displayed file types.

Press to select (highlight) files which are not selected.

Press to delete a selected file.

Click these buttons to copy files in the direction of the arrow.

Part 2 Chapter 7 Data Administration
