7.3.1 Copying Files T o and From Floppy Disks Procedure 1. Insert the copy source floppy disk into the floppy disk drive. 2. Press [Program] then [File] to display the [File Manager] screen. 3. Select the [ ▼ ] button at…
Browse Destination Combo Box
Use this box to select the file directory from the following options.
Local
Hard disk installed in the machine.
FDD
Floppy disk drive.
Operation Button Explanations
Use the file type selection combo box to specify the type of files you
would like to have listed.
Select the file browse location using the browse destination combo
box.
Press to select all the displayed file types.
Press to select (highlight) files which are not selected.
Press to delete a selected file.
Click these buttons to copy files in the direction of the arrow.
Part 2 Chapter 7 Data Administration
Edition 2.0 2-7-10 XP-142E System Reference

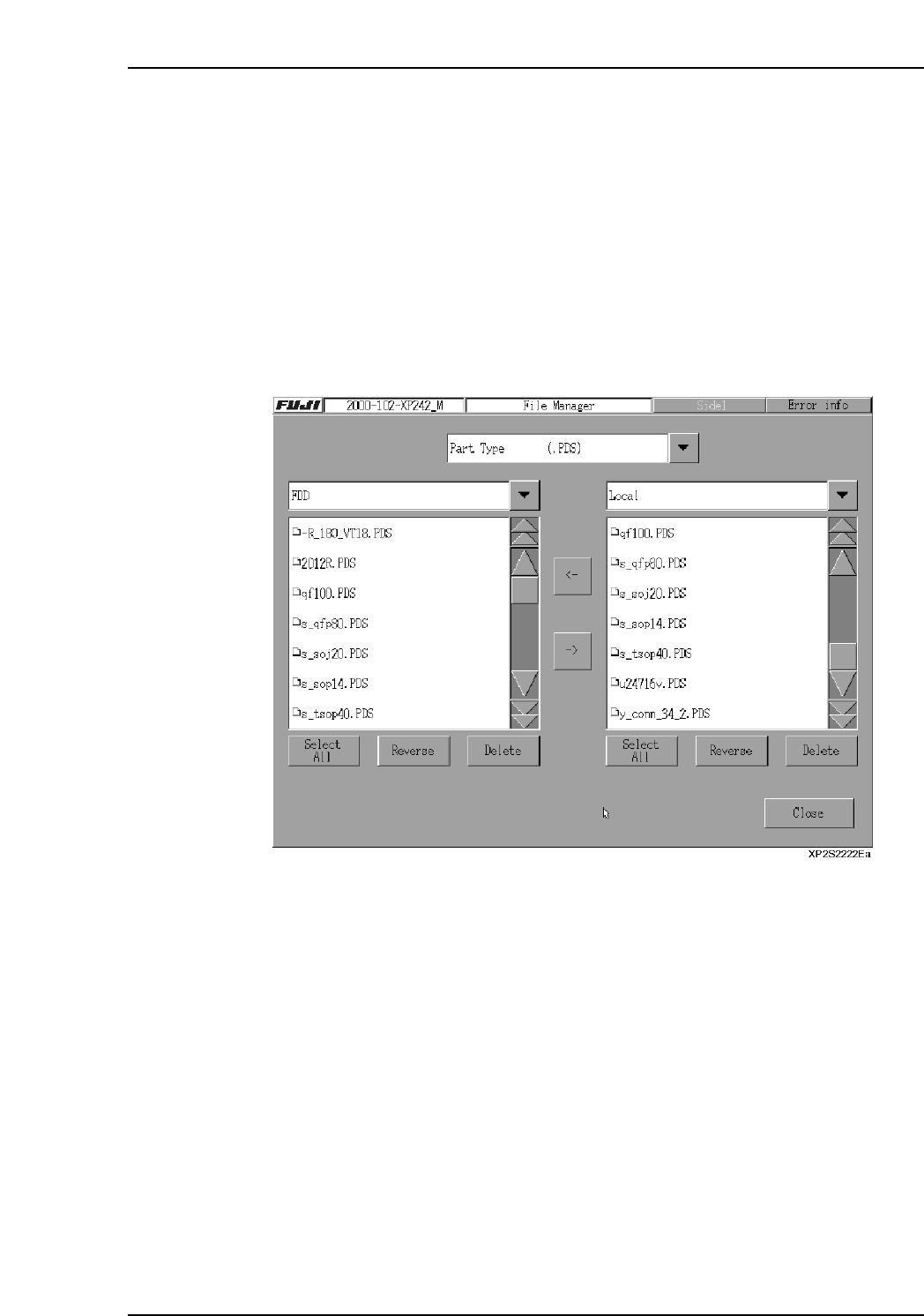

7.3.1 Copying Files To and From Floppy Disks
Procedure
1. Insert the copy source floppy disk into the floppy disk drive.
2. Press [Program] then [File] to display the [File Manager] screen.
3. Select the [▼] button at the top center of the screen to specify the type of file to be
copied.
4. Press the [▼] key at the left side, then select [FDD] from the displayed list.
“FDD” then displays in the left-side text box, and the names of files stored on the
floppy disk display in the left pane beneath the text box.
5. Select the [▼] button at the right of the screen to specify [Local] and the list of files
in the machine is displayed in the right column.
Part 2 Chapter 7 Data Administration
Edition 2.0 2-7-11 XP-142E System Reference

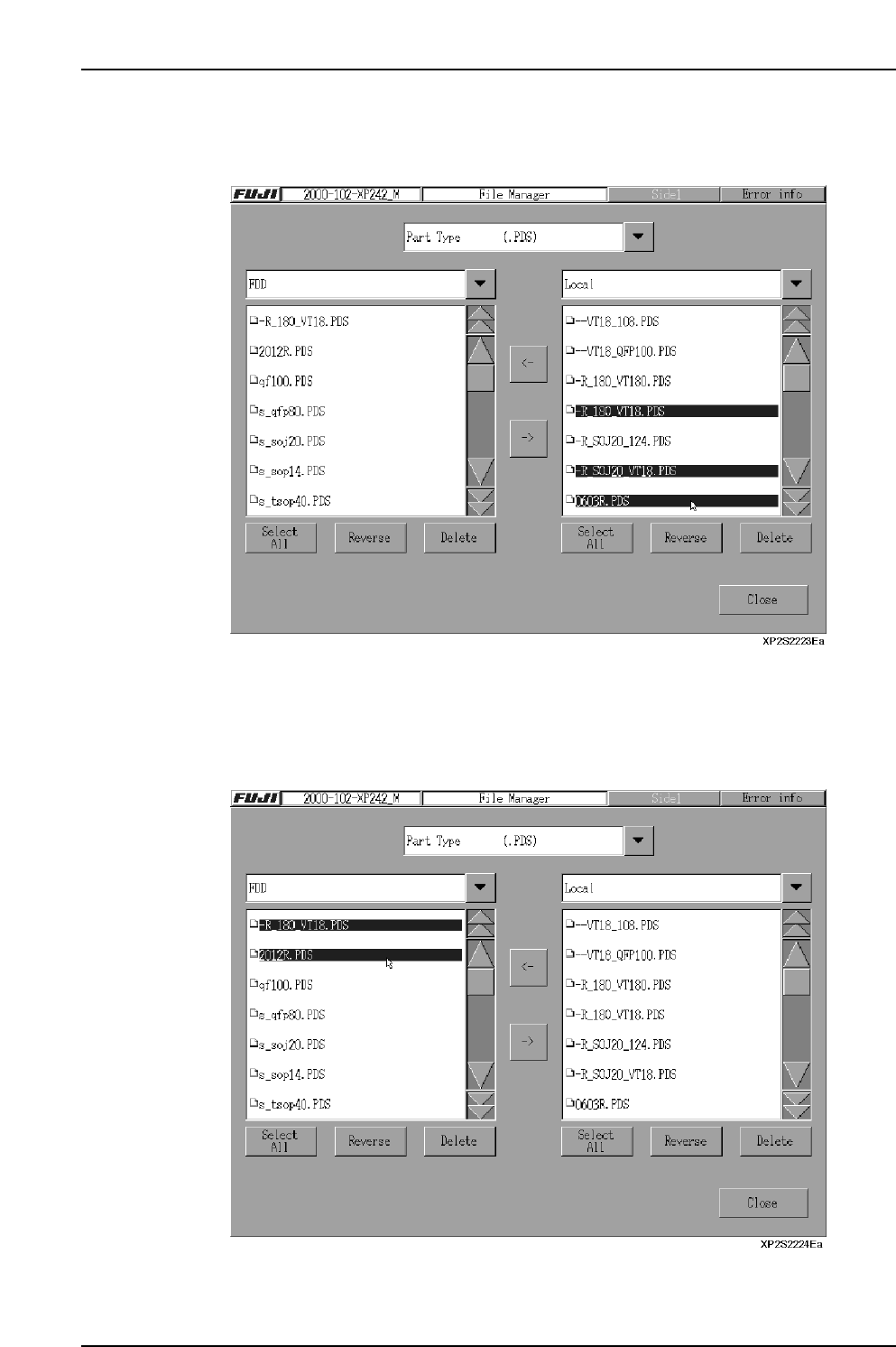

<Copying a Machine File to a Floppy Disk>
6. Select the file to be copied from the list in the right pane (more than one file may
be selected).
7. Press the [←] key to copy the selected file to the floppy disk. After verifying that
copying is completed, remove the floppy disk and press [Close].
<Copying a Floppy Disk File to the Machine>
6. Select the file to be copied from the list in the left pane (more than one file may be
selected).
7. Press the [→] key to copy the floppy disk to the machine file. After verifying that
copying is completed, remove the floppy disk and press [Close].
Part 2 Chapter 7 Data Administration
Edition 2.0 2-7-12 XP-142E System Reference
