8.3.2 Copying From the Application Disk

Procedure

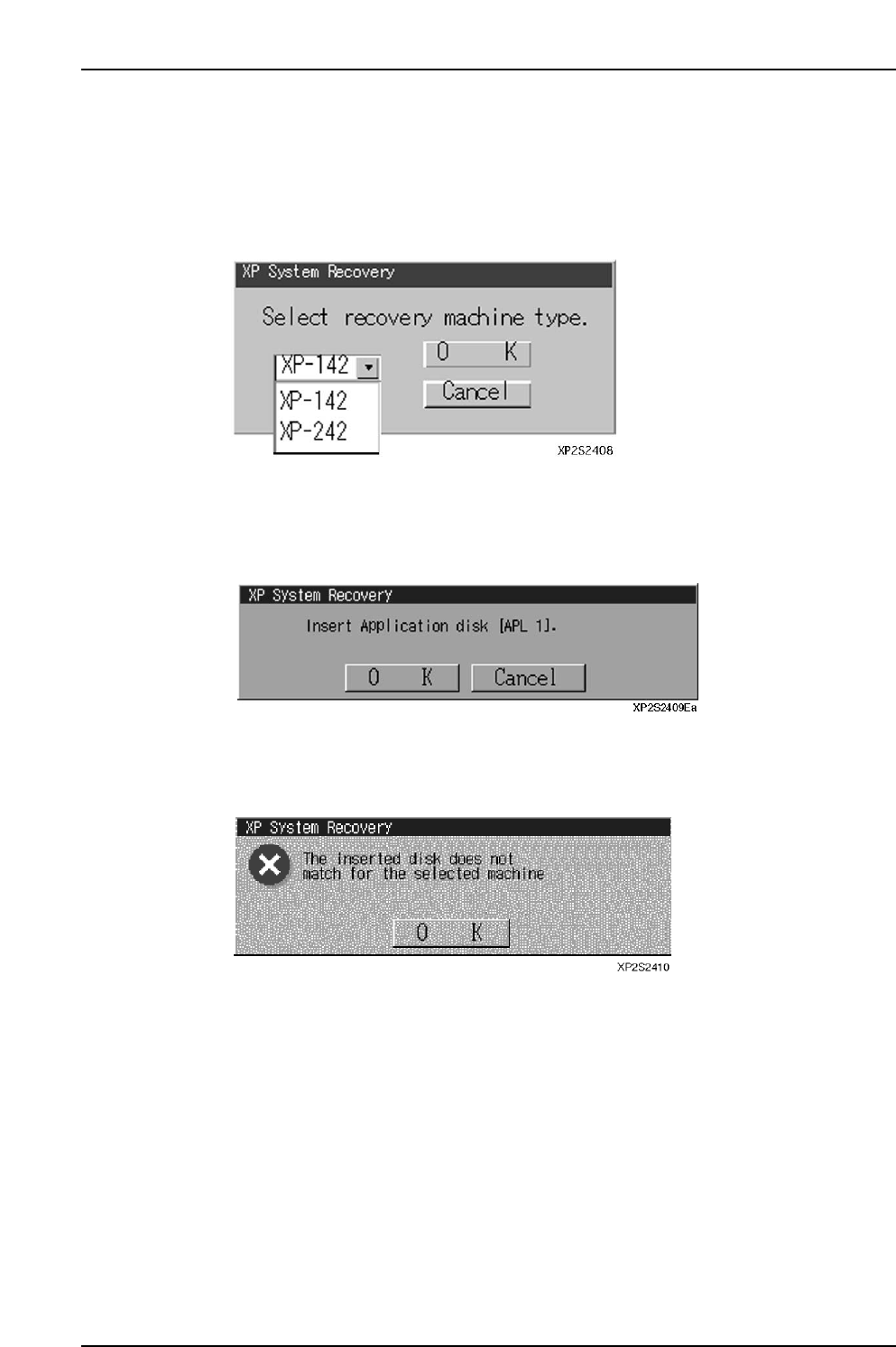

1. After formatting is completed (or skipped), the following dialog box displays

requesting the user to select the machine type where the recovery is to occur.

Select the appropriate machine type.

2. Press [OK] to display the following dialog box requesting the user to insert

application disk APL 1 in the floppy drive. To abort the recovery operation and

shut down the machine, press [Cancel].

3. If the wrong disk has been inserted (other than application disk APL 1), an error

message displays. The error dialog box shown below displays if an application

disk for another machine type has been inserted.

Part 2 Chapter 8 System Administration

Edition 2.0 2-8-8 XP-142E System Reference

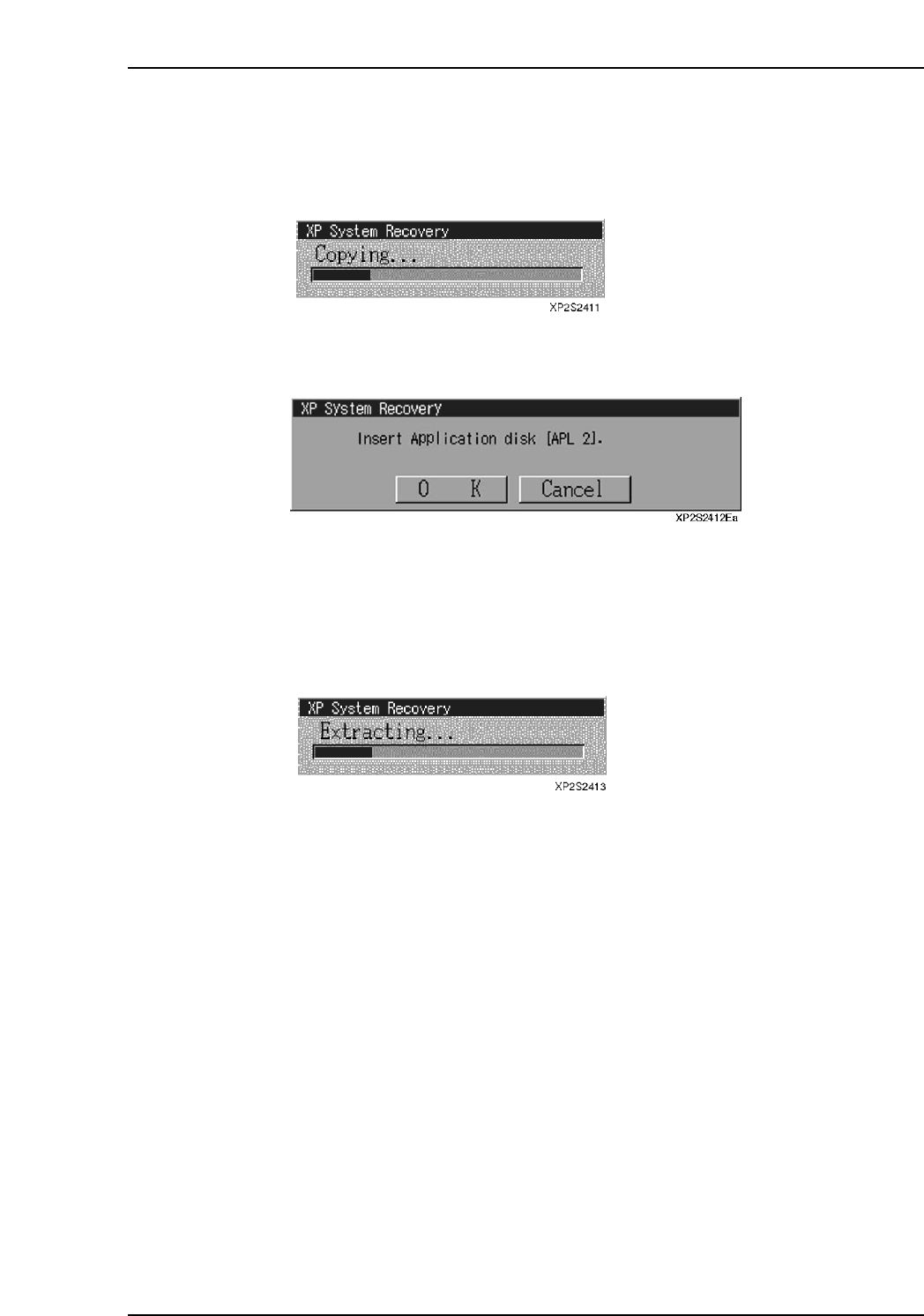

4. If the above error dialog box displays, press [OK] to display (for the second time)

the dialog box requesting the user to insert application disk APL 1 in the floppy

drive. Insert the correct disk, then press [OK]. The following progress dialog box

then displays, and file copying begins.

5. After APL 1 copying is completed, a dialog box displays requesting the user to

insert APL 2.

To abort the recovery operation and shut down the machine, press [Cancel]. If the

wrong disk has been inserted (other than application disk APL 2), an error

message displays. If the correct disk has been inserted, a progress dialog box

displays, and file copying begins. The same procedure is repeated for application

disk APL 3. After the disk 3 files have been copied, another progress dialog box

displays while the copied files are being processed.

6. After all the data has been processed, the remaining application disks are copied

in the same manner.

Part 2 Chapter 8 System Administration

Edition 2.0 2-8-9 XP-142E System Reference

8.3.3 System Backup Data Recovery

If a data backup has been performed on the XP machine, it is possible to restore the data

to the status which existed at the time the backup occurred. After all the copied files

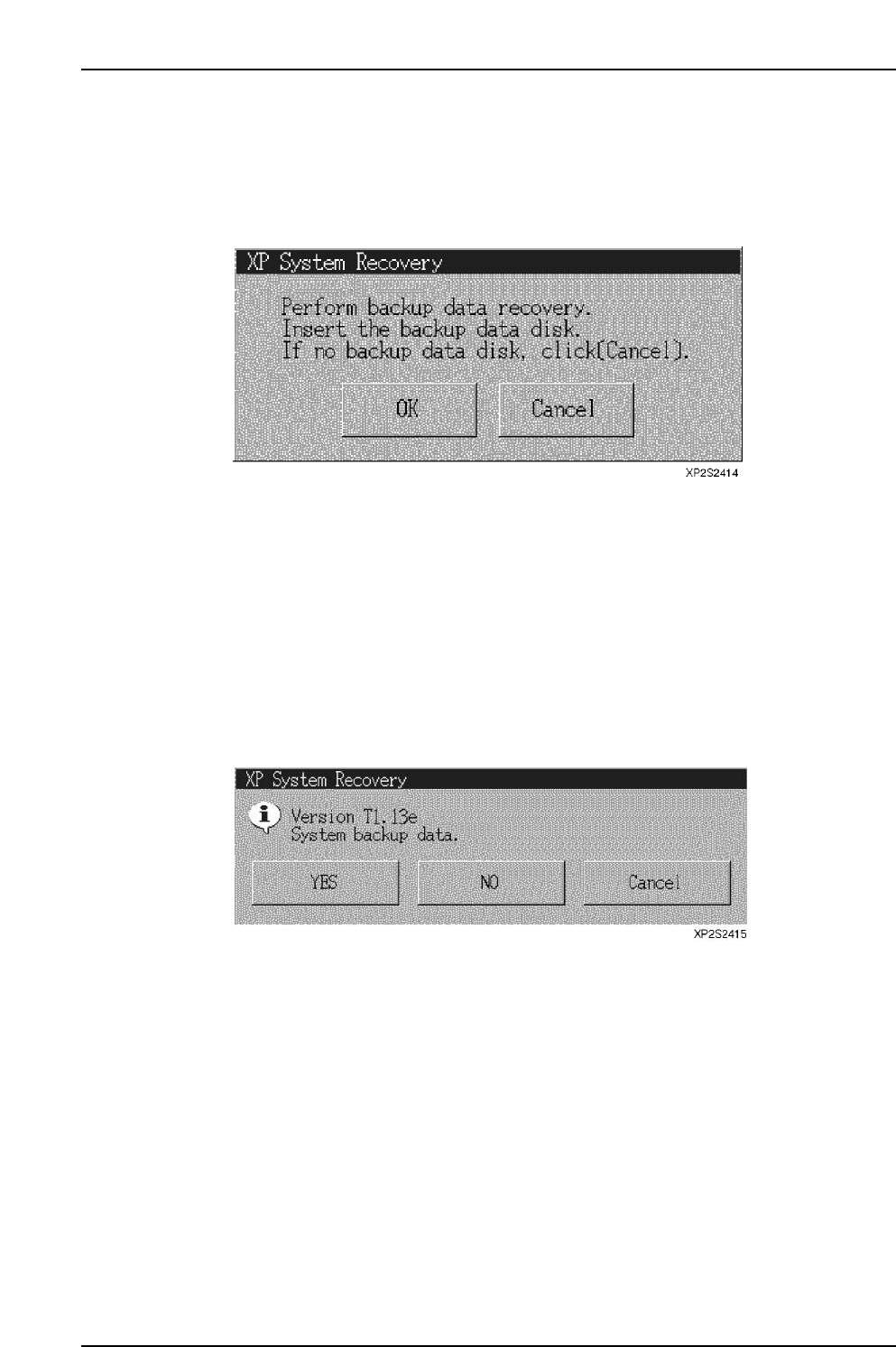

have been processed (see previous page), a dialog box displays to recover the system

backup data.

Procedure

1. Insert the “system backup data disk” in the floppy drive and press [OK] to copy

the backup data. If no backup data is available, press [Cancel] to skip this backup

data recovery step.

If the wrong user backup disk has been inserted, an error dialog box displays

when [OK] is pressed. An error message also displays if the inserted “system

backup data disk” is for a machine type other than that specified prior to copying

the application disks. If this error dialog box displays, press [OK] to return to the

"system backup data recovery" dialog box.

2. If the correct system backup data disk has been inserted, the following backup

data version dialog box displays when [OK] is pressed.

3. Press [Yes] to copy the user backup disk data and perform the recovery.

Press [No] to display a separate backup data recovery dialog box. To skip the

system backup data recovery step, press [Cancel].
