6.2.8 Error Information Screen

Data Explanation

The error count and error time are acquired from the event's "pT". However, less than 6

minutes is processed as a "stop", and 6 minutes or longer is processed as an "error".

Retry counts for vision processing, etc., are not included in this count.

If an error occurs and is followed by a another error, the entire time frame is allotted to

the original error unless it is canceled.

The count bit continues to register 1 count until the error bit is turned off.

Setting Item Explanations

Error Code

Displays the code for the error which occurred.

Count

Displays the error occurrence count.

Time

Displays the total time during which the error was in effect.

Displays the time consumed by each error code as a percentage of the total error time.

Error Message

Displays an error message for the error code in question.

Part 2 Chapter 6 Production Information Display

Edition 2.0 2-6-21 XP-142E System Reference

Operation Button Explanations

Proceeds to the panel information screen.

Proceeds to the machine status information screen.

Proceeds to the feeder information screen.

Proceeds to the nozzle information screen.

Proceeds to the error information screen.

Saves all the tabulated production information in the screen to a

floppy disk.

Closes this screen and returns to either the production information

display conditions setting screen, or the log file selection screen.

Part 2 Chapter 6 Production Information Display

Edition 2.0 2-6-22 XP-142E System Reference

7. Data Administration

7.1 System Data Backup and Recovery

(ESR0602a)

The system data can be backed up as a measure against system data crashes. Should

such a crash occur, the backed up system data can be used to perform a recovery.

• Proper data

• Language settings

• Vision processing data

• Calibration data

• User account information

• Touch panel calibration data

• Matrix compensation data

• Nozzle compensation data

• Device compensation data

• System data such as a specification data

Note: It is not possible to back up production programs, part data, or templates which created by

the user.

Procedure

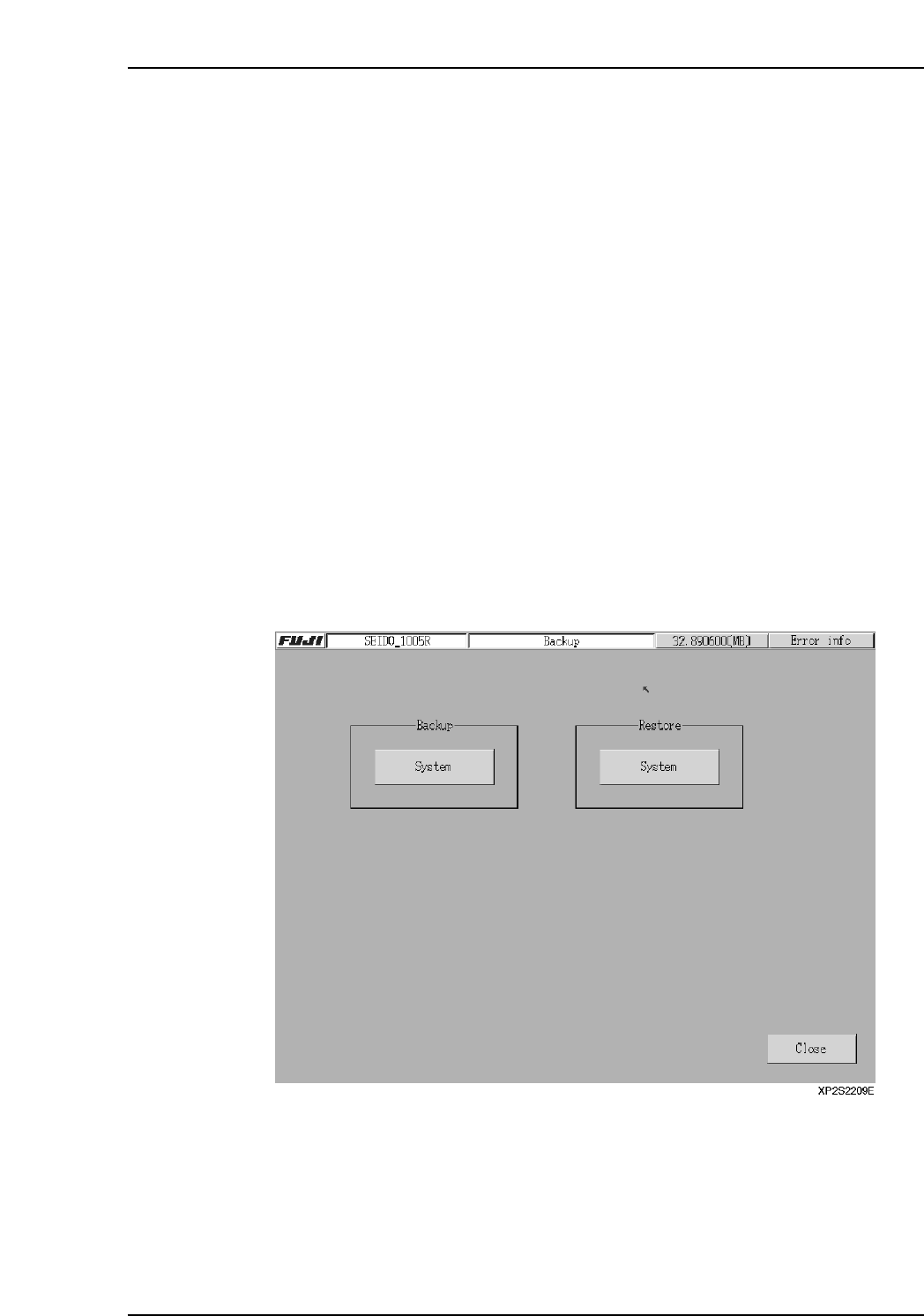

1. At the [Main] screen, select [Maintenance B] then [Backup] to display the [Backup]

screen.

2. To create a backup system file, insert a floppy disk into the floppy disk drive, then

press [System] at the “Backup” side.

3. To perform a recovery, insert the floppy disk containing the backup system file,

then press [System] at the “Recovery” side.

Note: After restoring the system, turn off the main machine power and restart the machine. Do not

shut down the machine.
