4 − 20
When you open the Program Editing utility with “Yes” selected in the “Prompt to”
column, the basic setup screen opens when you select the [Create new] command
to create a new file. When you are to edit the saved new file, this file is
automatically read into the machine at start up of the Program Editing utility, then the
“Dimension” window opens.
The settings made on the “Environment setting” dialog box are automatically saved
regardless of the “Prompt to” setting.
Division
This menu items sets the display order of the divided Placement data.
Prompt to optimization on exit
• When you select “Yes”: the system displays the message that asks you to
optimize data if you have not optimized it.
• When you select “No”: the system performs the normal quit process.
Database file
This menu item specifies the file name of a database file to be used, and specifies
whether to use the specified database file when a production program is edited.
As a Component database file name, specify the full path name including a drive
name. The extension of the file name is fixed to “.MDB”. Even though you specify
another extension, it is replaced with “.MDB”.
To specify whether to use the specified Component database file to edit a production
program, check or uncheck the check box “Used”. When checked, it invokes the
specified Component database file when a program is created. As the default
setting, the check box is not checked. To use the Component database file to edit
a production program, check this check box. When you click the <Refer to> button,
the dialog box appears on the screen.
Note If you use a database file of another personal computer via the network, you
may be requested to enter the password. If you do not enter the correct
password in this case, you cannot access the database file.

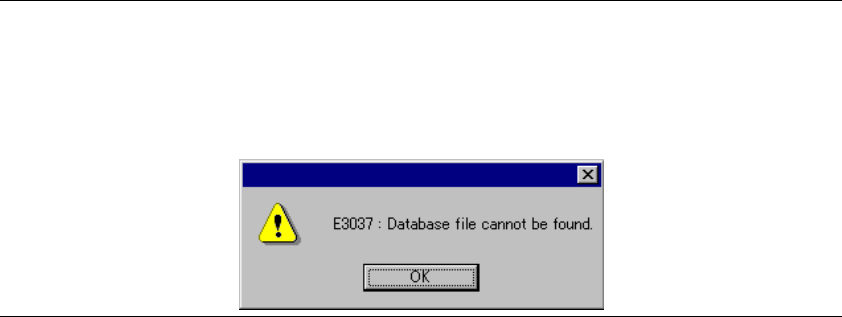

If the following message appears on the screen at start-up of the Program
Editor, check to see if there is any database file or if you can access a
database file.
Default nozzle selection
When creating Component data on the No. 500 nozzle, the system prompts you to
select which No. nozzle is to be set, No. 500 or No. 502/503 as the default nozzle.
Notification of database entry completion
Specify whether to notify of completion of database entry or not.
“No” is selected by default.
4 − 21
4.2.8 Exit
This command exits from the Program Editing utility.

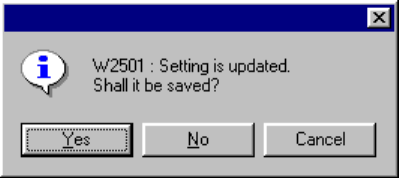

If a program is edited and not saved, the following dialog box appears on the
screen.
Yes: Saves a program. After saving, the machine exits from the Program
Editing utility.
No: Exits from the Program Editing utility without saving a program.
Cancel: Terminates the Exit process.
4 − 22
4.3 Editing

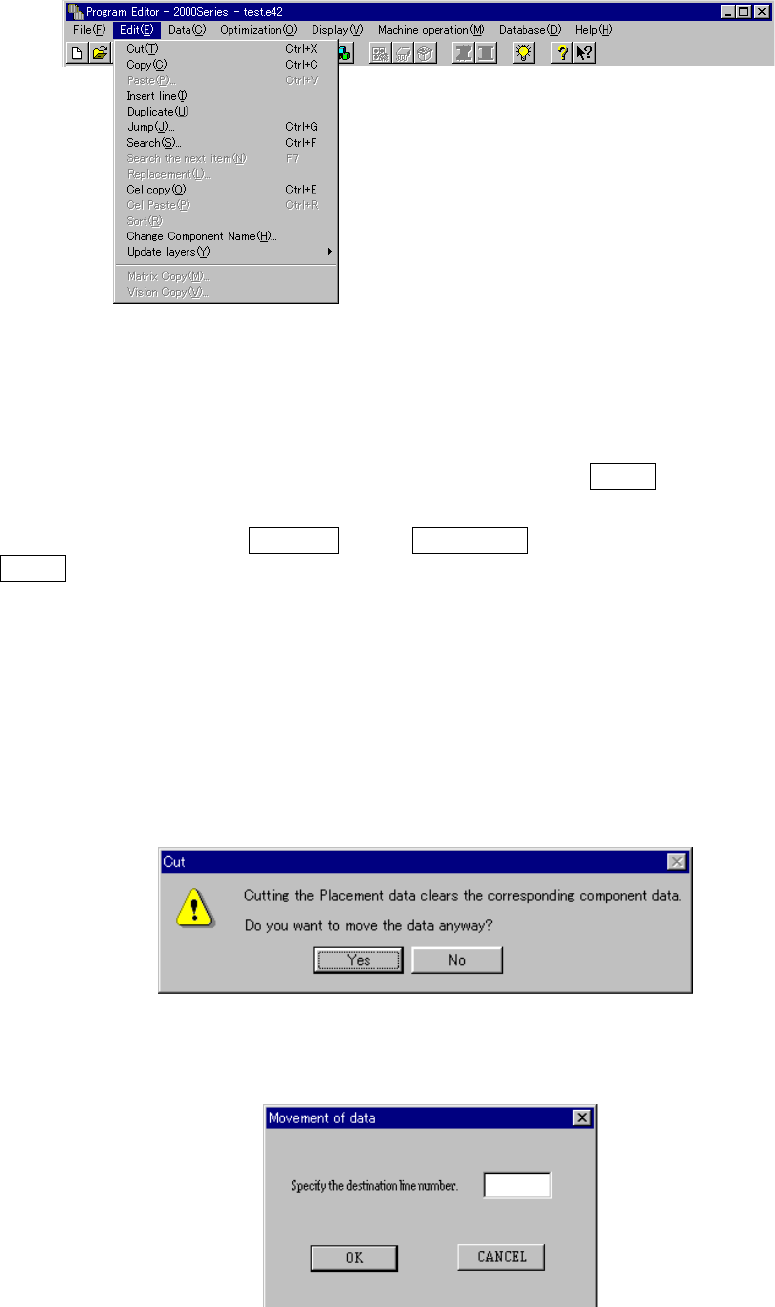

When you select the [Edit] command on the menu bar, the following commands menu
appears on the screen.
Selecting the range of data
To cut or copy data, select the data range to be copied or cut in advance.
When you drag the trackball, the lines to be selected are highlighted.
When you press the up or down arrow key while holding the SHIFT key of a keyboard,
the lines to be selected are highlighted.
Every time you press the Page UP key or Page Down key while holding down the
SHIFT key, a page (lines displayed on the screen) is selected one by one
sequentially.
4.3.1 Cut
This command deletes one line or multiple lines already selected. After deleting a
line or lines, lines after the deleted line(s) are scrolled up and displayed automatically.
If any line is not selected, you cannot select this command.
When you select all of placement data associated with the certain component data,
and select this [Cut] command, the following inquiry message appears on the screen.
4.3.1.1 When you select the <YES> button
The dialog box appears that allows you to specify the destination line number as
shown below.
