11 − 16
− When you check this check box, the system performs the component
picking-up and tracking operation before retry operation. At the same
time, the combo box for the feeder to be used for picking up and tracking a
component becomes active, and you can select one of the following
choices (“a.” is selected as the default):
a. Only feeders that ran out of components
b. All feeders that ran out or had errors.
c. All feeders on which the same type of components are set as
those of the error feeder
− When you check this check box, the system performs the component
picking-up and tracking operation before retry operation. At the same
time, the combo box for the feeder to be used for picking up and tracking a
component becomes active, and you can select one of the following
choices (“a.” is selected as the default):
Notes:
-
When you enable the “Non-stop operation” on the “Use Unit” tab, the
following items are automatically disabled, and you cannot select them:
①
Stop system when components run out.
②
Stop system on any error.
③
Re-measure pick height when components run out.
④
The verification inspection is done on restart component run out.
-
When you disable the “Non-stop operation” again, all of the settings on
this dialog box are returned to the original settings again.
When you validate the selected item(s), click the <OK> button. If you do not want to
set any option, click the <CANCEL> button.
11 − 17
11.4.6 Setting the Production (Check) option
When you select the [Options] command on the menu bar, then [Option Setting]
command on the Options menu, the Operation option setting dialog box appears on
the screen.
When you select the <Production (Check)> tag, the Production (Check) option setting
screen appears as shown in Figure 11.4.6.
(You can select this tag only when using a KE-2020/2040.)

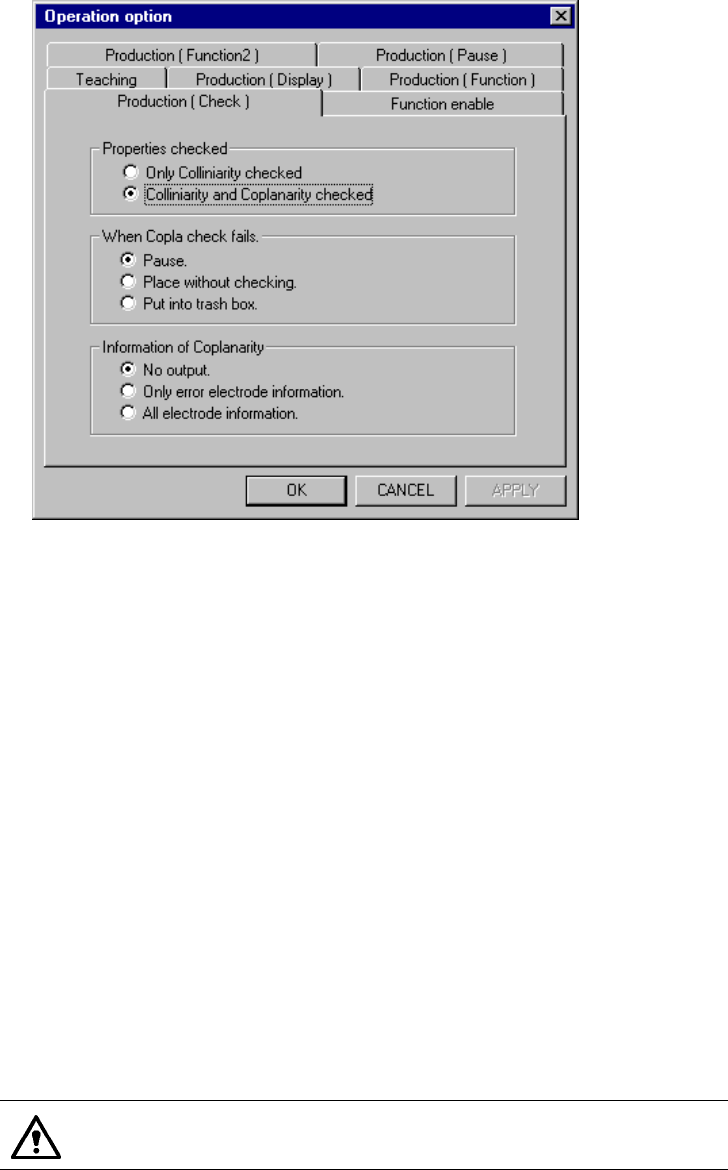

Figure 11.4.6 Production (Check) option setting screen
(Display example: KE-2020 screen)
(1) How to set the item
① Properties checked
− Only Colinearity checked
− Colinearity and Coplanarity checked
Check the corresponding radio button to perform the desired check.
② When Copla check fails
− Pause: the system pauses.
− Place without checking: the system places a component on a board
without checking it.
− Put into trash box: the system discards a component into a trash box.
Check the corresponding radio button to select the operation to be
performed when the system cannot perform the selected check.
Only when you check the radio button “Pause”, it allows you to set
the menu item “Information of Coplanarity”.
11 − 18
③ Information of Coplanarity
− No output
− Only error electrode information
− All electrode information
Check the corresponding radio button to output the desired information.
When you validate the selected item(S), click the <OK> button. If you do not want to
set any option, click the <CANCEL> button.
