6.3.4 Printing the Retry List
When you select the [File] command on the menu bar, the [Print] command on the
displayed menu, and the [Retry List] command after PWB production, the retry list
printing dialog box appears on the screen.
− Select the data to be printed with checking either of the “Output Type” radio
buttons.
− If the retry list cannot be displayed, you cannot select the [Print] command on the
[File] menu.

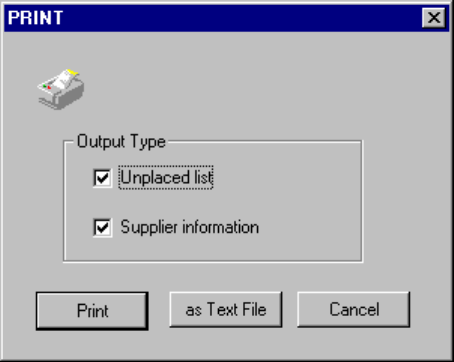

Figure 6.3.4 Retry list printing dialog box
When you click the <Print> button, the system starts printing the specified data.
When you click the <as Text File> button, the “File Save” dialog box appears on
the screen. Specify the path and file name, then click the <Save> button. The
specified data is output as a text file.
When you click the <Cancel> button, the display returns to the screen displayed
before you selected the [Print] command.
6 − 61
6.4 Operation during Board Production
6.4.1 Run-out of components stock
When one of the following events (indicating a runout of components stock) occurs,
take the actions stated below.
(1) Occurrence of a Runout-of-Components-Stock event
① If a retry over error occurs when the machine picks up a component from a
tape feeder or stick feeder
(2) Machine’s action for run-out of components stock
① Blinks the signal lamp in yellow.
② Continues processing.
Places another type of components that can be placed.
Uses an alternate feeder (if available) in the next and later pickup and
placement cycles. However, when the "Stop the system when components
runout" operational option is selected, the machine immediately stops,
displays a dialog box shown below, and waits for a user's input.
When you check the operation option "Stop the system when components
run-out" and the machine pauses, the dialog box shown in Figure 6.4.1.1
appears on the screen.

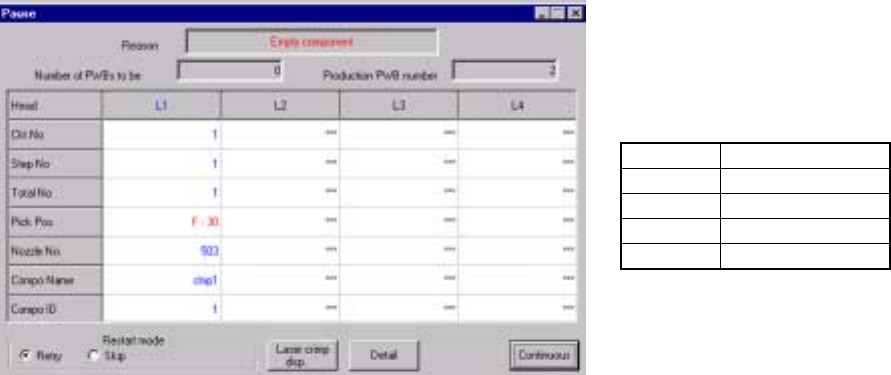

Figure 6.4.1.1 Empty component dialog box
(Screen example when you use a KE-2020)
Pressing the <START> switch on the operation panel restarts the production.
Pressing the <STOP> switch puts the production temporarily in halt with the
temporarily halt dialog box displayed.
When "The height of component is measured on restart component run out"
operational option is selected, the system resumes production after it
measures the height of a chip or MELF which runs out.
If the system fails to measure the height, the dialog box shown in Figure
6.4.1.2 appears on the screen.
• The actually displayed names
under the caption “Head” vary
depending on the model you use.
Model
Head name
KE-2010
L1 to L4
KE-2020
L1 to L4, R1
KE-2030
L1 to L4, R1 to R4
KE-2040
L1, R1
6 − 62

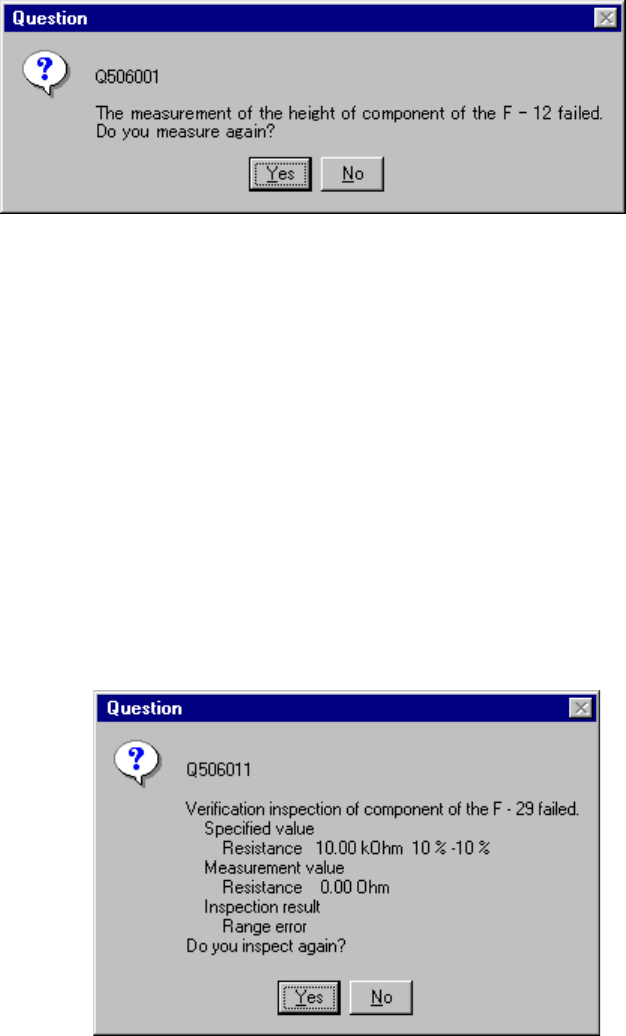

Figure 6.4.1.2 "Question" dialog box
• When you click the <Yes> button, the system remeasures a component fed by a
feeder which failed to be measured.
• When you click the <No> button, the system measures the height of a component
fed by the next feeder whose stocked components run out, or tries to restart
production.
− In the same manner, when you check the check box “The verification inspection is
done on restart component run out.” on the Production (Pause) tab invoked from
the Operation option dialog box, the machine restarts production after performing
verification check for a chip or MELF component that runs out.
− If the machine fails to perform a verification check, the dialog box shown in
Figure 6.4.1.2.1 appears on the screen.
Figure 6.4.1.2.1 Question dialog box
• When you click the <Yes> button, the system re-checks components of a feeder
that failed to be checked.
• When you click the <No> button, the system performs a verification check for
components fed by the next feeder whose stocked components run out, or tries to
restart production.
