10 − 9
(1) Setting items
No. Item Description
1 Rotation center of noz Rotation center of the nozzle detected with the laser
(2) How to set
− Follow the instructions displayed on the screen to set the head selected in the
“Select Head” combo box.
− When you click the <OK> button, your setting becomes valid (but not be
saved at this point).
− When you click the <CANCEL> button, your setting becomes invalid.

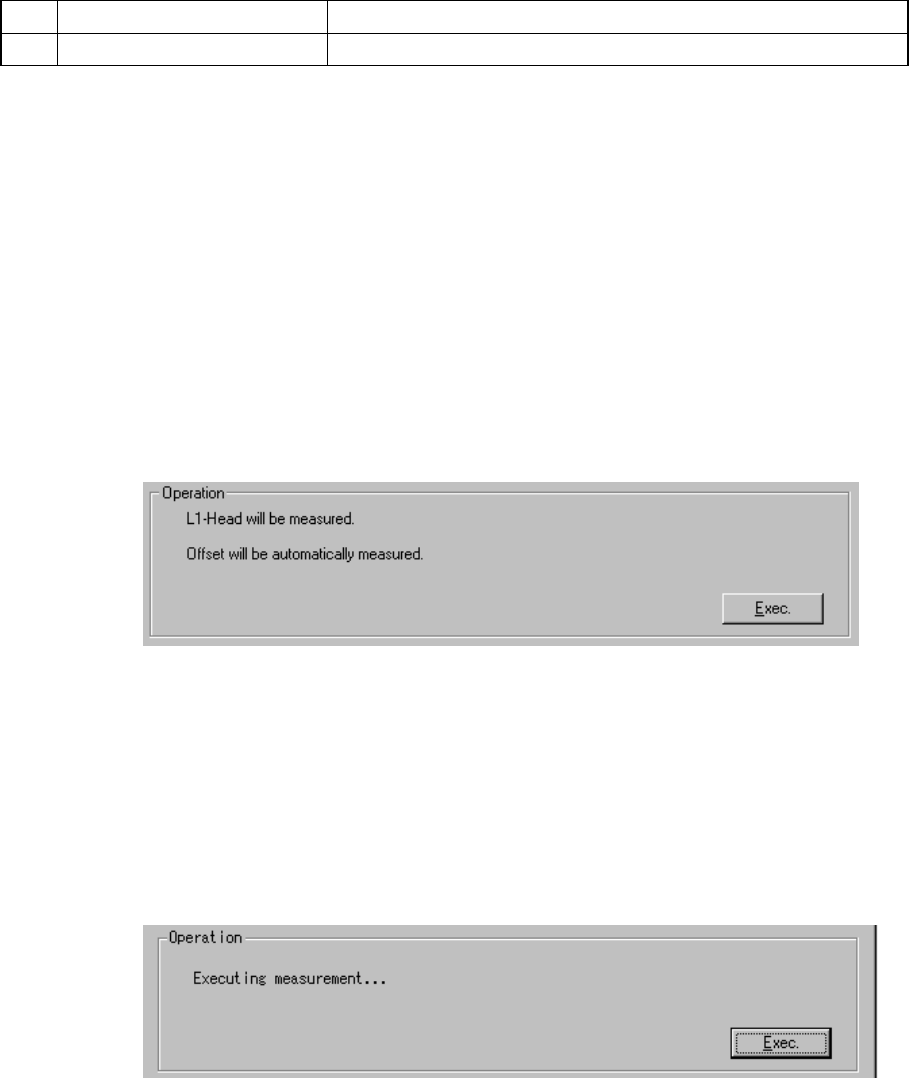

− How to operate
Follow the instructions displayed to obtain the appropriate value automatically.
(When the left 1 head is selected)
The head selected in the “Select Head” combo box is to be set.
Click the <Exec.> button.
When you click the <Exec.> button, the selected head moves along the theta
axis in from 0 to 15-degree units 24 times repeatedly to obtain the average
value.
10 − 10
− Measurement operation
① The system measures the nozzle rotation center with laser.
(When the left 1 head is selected)

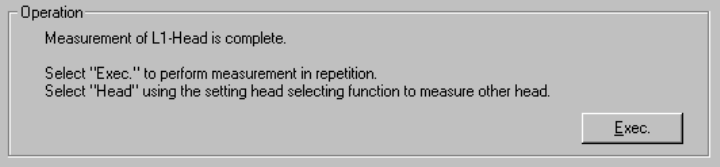

The machine has finished measurement operation.
To repeat the measurement operation, select the <Exec.> button.
When you select the <Exec.> button, the previous screen reappears.
To measure another head, select the head in the “Select Head” combo box.
When you change the selected head in the combo box, the initial screen
appears.
To quit this operation, select the <OK> button.
10 − 11
10.5 Head Offset
When you select the [Set-up group] command on the menu bar, then the [Head
offset] command on the displayed menu, the following the “Head offset” dialog box
appears on the screen.

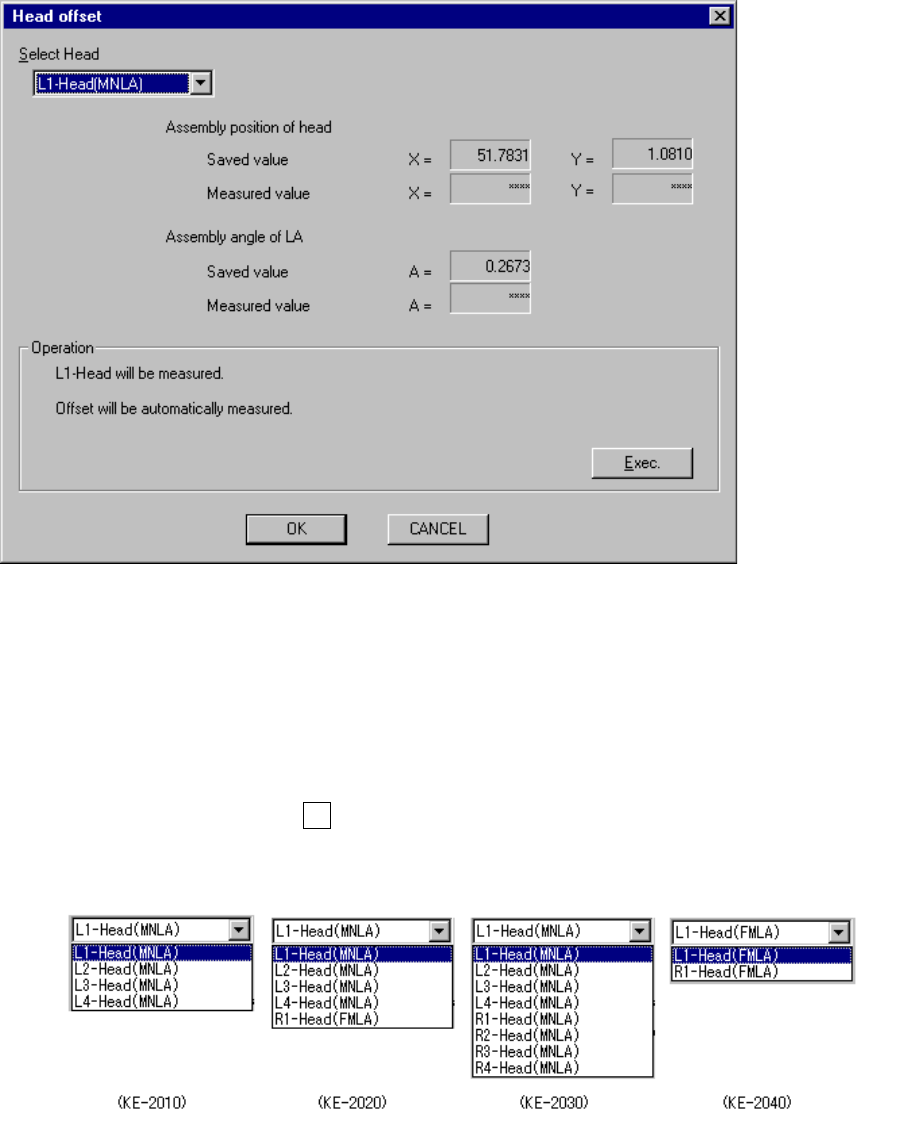

Figure 10.5.1 Head offset screen
− Select Head
Using this combo box, select the head to be set.
The heads which are not checked on the “Device enable” menu invoked from the
Machine Setup menu (that is, checked as “Not used”) cannot be selected.
When you press the Alt key and the down arrow key at the same time, the
following list appears on the screen.
(Assembling angle
already set)
(Assembling angle
measured)
