8 − 16
② Operation you select “Bad mark sensor” as the control unit
(1) XY move
Operate in the same manner as described under the section “Head
control”.
(2) Sensor con.
The control item “Sensor cont.” turns on and / or off the bad mark
sensor.
When the control item “Sensor cont.” is checked, click one of the
<ON>, <OFF>, and <ON/OFF> buttons, press one of the F3, F4 and
F5 keys.
The display of the sensor status is updated when the sensor is
controlled completely.
③ Operation when you select “HMS” as the control unit
(1) XY move
Operate in the same manner as described under the section “Head
control”.
(2) Measurement
Height measurement device
When the control item “Measurement” is checked, click the <EXEC>
button or press the F3 key.
The display of the measurement result is updated when the HMS is
controlled completely.
8 − 17

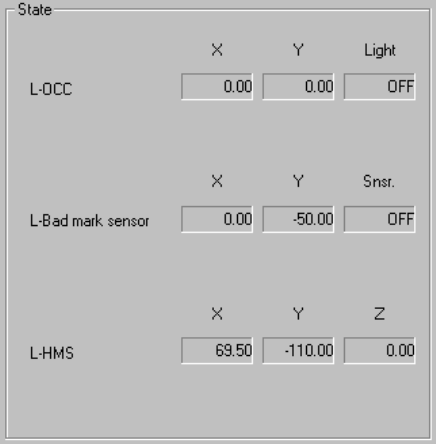

(4) State display
① OCC
The X and Y coordinates and ON and OFF setting of the light are displayed
when the OCC is controlled completely.
② Bad mark sensor
The X and Y coordinates and ON and OFF setting of the sensor are
displayed when the bad mark sensor is controlled completely.
The sensor setting is always displayed.
③ HMS
The X and Y coordinates and Z coordinate are displayed when the HMS is
controlled completely.
8 − 18
8.2.3 Laser control
When you select the [Head] command on the [Ctrl] menu, then the [Laser control]
command, the following Laser control dialog box appears on the screen.
Figure 8.2.4 Laser control dialog box
(1) Control unit
Select the unit head to be controlled from the combo box.
This selection does not affect the setting of the “Device enable” menu invoked
from the Machine Setup menu. (This means that the not checked units can be
selected.)
The following list appears when you press the ALT key and the down arrow key
at the same time.
