4 – 86 ⑨ Supply ang le Select the component supply angle with the corresponding radio button. W hen y ou select "O ther" as the "Kind of component", enter t he appropriate angle in the Edit field ( 0 …
4 – 85
④

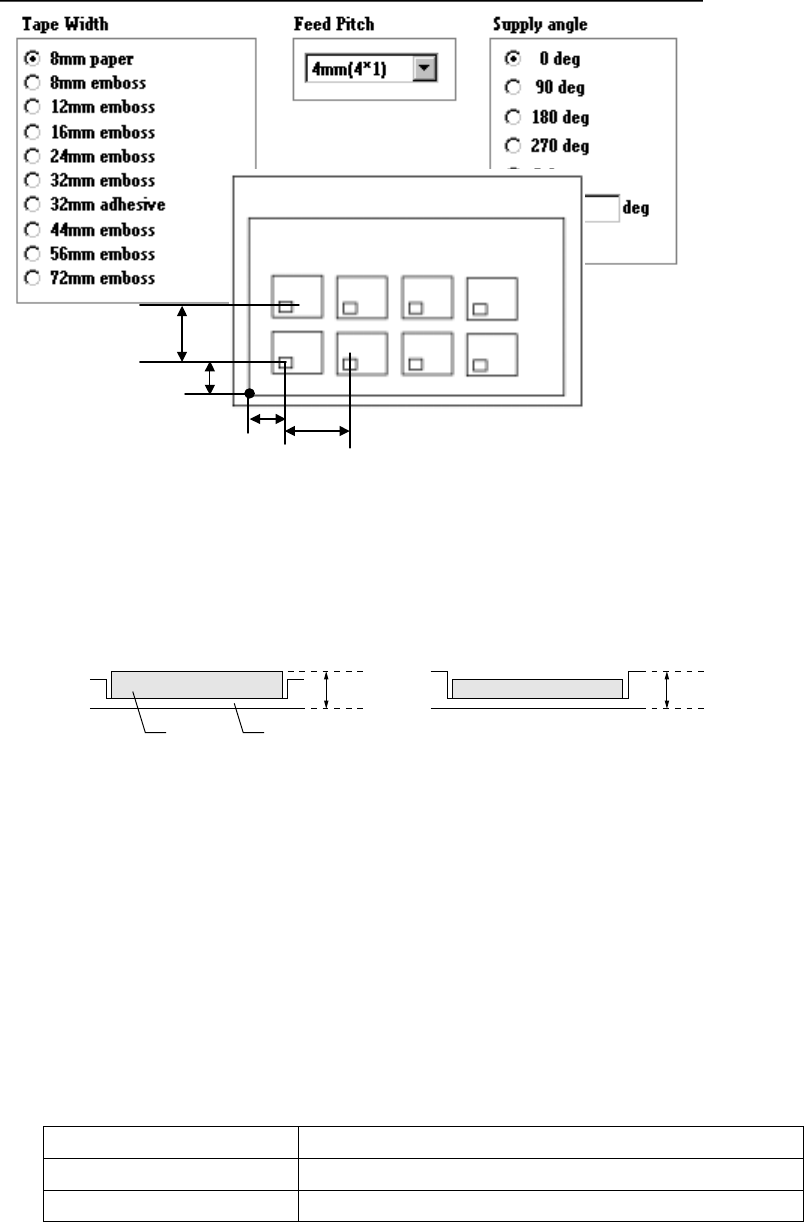

Tray first position
Enter the distance from the tray holder edge to the tray reference position (X,
Y) on the tray holder.
⑤
Pitch between
Enter the tray pitch (distance between two consecutive trays) in the holder
(Pitch X, Pitch Y).
⑥
division
Enter the number of horizontal divisions of a tray (Xn) and that of vertical
divisions (Yn).
⑦
Tray Thick
Enter the height "T" from the bottom of a tray to the top including a
component.
Case 1 Case 2
T T
Figure 4.7.3.2 Tray thickness
⑧
Feeder
Select a feeder with the corresponding radio button.
If you change the "Component packaging" of a component, whose two or
more Pick data records are entered, to a tray, DTS or MTC/MTS, the dialog
box shown below appears on the screen.
When you specify "MTC/MTS", select the feeding condition on the combo
box. The feeding condition specified here is to be referred when you
perform the Optimization utility to divide data or when you specify the stage
of Pick data.
Supply Cond (Feeding condition)
Auto Both the MTC and MTS can be used
MTC only Only MTC can be used.
MTS only Only MTS can be used.
Component Tray
Pitch X
Pitch Y
Y
X
Xn
Yn
4 – 86
⑨ Supply angle
Select the component supply angle with the corresponding radio button.
When you select "Other" as the "Kind of component", enter the appropriate
angle in the Edit field (0 to 359｡).
The "Supply angle" indicates the component supply angle based on the assumption
that the component placement angle is 0 degrees. Since a tape component supply
direction is specified in Component data, you do not have to specify its supply angle
for Pick data.The anti-clockwise direction should be the + (positive) direction.This
angle cannot be affected with any component supply position: front side, rear side,
MTC or MTS.
• Supply angle 0｡
QFP QFP(PLCC) SOP TSOP-1 TSOP-2 Connector

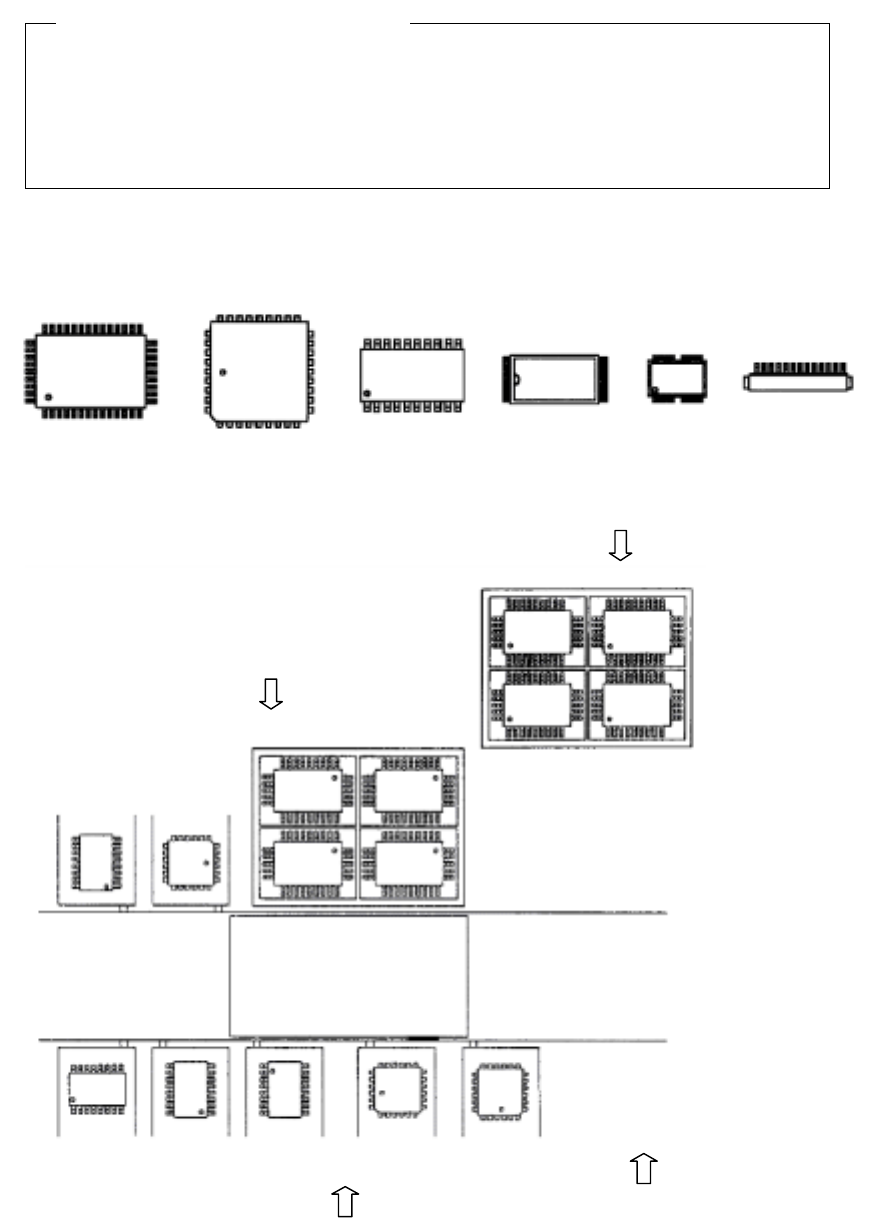

Figure 4.7.3.3 When the placement angle is 0
｡
｡｡
｡
• Example for setting the "Supply angle"
Figure 4.7.3.4 Example of "Supply angle"
Definition of the "Supply angle"
MTC (TR4
、
TR6)
、
MTS (TR5)
QFP
0
°
Tray holder
QFP
0
°
Stick feeder
QFP
0
°
SOP
270
°
SOP
0
°
SOP
90
°
SOP
270
°
QFJ
0
°
QFJ
90
°
Front of a stick feeder
: Direction of the view
which is used for
determining the
"Supply angle"
4 – 87

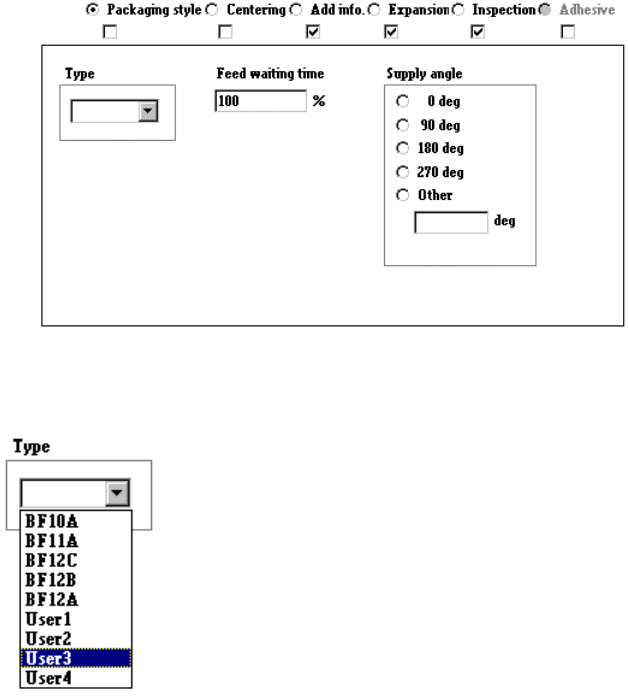

4) When “Bulk” is selected
① Type
Select the bulk feeder type in the combo box.
② Feed waiting time
Set the ratio of the component feeding time to the waiting time for the next
component to be picked up after the current component is picked up. A
unique value is provided to each component type. Specify this unique value
in percentage here.
③ Supply angle
Select the component supply angle with using the corresponding radio
button.
