8.6.3 Component verification
When you select the [Others] command on the [Ctrl] menu, then the [CVS control]
command, the following “CVS control” dialog box appears on the screen.
Figure 8.6.3 CVS control dialog box
(1) Control item
Select a control item with the corresponding radio button.
(2) Control button
Execute the selected control item with its control button.
The display of the control buttons varies depending on the control item you
selected.
8 − 59
1) Probe
This item turns on and/or off the probe.
- When the control item “Probe” is checked, click the <ON>, <OFF>, or
<ON/OFF> button or press the F3, F4or F5 key to control the probe.
The state display is updated when the probe is controlled completely.
2) Meas. of capacitor
This item measures the capacity of a capacitor component.
- When the control item “Meas. of capacitor” is checked, click the
<Measurement> or <Mode> button, or press F3 or F4 key to control
measurement of a capacitor.
The state display is updated at end of control.
3) Meas. of diode
This item measures the capacity of a diode component.
- When the control item “Meas. of diode” is checked, click the
<Measurement> or <Mode> button, or press F3 or F4 key to control
measurement of a capacitor.
The state display is updated at end of control.
4) Meas. of resistor
This item measures the capacity of a resistor component.
- When the control item “Resistor measurement” is checked, click the
<Measurement> or <Mode> button, or press the F3 or F4 key to control
measurement of a resistor.
The state display is updated when the capacity of a resistor is
measured.
(3) State display
The state of each unit is displayed when the unit is controlled completely.
8 − 60
8.6.4 SOT direction check table
When you select the [Control], [Others] and [SOT inspect unit] commands in this
order, the following “SOT inspect unit” dialog box appears on the screen.

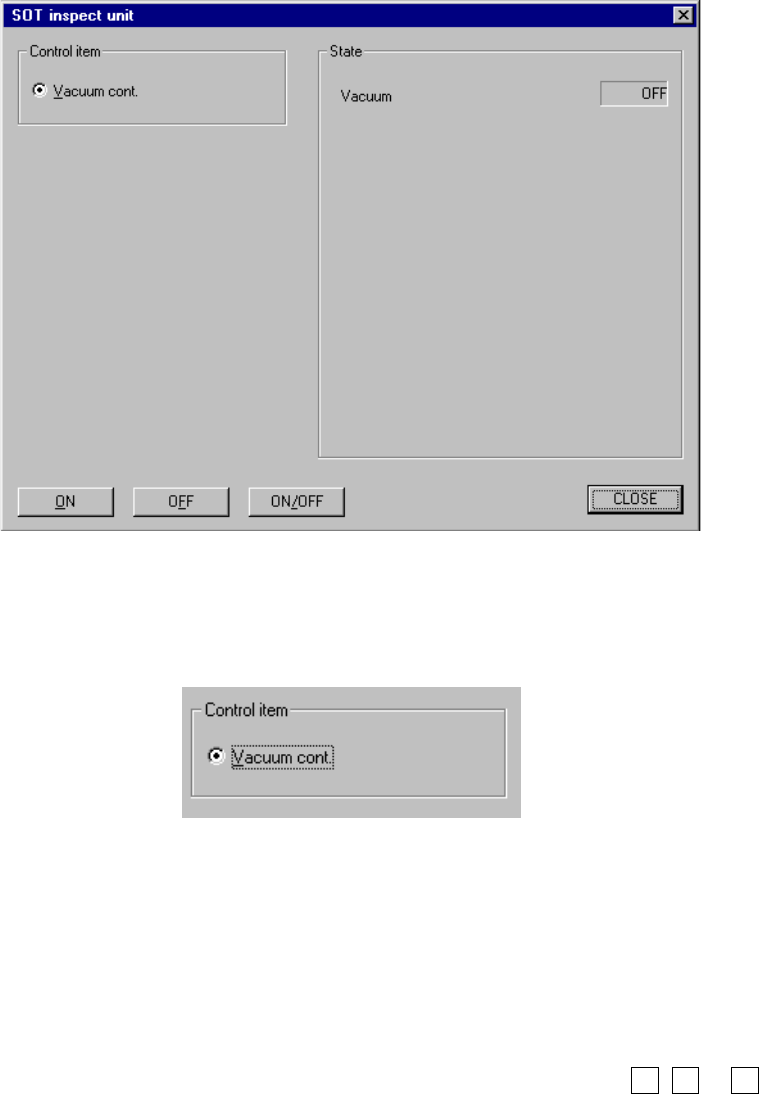

Figure 8.6.4 “SOT inspect unit” dialog box
(1) Control item
Check the radio button.
(2) Control buttons
Click the corresponding control button to execute the displayed function.
The displayed control buttons vary depending on the control item you selected.
1) Vacuum cont
This function turns on/off the vacuum unit.
- Click the <ON>, <OFF> or <ON/OFF> button, or press the F3, F4 or F5
key when the radio button for the control item “Vacuum cont” is checked.
The “State” display is updated when the corresponding unit is controlled
completely.
(3) State display
This displays the condition of each unit when the unit is controlled completely.
