9.4.5 Driver operation information
When you select the [Window] command on the menu bar, then the [Driver Operation
Information] command on the displayed menu, the screen appears as shown in Figure
9.4.5.1.
No. Classification Item Description
1
Auto PWB Width driving
count
Displays how many times the automatic PWB
adjustment was performed since this information
was cleared the last time.
2
Backup plate driving
count
Displays how many times the backup plate was
driven.
3 Stopper pin driving count
Displays how many times the stopper pin was
driven.
4
Conveyor
Shape Ref. driving count
Displays how many times the machine has
produced PWBs by referring to the shape of
PWBs since this information was cleared the last
time.
Figure 9.4.5.1 Driver Operation Information
9 − 19
9.4.6 Resetting the operation information data
9.4.6.1 Resetting each screen of the operation information
When you select the [Tool] command on the menu bar, then the [Reset] command on
the Tool menu while the "Driver Operation Information" window is being displayed on
the screen, or when you click the <RST> button on the tool bar, the following dialog
box appears on the screen.

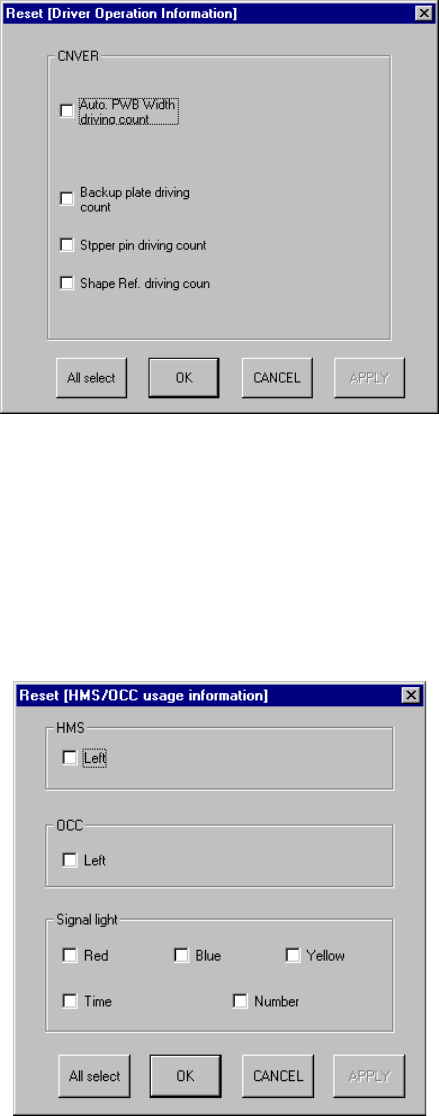

Figure 9.4.6.1.1 "Reset [Driver Operation Information] dialog box
When you select the [Tool] command on the menu bar, then the [Reset] command on
the Tool menu while the "Light Operation Information" window is being displayed on
the screen, or when you click the <RST> button on the tool bar, the following dialog
box appears on the screen.
Figure 9.4.6.1.2 "Reset [Light Operation Information] dialog box
9 − 20
When you select the [Tool] command on the menu bar, then the [Reset] command on
the Tool menu while the "Operation Information of each head" window is being
displayed on the screen, or when you click the <RST> button on the tool bar, the
following dialog box appears on the screen.

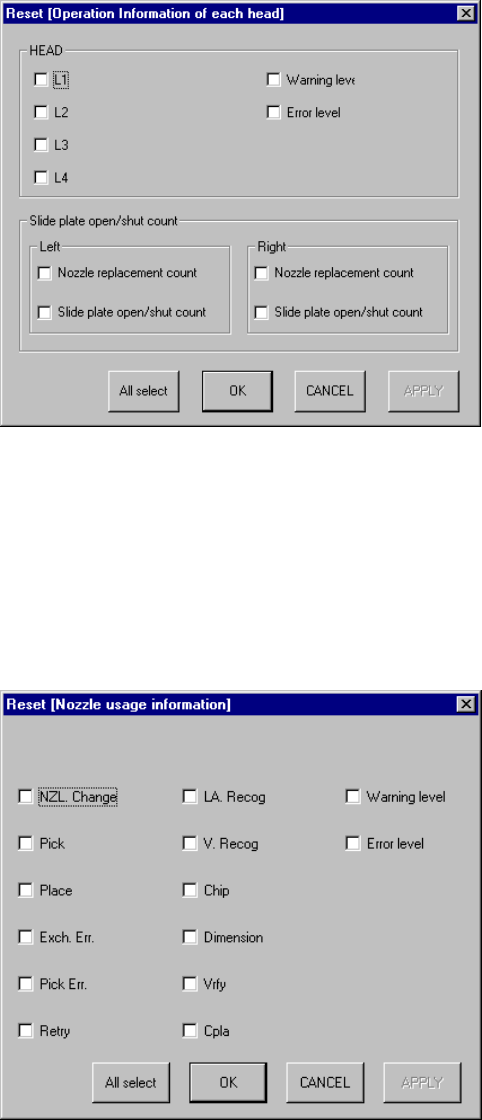

Figure 9.4.6.1.3 "Reset [Operation Information of each head] dialog box
When you select the [Tool] command on the menu bar, then the [Reset] command on
the Tool menu while the "Operation Information of each nozzle" window is being
displayed on the screen, or when you click the <RST> button on the tool bar,the
following dialog box appears on the screen.
Figure 9.4.6.1.4 "Reset [Operation Information of each nozzle] dialog box
