7 − 2
7.1.1 Immediately after start-up
The machine setup initial screen, as shown in Figures 7.1.1.1 through Figure 7.1.1.6,
appears when [Set up], then [Machine Setup] is selected from the menu bar.
The machine setup initial screen shows the values defined currently for the
parameters to be set. To scroll the screen, move the scroll bar up and down using
the cursor keys or page up and down keys.

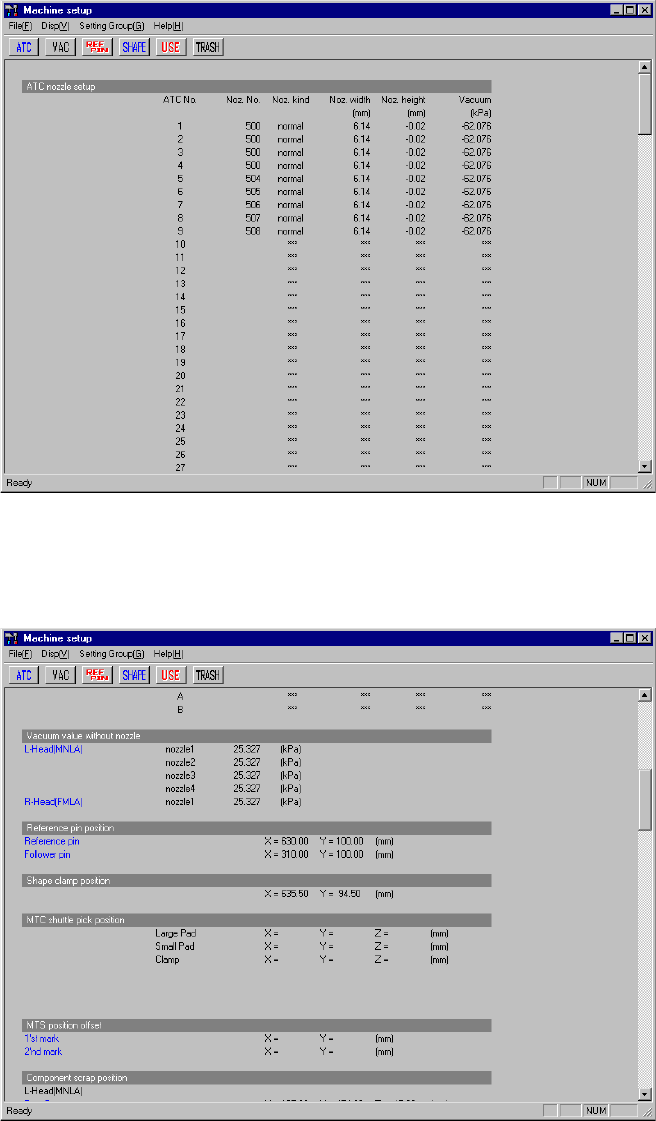

Current settings of the menu item "ATC nozzle setup"
Figure 7.1.1.1 Machine setup initial screen 1
Current settings of the menu items "Vacuum value without nozzle", "Reference pin
position", items "Shape clamp position", "MTC shuttle pick position", "MTS position
offset" and "Component scrap position"
Figure 7.1.1.2 Machine setup initial screen 2
7 − 3

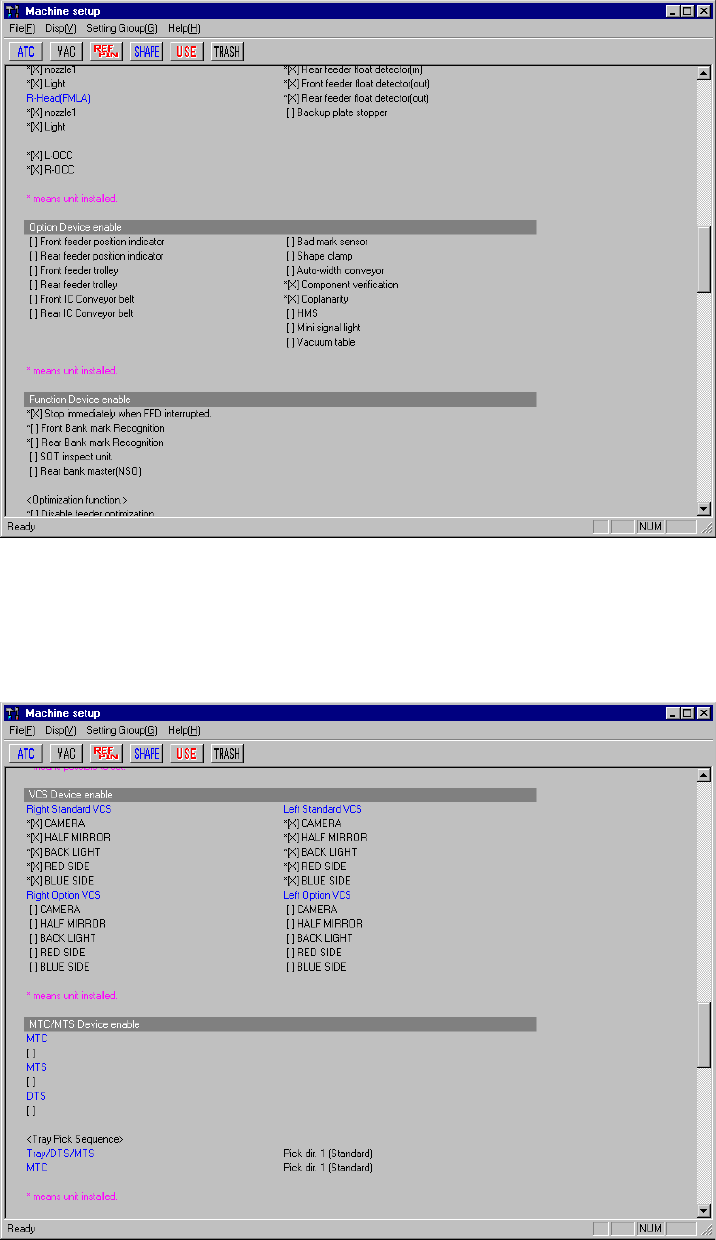

Current settings of the menu items "Option Device enable" and "Function Device
enable"
Figure 7.1.1.3 Machine setup initial screen 3
Current settings of the menu items , "Function Device enable", "VCS Device enable"
and "MTC/MTS Device enable"
Figure 7.1.1.4 Machine setup initial screen 4
7 − 4
Current settings of the menu items "Vacuum table" and "Signal light".
Figure 7.1.1.5 Machine setup initial screen 5
Current settings of the menu item "Signal light" and "Coplanarity"..
Figure 7.1.1.6 Machine setup initial screen 6
− To change the setting of each item select [Setting Group] of the menu bar.
− When you select an item on the Set up group menu, and set the appropriate
parameter, the Machine setup initial screen reappears.
