4 – 114
− Enter the "Sply" parameter with considering the number of the occupied
feeder mounting holes.
If you want to select two or more components data records, then change
them simultaneously, you can change them to “Auto” only.
② Angl (Angle)
This parameter specifies the component pick-up angle.bar.
− The angle set in Component data appears here as the default setting.
To change it, move the input focus to this "Angle" parameter.
• When Pick data is created, the component feeding angle set in Component
data is set as the default setting.
• When you call Component data from the permanent information to create it,
the direction specified as the permanent information is set to Pick data also
as the default setting.
• When you call Component data from database to create it, the component
feeding angle set in Component data is set as the default setting when you
create Pick data.
• Even though you enter the angle to Pick data, each angle set in Component
data, permanent information and database will not be changed.
• When you are to change the angle of Component data only, the dialog box
shown below appears on the screen to ask you whether to change the angle
of Pick data also.
When you select "Yes" on this dialog box, the pick-up angle is updated.
• When you select "No", the angle set as Pick data is updated.
• When you select the [Call list] command, the system asks you if Pick data is
to be updated.
)
4 – 115
③ Pos
Enter the mounting position of the component feeder with the formula bar.
The tape feeder, stick feeder and bulk feeder are equipped with a fixing pin on
their end. This pin fits into the feeder mounting hole so that the feeder can be
placed in position. For this parameter, define the feeder mounting hole
number.
If a new value is entered to the “Sply” or “Pos” item the value is changed, X1,
Y1, and Z are automatically recalculated and the results are shown on the
screen. Note that the results vary depending on the model of the feeder to be
mounted.
As soon as a number is entered, overlap is checked for the existing tape
feeders, bulk feeder, and stick feeders. If the same number already exists, the
entry is rejected with an error message shown on the screen.
④ X1, Y1, Z
These parameters set the coordinates of the component pick position. They
are automatically calculated and shown after “Sply” and “Pos” items have been
defined.
Once a value is entered to each coordinate, you can change (teach also) it.
CAUTION
To avoid a risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine while the machine is
performing teaching operation.
CAUTION
If the bank is never recognized (since the machine zeroes, or the bank
moves down then up), it may be recognized automatically before the
machine moves to the pick position. Since the head moves across the
feeder while the feeder bank is being recognized, do not place your
hand in the machine, nor move your face or head to the machine.
Especially, take care when the feeder bank is recognized not from the
menu but during teaching or tracking a pick position.
⑤ Used
This item specifies whether to use the feeder during production or not.
The default setting “Yes” (use) appears. To change the setting, press the F2
key to open a pop-up menu and select “No”.
During production, the feeder is used.
Yes
No
During production, the feeder is not used.
4 – 116
4.8.2.2 Stick feeder specifications
The stick feeder comes in nine types, and stick changers and belt feeders are also
provided as a stick feeder.
The stick changer comes in 15 types while the belt feeder does in 7 types.
Different types have either one or two or more lanes.
Each stick feeder can have a single type of components on all lanes or different
types for different lanes.

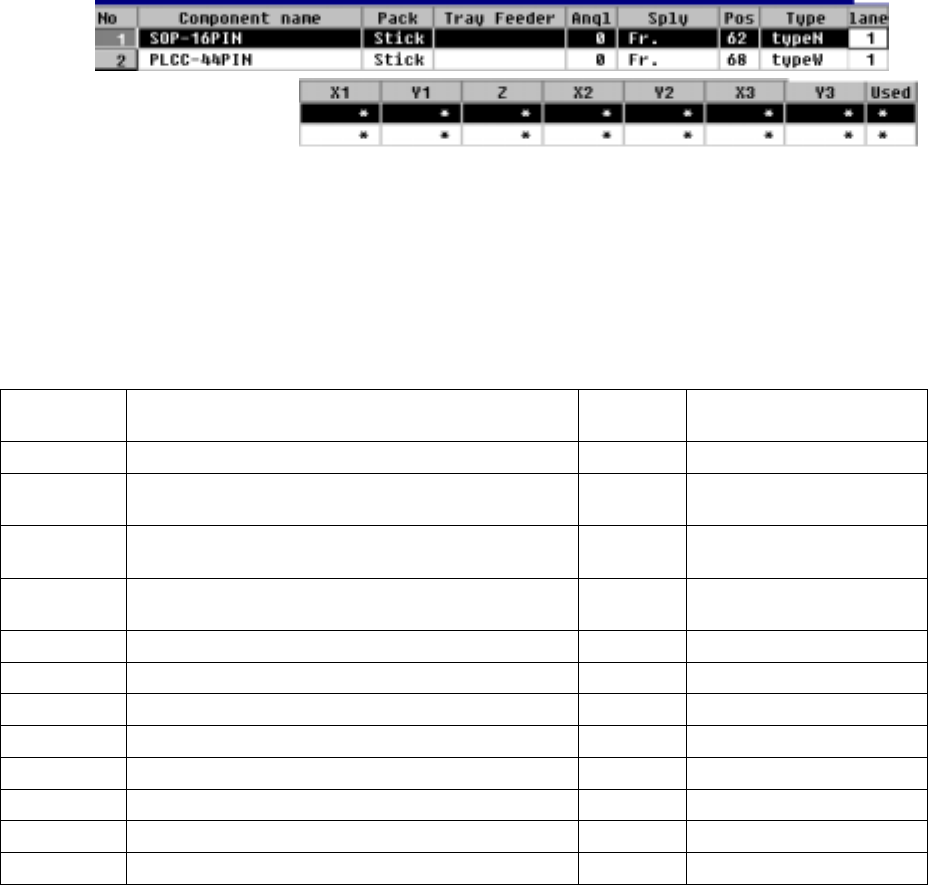

The lane assignment example is shown below.
− The parameters "Pack" and "Type" set in Component data appear here: you
cannot change any of them. To change either one, change the setting of
Component data.
Stick feeder types and the number of occupied holes
which are used for mounting each stick feeder
Stick
feeder type
Application
Number
of lanes
Number of holes for
mounting a stick feeder
Type 1 SOP 8, 14 and 16 narrow type 3 8
Type 2
SOP 14 and 16 wide type, SOP 29 narrow type, and
QFJ18
3 8
Type 3
SOP 20 wide type, SOP 24 and 28 narrow type, and
QFPJ20
2 8
Type 4
SOP 24 and 28 narrow type, SOP 32 and higher
narrow type, and QFJ28 and 32
2 8
Type 5 SOP 32 and higher wide type 2 8
Type 6 PLCC42 and 55 2 8
Type 7 PLCC68, 84 and 52 1 8
Type 8 Special type for export 8 8
Type 9 Special type for export 8 8
Type N SOP, SOJ, QFJ (PLCC) N1 to N4 1 8
Type W SOP, SOJ, QFJ (PLCC), W1 to W5 1 6
Changer Stack stick feeder types 1 to 6, 3L to 9L, and 2J to 4J 1 3
