4 − 26
4.3.4 Insert line
This command inserts a blank line at the cursor position. After a blank line is
inserted, the cursor moves to the leftmost field of the inserted blank line.
4.3.5 Double line
This command copies the line at which the cursor is located, then inserts it between
the original line and the next line. After the line is copied, then inserted, the cursor
moves to the leftmost field of the copied line.
If you copy a line from Placement data, the component ID becomes “#”, and other
items are all copied.
Note that the original pickup coordinates are copied to the destination line if you
copy a line of an MTC/MTS component or DTS component. Even though you enter
a number of levels or lane, HLC will not calculate the pickup coordinates
automatically.
If you copy a line from Pick data, the component name and package style are
copied, and other items are initialized.
4.3.6 Jump
Specify the line number. If the machine finds the specified line number within the
screen, the cursor moves to the line. If the machine finds it outside of the displayed
screen, the screen scrolls so that the found line is located at the center of the
screen.

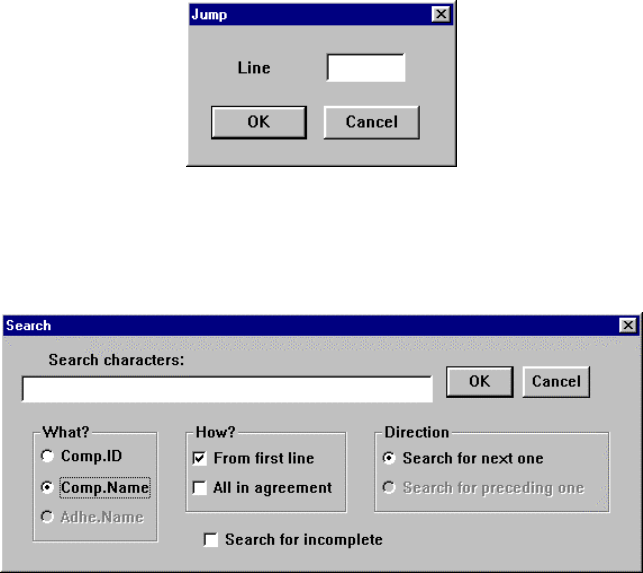

When you select the [Jump] command, the following dialog box appears on the
screen. Specify the line number to jump to. If the specified line is beyond the
input data area, the machine jumps to the last line.
4.3.7 Search
This command searches a command ID or command name. Specify the search
criteria on the following dialog box, then click the “OK” button to start searching the
specified character string.
If the machine finds the character string within the displayed window according to
the specified criteria, the cursor moves to that position, while if the machine finds it
outside the displayed area, the screen scrolls so that the found line is shown at the
center of the screen.
4 − 27

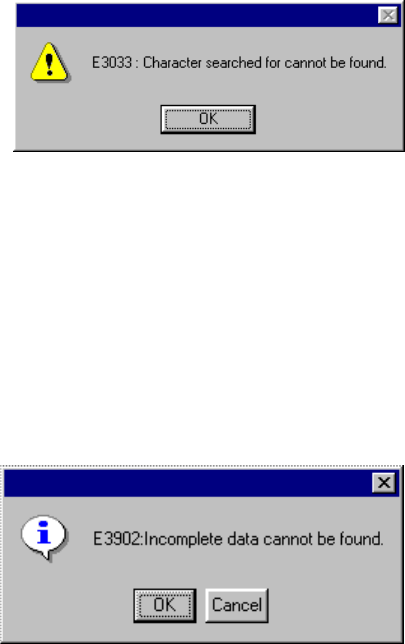

If the machine does not find any character string, the following dialog box appears
on the screen.
The entered character string is memorized until you specify a new character string.
When you execute the [Search next item] command, the character string specified in
the “Search characters” field is to be searched toward the direction checked in the
[Direction] item.
When you check the check box “Search for incomplete” the system retrieves data
not completely created. Note that if you check this box, you cannot select any of
the items: “Comp. ID”, “Comp. Name”, “Adhe. Name” and “All in agreement”.
4.3.8 Search next item
This command searches a character string which is specified with the [Search]
command. The search criteria used the last time are applied to this command from
lines other than the first line.
4.3.9 Cell copy
This command reads data of the cell at which the cursor is located into the memory
buffer. To paste it over the displayed data, execute the [Cell paste] command.
This [Cell copy] command can be selected only when you are editing Placement
data.
This command is effective for the cells “X”, “Y”, “Angle” and “Component name”
only.
4.3.10 Cell paste
This command overwrites the corresponding item on the line the cursor is located
with data stored in the memory buffer.
If there is no data in the memory buffer, this command is disabled.
The memory buffer keeps the same data until you start editing another type of data
(executable continuously).
The [Cell paste] command can be selected only when you are editing Placement
data.
4 − 28
4.3.11 Sort
This command is selectable on the Component list screen or Adhesive data
screen.
① Entering Sort mode
When you select the [Sort] command, the component names are displayed in
ascending order on the Component list (according to the JIS code, but upper
case letters are not distinguished from lower case letters).
The sorted result is maintained even on the Component form screen.
The machine puts a check mark next to the [Sort] command to indicate that
the data is sorted.
② Canceling Sort mode
In the following cases, Sort mode is canceled, then the Component list is
displayed in the input order. The check mark disappears from the [Sort]
command displayed on the menu.
• Select the [Sort] command although this command is already checked.
• If you edit data so that the order of the Component list data is changed
(addition, deletion or change of a component name), Sort mode is
automatically canceled.
