(3) While the camera is tracking a component placement position
After you click the <Execution> button or press the <Start> button, the following
dialog box appears on the screen while the camera is tracking each set of
coordinates of the component placement position.

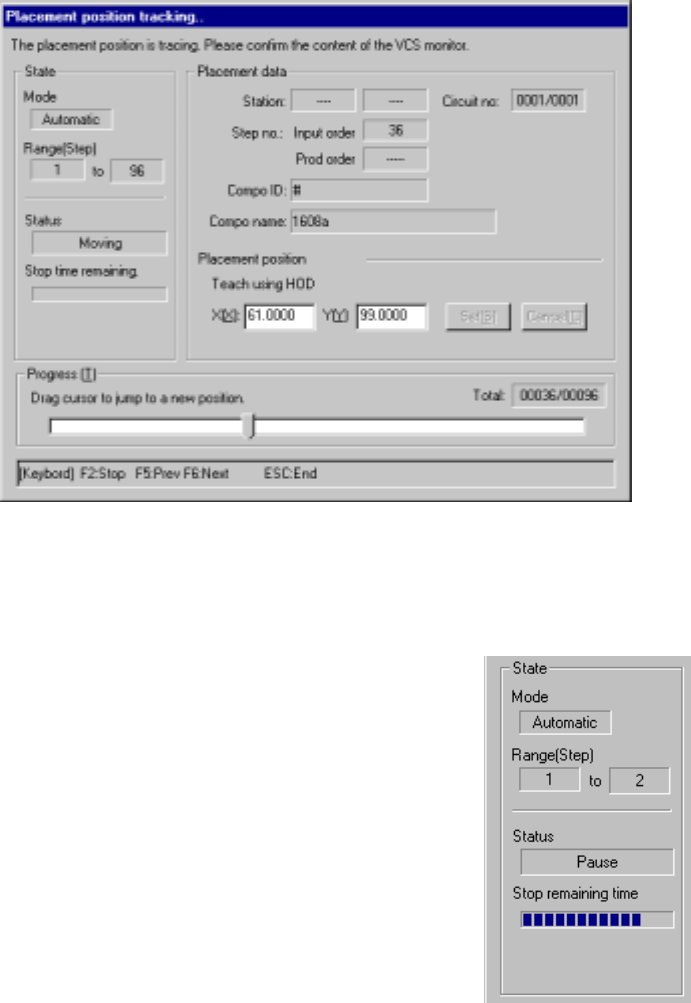

Figure 4.12.3.3.3 “Placement position tracing” dialog box
1) State
① Mode
“Manual” or “Automatic” which is set with
the radio button “Feed method” appears
here.
② Range
When all placement points are to be
tracked, the “first” point and “end” point
are displayed here. If you change the
tracking range, the changed step
number is displayed.
③ Status
“Moving” indicates that the axis is
moving. “Pause” indicates that the axis
pauses temporally in Automatic Feed
mode. “Stop” indicates that the axis is stopped manually or intentionally.
“Axis esc” indicates that the axis is moving to the safety position. “Mark
recog” indicates that an IC mark is being recognized.
④ Stop remaining time
The progress bar indicates the remaining stop time in Automatic Feed
mode.
4 – 217

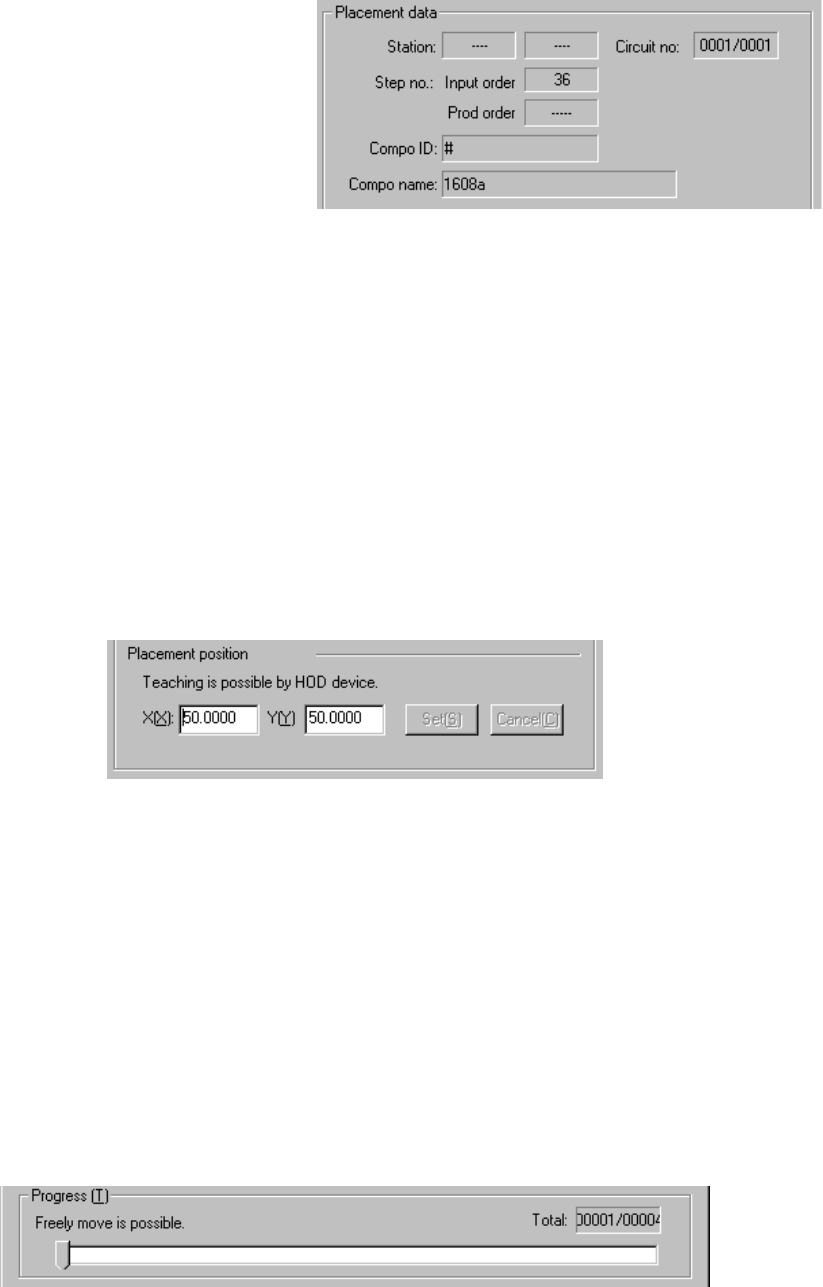

2) Placement data
① Station (available to a KE-2030 only)
The station whose component placement point is being tracked is
displayed here.
② Step no.
The step number of
Placement data
being tracked is
displayed here.
③ Compo ID
(Component ID)
The ID of a component being tracked is displayed here.
④ Compo name (Component name)
The name of a component being tracked is displayed here.
⑤ Circuit no
The circuit number being tracked/total number of circuits are displayed
here.
3) Placement position
The coordinates of a component placement position being tracked is
displayed here. You can manually change the coordinates or use the
teaching function to change the coordinates displayed.
4) <Set> and <Cancel> buttons
These buttons are activated when you manually change the coordinates or
use the teaching function to change them. When you click the <Set> button,
the changed coordinates are saved into Placement data. If you do not want
to save the changed coordinates, click the <Cancel> button.
5) Progress
This slide bar moves one by one as the tracking position moves. While the
tracking operation pauses, you can move this slider bar to move the tracking
position to the previous point, the next point and so on.
4 – 218
(4) Operation during tracking
While the system is tracking a component placement position, you can use the
following keys/switches to control the tracking operation.
Operation Keyboard Operation panel HOD
Start of tracking F1 Start button ENTER
Stop of tracking F2 Stop button PAUSE
Moving to the previous point F5 PREVIOUS
Moving to the next point F6 NEXT
Component Verify check F7
SOT Angle check F8
Changing data F9
End of tracking Pressing the ESC
key while the
machine is stopping
Pressing the Stop
button while the
machine is stopping.
Pressing the
CANCEL button
while the machine is
stopping.

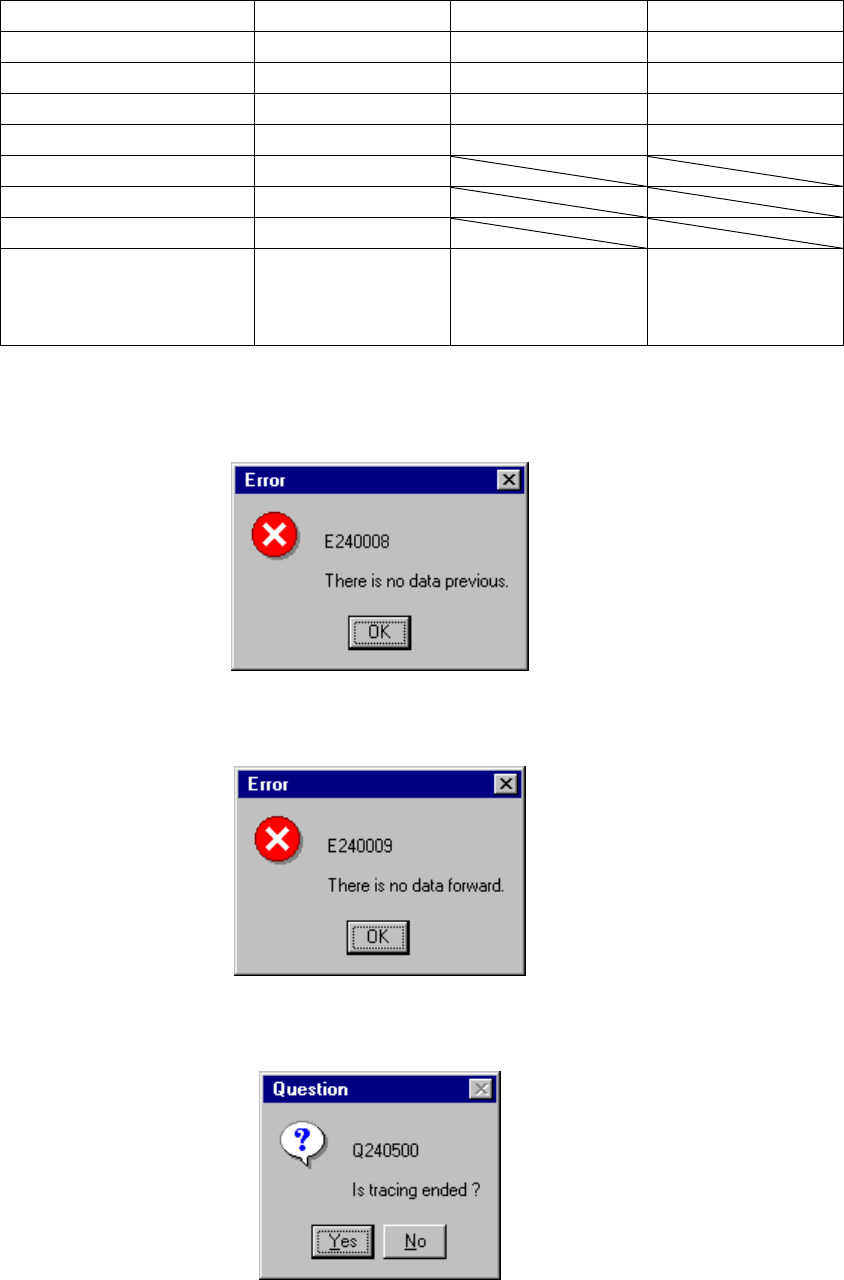

If there is no data when you try to move the camera to the previous point, the
following dialog box appears on the screen.
If there is no data when you try to move the camera to the next point, the following
dialog box appears on the screen.
If you abort the tracking operation due to either of the reasons above, the following
dialog box appears on the screen.
