6.4.14 PWB production without transporting a board
Conventionally, a machine has to remove a board before production if it is located on
the PWB transport path at start of production. However, this function allows the
machine to fix (clamp) a board again if it is on the PWB transport path at start of
production, so the machine can start production without loading any board into the
machine.
Normally a board remains on the PWB transport path in the following conditions:
Production is aborted (due to an asynchronous event and so on), or
An operator stops production forcibly.
Use this function to recover the system from the conditions described above.
①
If you load a production file to the system and quit the “Production”
screen before starting production, this function cannot obtain the
condition of the PWB transport path when production is interrupted.
Therefore, it may cause some component(s) not to be placed on a board
or to be placed at a wrong position of a board. Be careful to use this
function.
②
If a board size is extremely large or a board is very heavy when the
system performs PWB production without transporting a board, the
system may fail to clamp it.
− To execute this function, clamp a board again on the “Processing before
production begins” dialog box, and then start production.
6.4.14.1 Process before production starts
The contents of the screen displayed as “Processing before production begins” dialog
box vary depending on the condition: “if there is a continuous production file” or “if
there is no continuous production file” as shown below.
Figure 6.4.14(a) If there is a continuous production file
6 − 91
Figure 6.4.14(b) If there is no continuous production file
• When you press the <START> switch on this dialog box, the system starts the
selected operation.
• When you press the <STOP> switch on this dialog box, the system enters
Production Idle mode again.
(1) Detailed explanations of the “Processing before production begins” dialog box
①
Continuous production information
When there is a continuous production file, the “continuous production
information” and the radio buttons; “Continue the production.” and “Produce
newly” are displayed on the “Processing before production begins” dialog box
as shown below.
Figure 6.4.14.1.1 Continuous production information
− When you select the radio button “Continue the production.”, the system
resumes the production. When you select the radio button “Produce newly”,
the system starts new production at the position specified at the menu item
“Starting pos.” on the “Production conditions” screen.
(However, if “0” is entered at either the “Circuit” or “Step No” column of the
menu item “Starting pos.”, the system starts production from the beginning
of the first circuit.)
②
Production operation
Regardless of whether there is a continuous production file, the “Processing
before production begins” dialog box displays the radio buttons specifying
whether the system will start production after load a new PWB or after the
board is clamped.
Figure 6.4.14.1.2 Choice whether the Load a new PWB or Re-clamp current PWB
6 − 92
− When you select the radio button “Load a new PWB”, the system ejects a board if
any board is located on the PWB transport path, and produces a PWB after
loading a board at start of production.
− When you select the radio button “Re-clamp current PWB”, the system clamps a
board located on the PWB transport path, and starts PWB production without
loading any board at start of production.
− Depending on whether there is a board on the PWB transport path, or whether the
system obtains the PWB transport path information when the current production
was interrupted, you may not be able to perform PWB production on the
“Production resume” dialog box as shown below:
Table 6.4.14.1 List of production possibilities
Choice of the radio button
Whether to
continue the
production
Whether a board is
located on the PWB
transport path
PWB transport path
information obtained when
production was interrupted
“Load a new PWB”
(Production after a board is
loaded)
“Re-clamp current PWB”
(Production after a board is
clamped)
Yes
A board is located.
No board is located.
No information
Not visible
Visible
Visible
Visible
Yes
Note
A board is located.
No board is located.
No information
Visible
Visible
Visible
Visible
Yes
A board is located.
No board is located.
No information
Visible
Visible
Visible
Visible
No
Note
A board is located.
No board is located.
No information
Visible
Visible
Not visible (None)
Visible
Yes
A board is located.
No board is located.
No information
Not visible (None)
Visible
Visible
Visible
Not visible (None)
Visible
There is no
continuous
production
file.
Note
A board is located.
No board is located.
No information
Visible
Visible
Visible
Visible
Not visible (None)
Visible
Note: Not visible if the system starts new production, while visible if the system
resumes production.

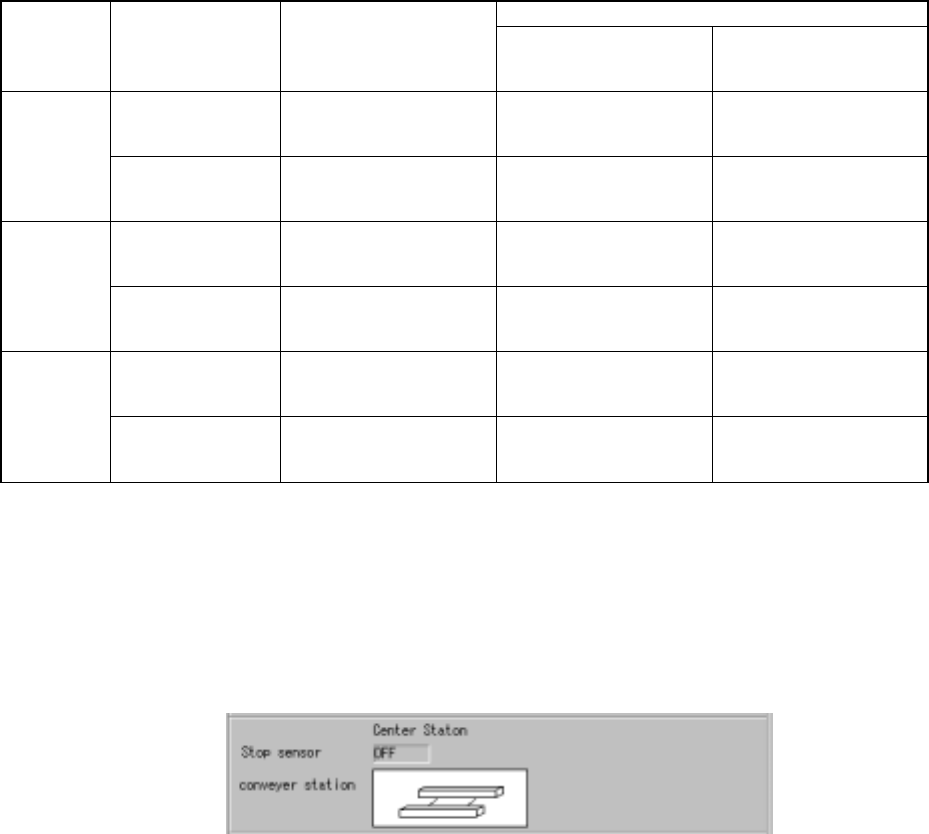

③ Condition of the PWB transport path
The “Processing before production begins” dialog box displays the condition of
the PWB transport path regardless of whether there is a continuous production file
or not as shown below:
Figure 6.4.14.1.3 “Processing before production begins” dialog box (Condition of
the PWB transport path)
− The stop sensor detects whether there is a board on the PWB transport path.
• When “ON” appears on the screen, there is a board on the PWB transport path.
• When “OFF” appears on the screen, there is no board on the PWB transport path.
