6 − 71
(1) Tracking and component pick-up position correction of a feeder that caused an
error
The system operates in the same manner when the stocked components run out.
CAUTION
The head starts to move immediately after the "Retry" button is selected
or the "Skip" button is selected, and the <START> switch is pressed.
Then the machine restarts PWB production.
To avoid a risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine during operation.
Before pressing the <START> switch, check that there is no one who is
working in the machine.
Before pressing the <START> switch check that there is no one who
can be injured when the head starts to move.
Before pressing the <START> switch, check that there are no obstacles
(tools and jigs) attached or left in the machine.
Even when "Stop production after ejecting PWB" is selected, X and Y
axes and the head continue to move to replace nozzles.
To avoid a risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine even after stopping the
production.
(2) Detailed information
The system operates in the same manner as it does when the stocked
components run out.
(See (4) of Section 6.4.1 “Run-out of component stock”.)
6.4.3 Mark recognition error
When a BOC or IC mark recognition error occurs during BOC or IC mark recognition
operation, the dialog box appears as shown in Figure 6.4.3.1 and the machine is set
in the pause status. Note that the radio button "Recognize on same position" is
checked and displayed in the lighter color in Production restart mode, which cannot be
changed.
Figure 6.4.3.1 BOC mark recognition error dialog box
When the machine pauses due to a mark recognition error, recognize marks or use
6 − 72
the taught coordinates which are checked with your eyes as the mark coordinates in
order to restart the next production. Otherwise, the machine cannot place a
component on a board correctly.
When pressing the CAMERA key of the HOD, and the camera device at the station
which causes an error, the camera’s view moves to the mark coordinates displayed
on the dialog box, and the mark coordinates can be taught.
When finishing teaching using the ENTER key of the HOD, the color of the radio
button displayed changes to deep black. Here, production can be continued by
performing the mark recognition at the taught coordinates or checking the mark with
your eyes.
However, when the left and right BOC recognition causes an error, you cannot select
the radio button unless you finish the teaching operation for the left and right BOC
marks.
If you perform teaching operation again, but click the <CANCEL> button to abort it
after you perform teaching operation once and the radio button is displayed in dark
black, the machine condition returns to the state before you performed teaching
operation first (in this case, perform teaching operation again).
The teaching here is effective only for the subject board. If a mark recognition error
occurs again and again with the other boards, finish production once. Then, perform
coordinate and recognition teaching of the mark again on the Program Editing menu.
Pressing the <START> switch on the panel of the main unit restarts the production,
and pressing the <STOP> switch stops the production while displaying the production
stop dialog box.
CAUTION
To avoid a risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine when operating the HOD.
Even though you abort production, do not place your hand in the
machine or move your face or head close to the machine to avoid a risk
of injury.
Note: Teaching here is effective only for the subject board. If an error occurs during
continuous production, correct the PWB data.
6 − 73
6.4.4 Cover was open
When the protective cover is opened during production, the dialog box appears as
shown in Figure 6.4.4.1 and the machine is put in the pause state.

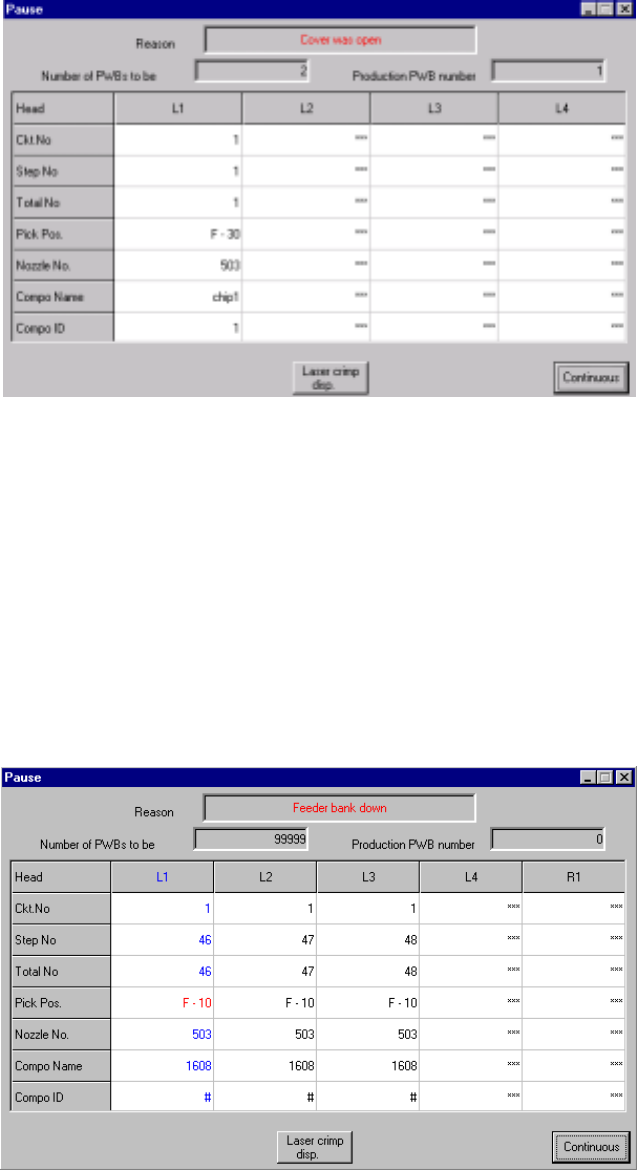

Figure 6.4.4.1 "Cover was open" dialog box
Pressing the <START> switch on the panel of the main unit restarts the production,
and pressing the <STOP> switch stops the production while displaying the production
stop dialog box. If the <START> switch is pressed to restart the production when the
cover is opened, the production starts at the low speed.
6.4.5 Feeder bank down
When the feeder bank is being moved down, pressing the <START> switch on the
operation panel causes an error and cannot start/restart production.
If the feeder bank is moved down during production, the dialog box appears as shown
in Figure 6.4.5.1 and the machine is put in the pause state.
Figure 6.4.5.1 "Feeder bank down" dialog box
To start/restart the production, set correctly the feeder overall changer and move up
the feeder bank. Then, press the <START> switch on the operation panel. When the
<STOP> switch is pressed with this dialog box displayed, the production stop dialog
box appears on the screen and the production stops.
