(1) Setting on the Continuation measurement dialog box
When you select the [All component] command on the menu, the following
“Continuation measurement” dialog box appears on the screen.

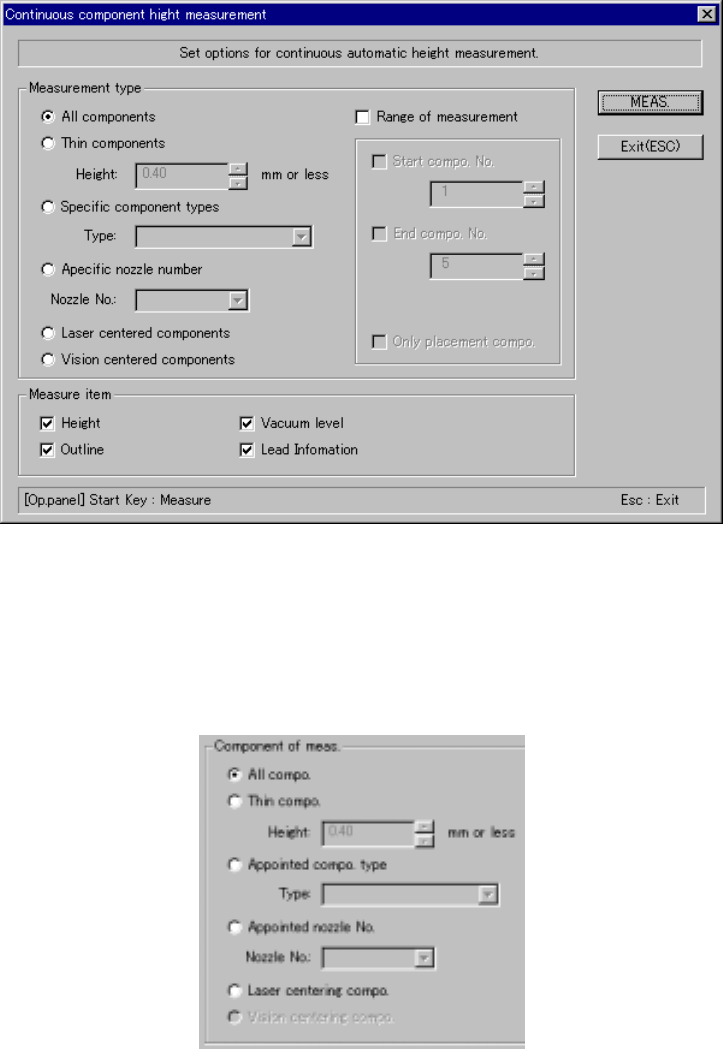

Figure 4.12.2.4.3.1 Continuation measurement dialog box
1) Component of meas. (Component of measurement)
Set the item(s) displayed here if you want to measure only components which
satisfy the certain requirements of Component data.
① All compo. (All components)
Measures all components specified in Component data.
② Thin compo. (Thin components)
Measures only components whose height is specified in the edit box or
lower.
③ Appointed compo. type (Appointed component type)
Measures only components whose type is specified in the combo box.
4 – 205
④ Appointed nozzle No.
Measures only components which require a nozzle selected in the combo
box.
⑤ Laser centering compo. (Laser centering components)
Measures only components which are to be centered with laser.
⑥ Vision centering compo. (Vision centering components)
Measures only components which are to be centered with the VCS (not
available to a KE-2030/KE-2010).
2) Bounds of meas. (Bounds of measurement)
Check this check box to specify the component number to further select
components among those which already satisfy the conditions specified with
the “Component of meas.” items. When you check this check box, you can
specify the following items.
① Start compo. No. (Start component No.)
Check this check box to specify the component data number of the first
component to be measured.
Check this box, then change the first component number displayed in the
edit box.
② End compo. No. (End component No.)
Check this check box to specify the component data number of the last
component to be measured.
Check this box, then change the last component number displayed in the
edit box.
③ Only placement compo. (Only placement components)
Check this check box if only components specified in Placement data are
to be measured.
4 – 206
3) Meas. Item (Measurement Items)
Select the item(s) to be measured. As the default setting, all available items
are selected.
4) <MEAS.> button (<START> button)
Starts measuring all components.
5) <BACK> button (ESC key)
Returns to the previous screen.
6) Short-cut keys
On the “Result of continuation measurement” dialog box, the following
short-cut keys are provided.
Keyboard
key
Operation
panel key
HOD key Operation
START Starts measuring all components
ESC Returns to the previous screen.
7) Question dialog box
Immediately after the system starts measuring all components continuously,
the dialog box, which asks you how to handle a component whose size is 1
mm or less after measurement, appears on the screen.

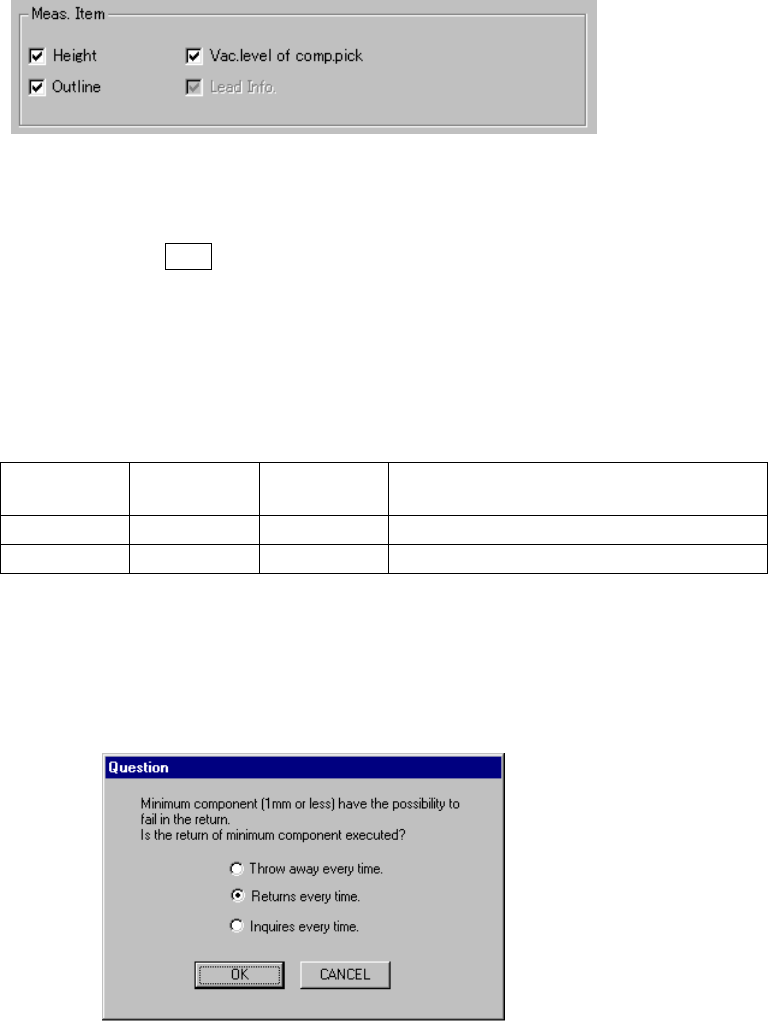

Figure 4.12.2.4.3.2 “Question - to return the minimum component” dialog box
① Throw away every time
Discards a component in a way you specified.
② Returns every time
Returns a component to its original position.
③ Inquires every time
Every time the system finishes measuring one component, it displays the
dialog box which asks you how to handle it if its size is 1 mm or less.
