SPECIFICATIONS for a CE machine

13 − 36

13.5.3 Recycling the Used Battery

Contact your recycling or hazardous waste center for information on proper disposal

of the used battery. We accept your battery for return at cost to you.

WARNING

• Do not dispose of battery or batteries in a fire. Batteries may

explode. Proper disposal of batteries is required. Refer to your local

codes for disposal requirements.

• Do not open or mutilate the battery or batteries. Released electrolyte

is harmful to the skin and eyes. It may be toxic.

CAUTION

• Do not discard the UPS or the UPS batteries in the trash. This

product contains sealed, local recycling or hazardous waste center.

SPECIFICATIONS

for a CE machine

SPECIFICATIONS FOR A CE MACHINE

1. Resume Production

If the Maintenance switch is set to “Auto Mode”, and one of the following events occur

during production: the cover is opened, the bank moves down, and the area sensor is

activated, the servo power supply is turned off and the system enters Resume Pause

mode.

In “Resume Pause” mode, if you recover the system from the error condition causing

this mode: the cover is opened or the bank moves down, and press the <START>

switch, the system can resume the current production.

Since a board remains clamped in Resume Pause mode, you can continue the

suspended production without recognizing marks again.

If the system cannot resume the production easily by picking up, recognizing or placing

a component, it discards the component that has not been used for production

completely, and resumes the production by picking up a new component. When the

system does not find any difficulty, it resumes the suspended production.

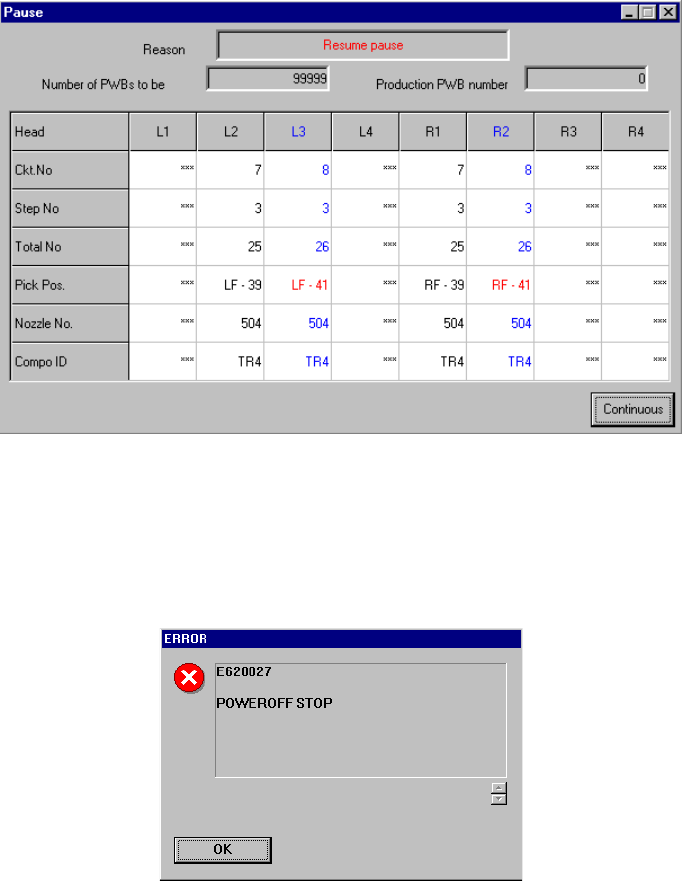

Figure 1.1 “Resume pause” dialog box

If an event causing the system to enter Resume Pause mode occurs when the system

already pauses due to other event, the system enters Resume Pause mode also.

However, the dialog box shown above does not appears, and the “POWEROFF”

message appears as shown in Figure 1.2.

Figure 1.2 POWEROFF message
