If the system enters Resume Pause mode as the result of the placement tracking
operation that is started from the continuous production or trial or blank production
operation, the system displays the “Place trace execution confirmation equipped with
state of Resume” dialog box as shown in Figure 1.6.
1.6 “Place trace execution confirmation equipped with state of Resume” dialog box
When you check the check box “The Place tracking with again is executed.” displayed
on the dialog box shown in Figure 1.6 and press the <START> switch, the system
resumes the suspended production after tracking a placement operation again.
When you press the <START> switch without checking this check box, the system
resumes the suspended production without tracking any placement operation. When
you press the <STOP> button, the system displays the “Abort” dialog box and starts
interrupting the current production.
If the system has not returned to the home position yet until you press the <START>
button, the “Question” dialog box for confirming the returning-to-home-position
operation appears on the screen as shown in Figure 1.4.
If the system has not returned to the home position yet until you interrupt the current
production in Resume Pause mode, the system automatically performs the same
operation as that to be executed when you click the <LOCK> button on the “Question”
dialog box shown in Figure 15.1.4, before interrupting the production.
1.1 Events preventing the system from entering Resume Pause mode
1.1.1 When the system cannot enter Resume Pause mode
• When the servo is unlocked while a nozzle is operating on an ATC, the system
generates a nozzle replacement error, and aborts the suspended production without
resuming it since the machine may be damaged.
• When the servo is unlocked while an axis is moving, the limit error occurs, and the
current production is aborted without allowing the system to enter Resume Pause
mode. If the limit error occurs, detach the axis from the limit switch, and return it to
its home position.
1.1.2 Events preventing the system from resuming the suspended production
• If the system enters Resume Pause mode while it is picking up, recognizing or
placing a long connector, the connector may drop off the system.
• When the system enters Resume Pause mode while the Z-axis is moving down to
palace a component on a board, the regulated precision of component placement
cannot be guaranteed.
4
2. Other push button switches

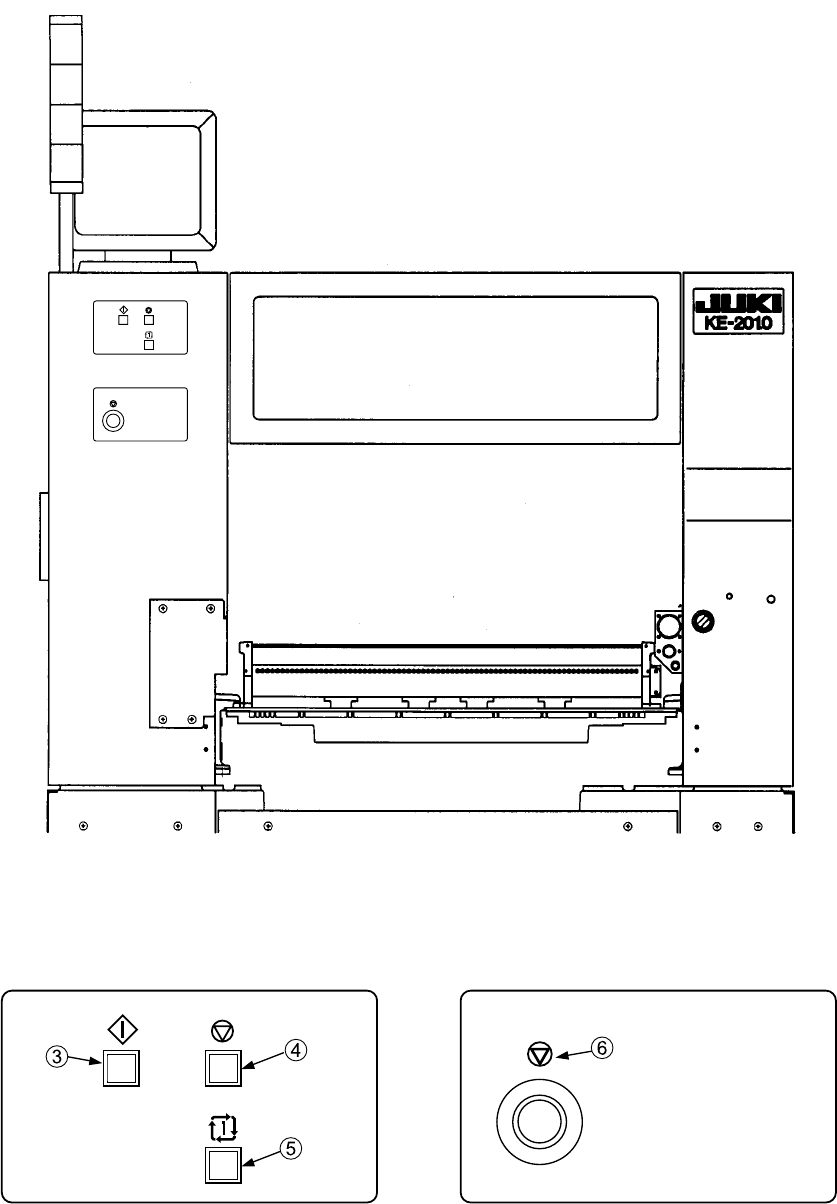

<Front view>
Figure 2.1
Figure 2.2
5
<Rear view>
Figure 2.3
Figure 2.4 Figure 2.5
