7 − 25 CA UTION To avoid a risk of injury, do not place y our hand in the machine, nor move your face or head close to the machine during operation of the HOD. Notes: * The same pick-up position, which is indicated w ith…
7 − 24
7.2.2.5 MTC shuttle pick position
When you select the [MTC shuttle pick position] command, the "MTC shuttle pick
position setting" dialog box appears on the screen as shown in Figure 7.2.2.5.1.
Figure 7.2.2.5.1 MTC shuttle pick position setting dialog box
(1) Setting items
No. Item Description
1 MTC shuttle pick position (X, Y, Z) Component pick-up position on the MTC shuttle
(2) Setting the position
- Key in X, Y and Z coordinate values directly from the keyboard.
- Use the HOD to teach and enter the coordinates. In this case, if the input
focus is located in any of the X, Y and Z fields, all of the values are taught,
then entered.
- To teach the Z coordinate, the input focus should be located in the “Z” field.
Even though the input focus is located in any of the Z fields, the values are
all taught, then entered to the “Large”, “Small” and “Clamp” items.
- When you select the device key of the HOD, the following message appears
on the screen. When you click the <Yes> button, a shuttle is pulled out
from an MTC.
Figure 7.2.2.5.2 “Question” dialog box
7 − 25
CAUTION
To avoid a risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine during operation of the
HOD.
Notes:
* The same pick-up position, which is indicated with "X" and "Y" and obtained by
teaching, is entered to all of the menu items displayed: "Large", "Small", "Clamp
L" and "Clamp S".
* If you use a twin-shuttle, you have to enter the coordinates to both of the "Pad #1"
and "Pad #2".
7 − 26
7.2.2.6 MTS position offset
When you select the [MTS position offset] command, the "MTS position offset setting"
dialog box appears on the screen as shown in Figure 7.2.2.6.1.

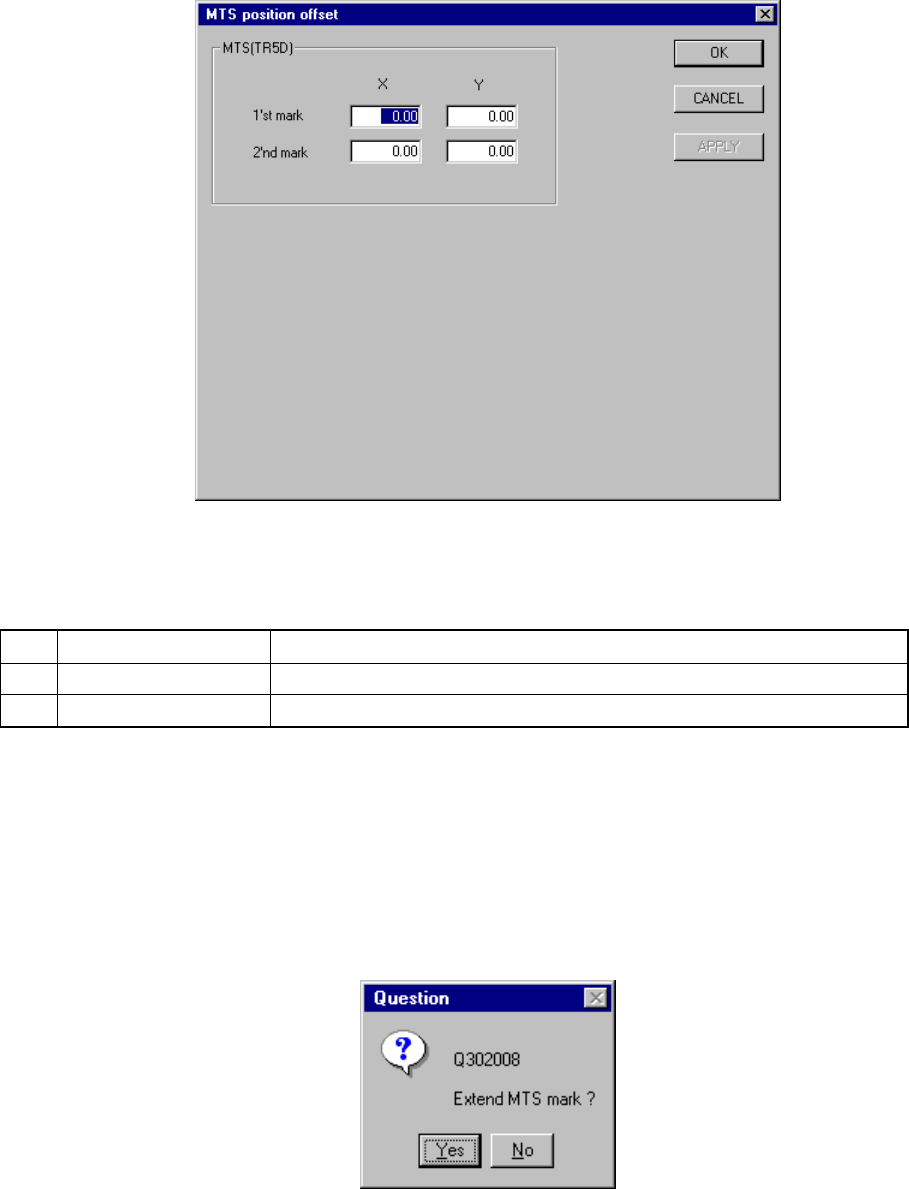

Figure 7.2.2.6.1 MTS position offset setting dialog box
(1) Setting items
No. Item Description
1 1'st mark (X,Y) First mark position of the MTS
2 2'nd mark (X, Y) Second mark position of the MTS
(2) Setting the position
− Key in X and Y coordinate values directly from the keyboard.
− Use the HOD to teach and enter the coordinates. In this case, if either X or
Y is in focus, both values are taught, then entered.
− When you select the device key of the HOD, the following message appears
on the screen. When you click the <Yes> button, the MTS bank mark is
found out.
Figure 7.2.2.6.2 Question dialog box
