10.3 Laser Sensor Height
When you select the [Set-up group] command on the menu bar, then select the
[Laser sensor height] command on the displayed menu, the following “Laser sensor
height” dialog box appears on the screen.

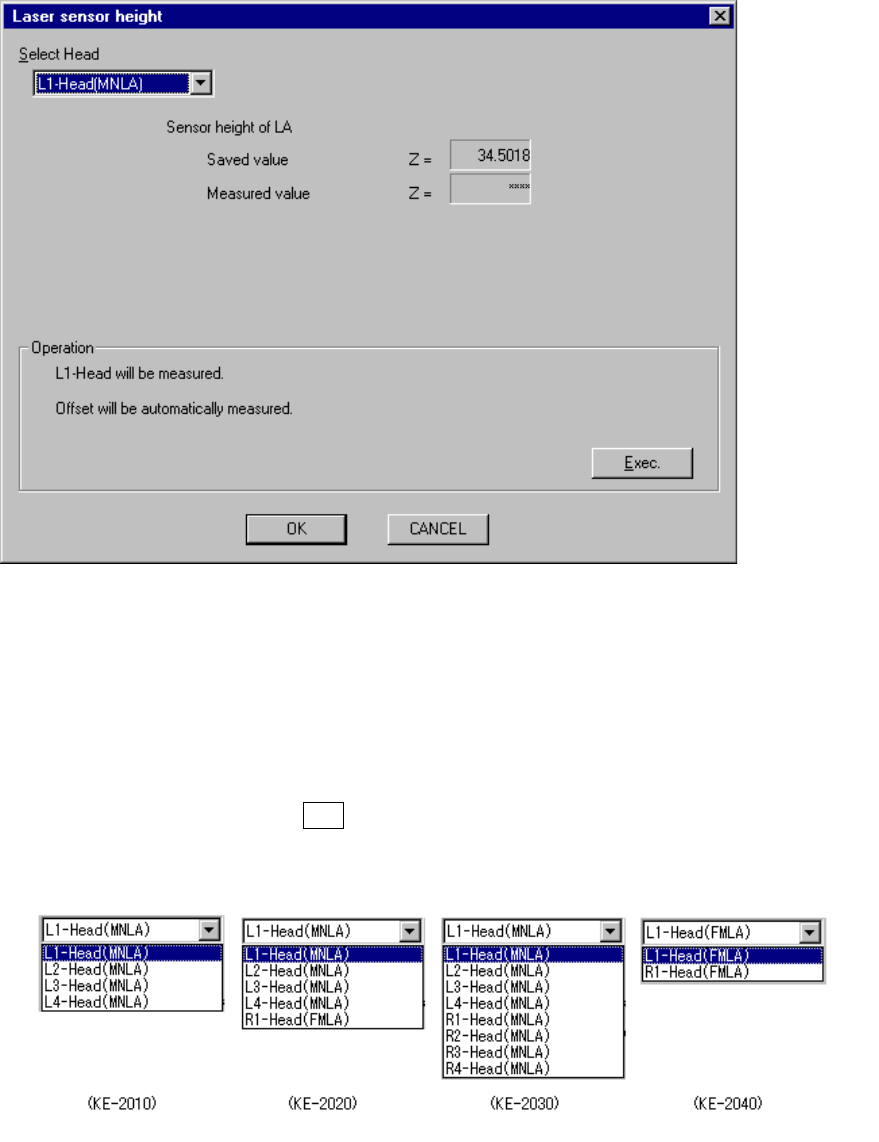

Figure 10.3.1 “Laser sensor height” screen
− Select Head
Using this combo box, select the head to be set.
The units which are not checked on the “Device enable” menu invoked from the
Machine Setup menu (that is, checked as “Not used”) cannot be selected
When you press the ALT key and the down arrow key at the same time, the
following list appears on the screen.
(When the left 1
head is selected)
(Height already set)
(Height measured)
10 − 6
(1) Setting items
No. Item Description
1 Sensor height of LA Height of the laser sensor viewed from the top of a board
(2) How to set
− For the head selected in the “Select Head” combo box, set the various values
by followings the instructions displayed on the dialog box.
− When you click the <OK> button, your setting becomes valid (but not be
saved at this point).
− When you click the <CANCEL> button, your setting becomes invalid.
− How to operate
By following the instructions displayed, the appropriate value is automatically
obtained.
(When the left 1 head is selected)
The head selected in the “Select Head” combo box is to be set.
Select the <Exec.> button.

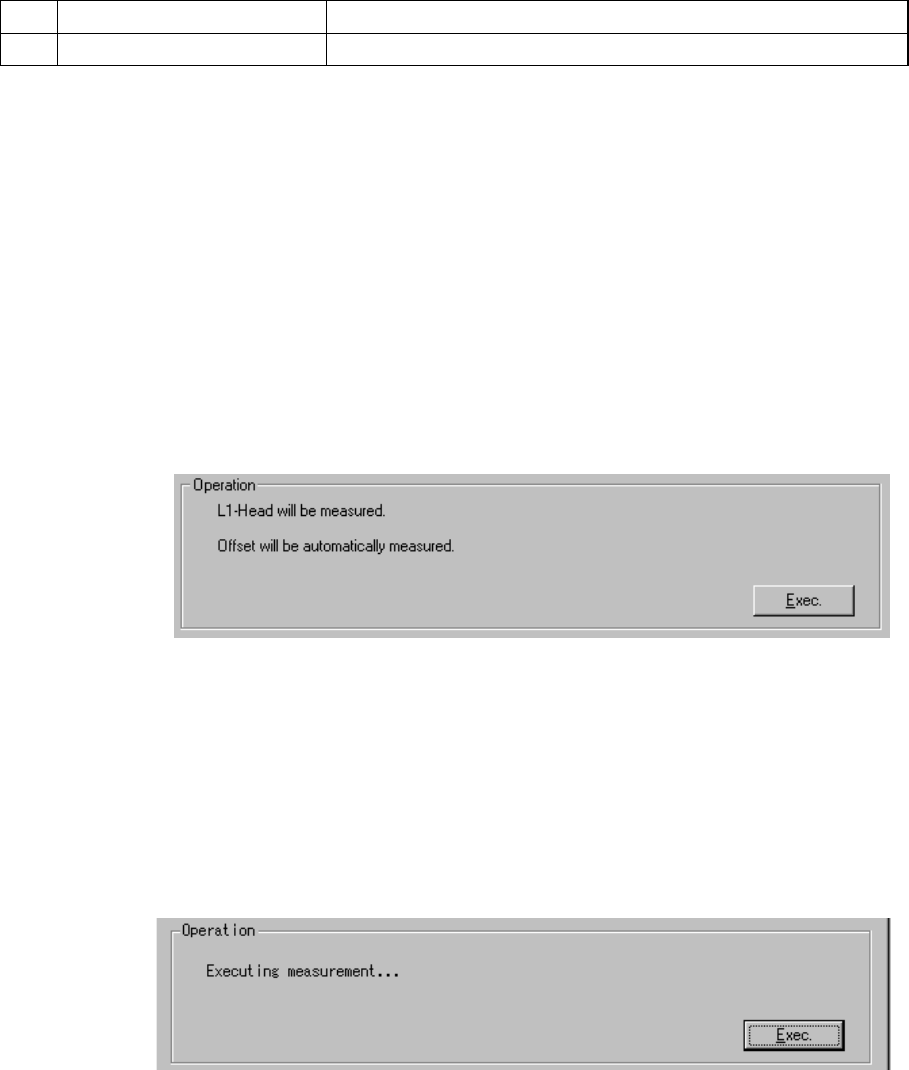

When you select the <Exec.> button, the nozzle (No. 500, 501 or 502) is
attached onto the head, and the laser sensor height is automatically
measured.
− Measurement operation
① The nozzle (No. 500, 501 or 502) is attached on the selected head.
An error occurs if the nozzle is not set for the ATC. In this case, assign
the nozzle on the “ATC nozzle setup” menu which is invoked from the
Machine Setup menu.
10 − 7
② Using the laser alignment unit, measure the laser sensor height.
(When the left 1 head is selected)

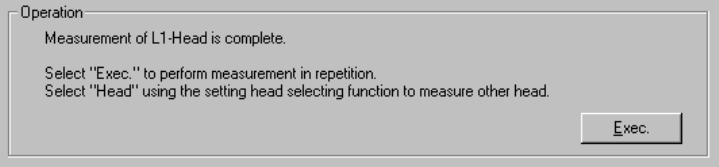

The machine has finished measuring the selected head.
To repeat the measurement operation, click the <Exec.> button.
When you click the <Exec.> button, the previous screen reappears.
To measure another head, select the desired head in the “Head” combo box.
When you change the head in the “Select Head” combo box, the initial screen
appears.
To quit Self calibration mode, click the <OK> button.
