8 − 10 8.2 Head-Related Control 8.2.1 Head control W hen y ou select t he [Head] command on t he [Ctrl] menu, t hen the [Head contr ol] command, t he following Head contr ol dialog box appears on the scr een. Figure 8.2.…
8 − 9
5) Blow cont.
Sets the blow of the selected head to ON or OFF.
6) Lighting cont.
Turns ON and OFF the light of the OCC.
7) Polarity cont.
Sets the polarity of the OCC to positive (+) or negative (-).
8) Sensor cont.
Sets the selector sensor to ON or OFF.
8 − 10
8.2 Head-Related Control
8.2.1 Head control
When you select the [Head] command on the [Ctrl] menu, then the [Head control]
command, the following Head control dialog box appears on the screen.
Figure 8.2.1 Head control dialog box
(1) Control unit
Select the unit to be controlled from the combo box.
This setting does not affect the setting of the “Device enable” menu invoked
from the Machine Setup menu. (This means that the units without check mark,
that is not to be used, can be selected.)
The following list appears when you press the ALT key and ↓ key at the
same time.
8 − 11

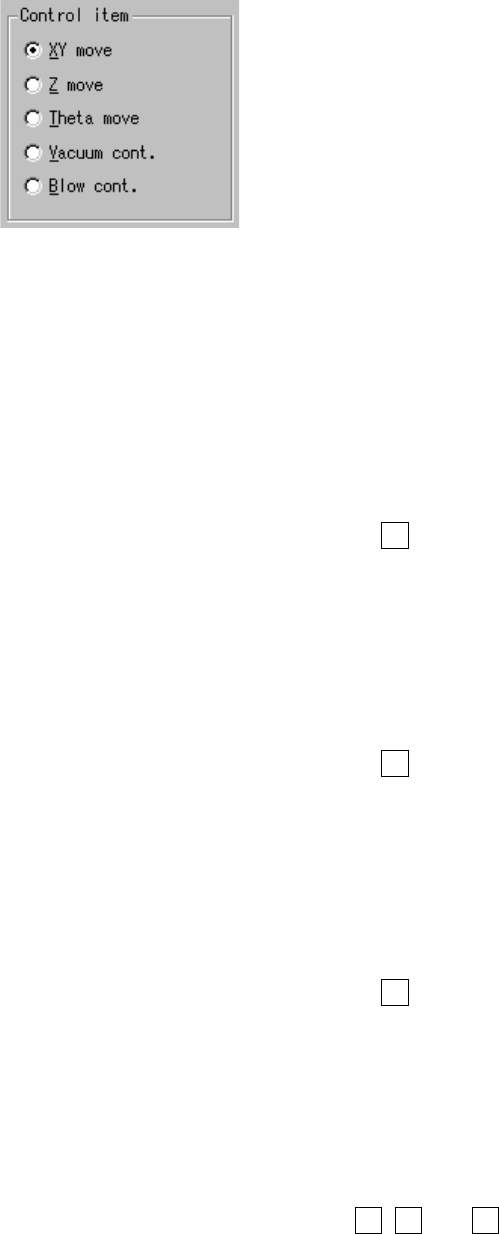

(2) Control item
Select the control item with a radio button.
(3) Control button
Each control item can be executed with the corresponding control button.
The display of the control buttons differs depending on the control item
selected.
1) Moving the X- and Y- axes
When the control item “XY move” is checked, enter the destination
coordinates, then click the <EXEC> button or press the F3 key. The head
starts moving by referring to the selected control unit position.
The display of the coordinates is updated when the movement has been
completed.
2) Moving the Z axis
When the control item “Z move” is checked, enter the destination
coordinates, then click the <EXEC> button or press the F3 key. The head
starts moving by referring to the selected control unit position.
The display of the coordinates is updated when the movement has been
completed.
3) Moving the θ axis
When the control item “Theta move” is checked, enter the destination
coordinates, then click the <EXEC> button or press the F3 key. The theta
axis starts moving by referring to the selected control unit position.
The display of the coordinates is updated when the movement has been
completed.
4) Controlling the vacuum
When the control item “Vac. cont.” is checked, click one of the <ON>,
<OFF)> and <ON/OFF> buttons, or press one of the F3, F4 and F5 keys.
The display of the vacuum level is updated when the control has been
completed.
