7 − 33
7.2.2.10.2 Option Device Enable
When you select the tab “Option Device enable”, the “Option Device enable”
setting dialog box appears on the screen as shown in Figure 7.2.2.10.2.

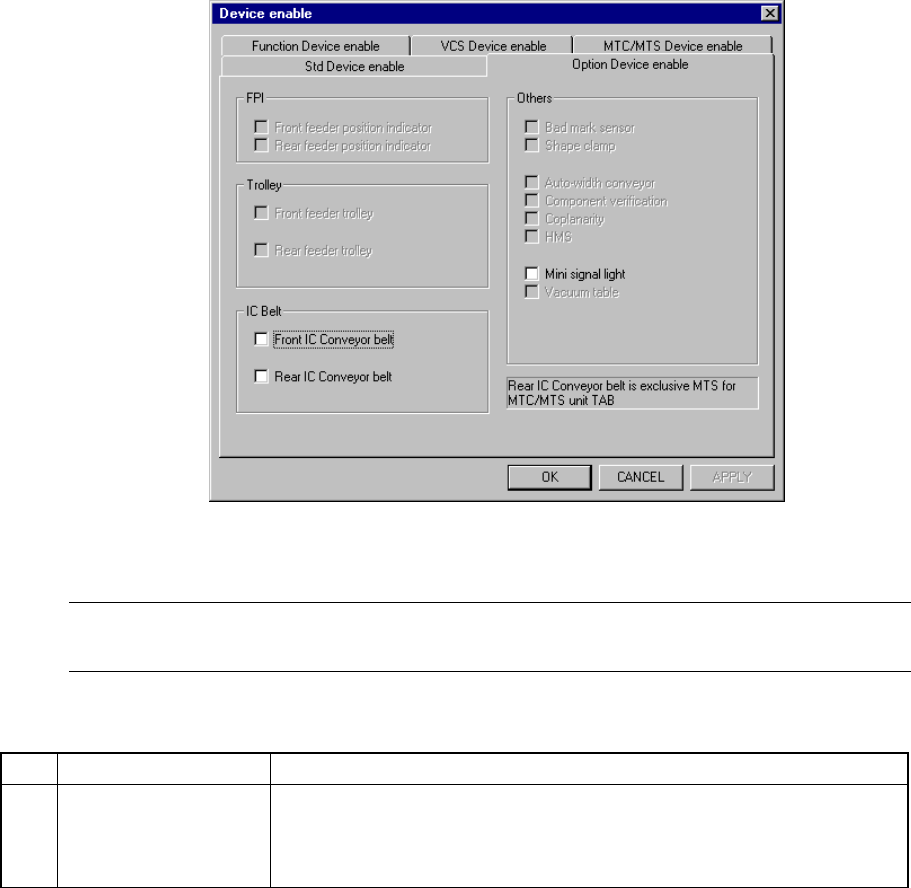

Figure 7.2.2.10.2 “Option Device enable” setting dialog box
(Screen example when a KE-2020 is used)
Note: Data displayed under the “Trolley” and “IC belt” menu items of the dialog box
above varies depending on the model you use (see Table 7.2.2.10.2).
(1) Setting items
No. Item Description
1 Option Device enable Unit to be used/not used
When you specify a malfunctioning unit as “a unit not used” on this dialog
box, you can allow the machine to pick up and place a component without
modifying the production program data.
Table 7.2.2.10.2 shows whether a component is actually placed on a board or
not if the production program requires the unit defined as to be used in order
to complete component placement operation.
(2) Setting the unit
− Specify the device unit to be used with the check box.
− A device unit that is not installed as an option (dimmed on the dialog box)
cannot be checked.
− Zeroing is required again when you change the head status from “Not to be
used” to “To be used”.
7 − 34
(3) Production operation
Table 7.2.2.10.2 Placement when a unit is set as “Unused”
No. Unit Production operation
1 Feeder positioning indicator
(front, rear)
This function is disabled but placement of components is carried out.
2 Feeder trolley
(front, rear)
KE2010,2020,2040
(front L, front R, rear L, rear R)
KE2030
This function is disabled but placement of components is carried out.
3 IC Conveyor belt
(front, rear) (Not available for a
KE-2030)
This function is disabled but placement of components is carried out.
4 Bad mark sensor This function is disabled but placement of components is carried out.
5 Shape clamp Offset adjustment of the mark position when mark is used or of the
placement point when mark is not used is not carried out.
Offset adjustment is made by referring to the mark for placement
when mark is used.
6 Auto-width conveyor This function is disabled but placement of components is carried out.
7 Component verification The machine does not perform the component verification function
even though this function is designated.
8 Coplanarity Placement is carried out without performing coplanarity even when
component coplanarity is designated.
9 HMS This function is disabled but placement of components is carried out.
10 Mini signal light This function is disabled but placement of components is carried out.
11 Vacuum table This function is disabled but placement of components is carried out.
7 − 35
7.2.2.10.3 Function Device enable
A screen appears as shown in Figure 7.2.2.10.3 “Function Device enable setting”
dialog box appears when the [Function Device enable] tab is selected
When "MTS" is selected on the "MTC/MTS Device enable" dialog box, the menu
items are changed to "Bank mark Recognition [Rear (MTS)]".

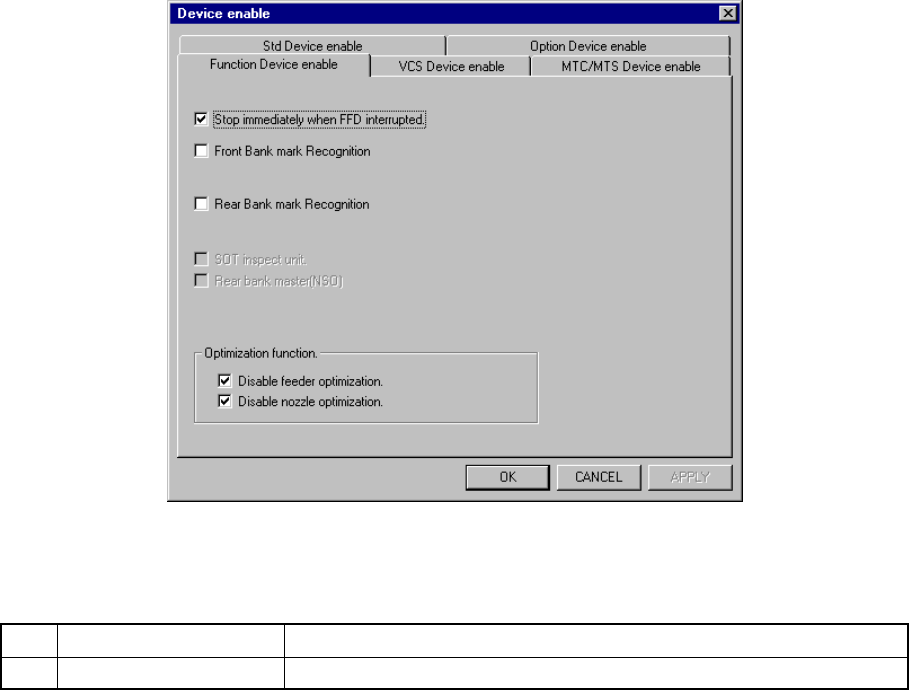

Figure 7.2.2.10.3 Function Device enable setting dialog box
(1) Setting items
No. Item Description
1 Function Device enable Function to be used/not used
If the production program requires the functions above to place components
on a board successfully, and you specify them as “unused”, see Table
7.2.2.10.3 which shows whether components are placed actually.
Limitations put on operations of the machine if you check any of check boxes
of the “Optimization function” group are described in Table 7.2.2.10.4.
(2) Setting the unit
− Specify the device unit to be used with the check box.
− Any unit without option setting being made as the MS parameter cannot be
checked.
Zeroing is necessary again when changing the head status from as not to be
used.
− Back Master-Bank [Non-stop]
− Specifies the position of the master bank during Non-stop operation.
− You can specify this setting regardless of the PWB transport reference
side.
− The setting of the check box “Alternate” on the “Function enable” tab
invoked from the Operation option dialog box is preferred.
