10 − 18
(2) How to set
− Follow the instructions displayed to set the VCS selected in the “Select VCS”
combo box.
− When you click the <OK> button, your setting becomes valid (but not saved at
this point).
− When you click the <CANCEL> button, you setting becomes invalid.
− How to operation
Follow the instructions displayed to obtain the appropriate value automatically.

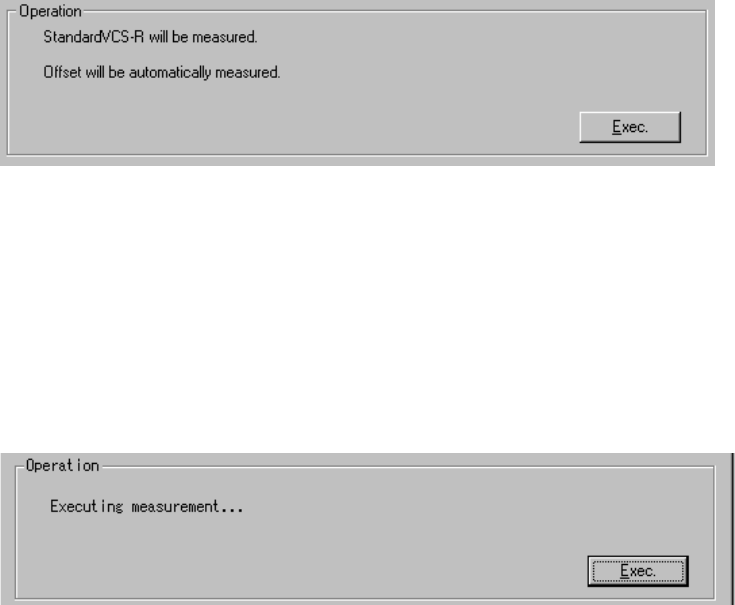

(When the right standard VCS is selected)
The machine sets up the VCS selected in the “Select VCS” combo box.
Select the <Exec.> button.
When you select the <Exec.> button, the machine measures a binary-coded
threshold after mounting the No. 508 nozzle to move it on the selected VCS
camera.
− Measurement operation
① Attach the No. 508 nozzle onto the FMLA head.
An error occurs if the nozzle is set for the ATC. In this case, assign the
nozzle on the “ATC nozzle setup” menu invoked from the Machine Setup
menu.
② Move the FMLA head to the position where the selected VCS camera
recognizes.
③ The machine uses the selected VCS to measure a binary-coded
threshold.
10 − 19

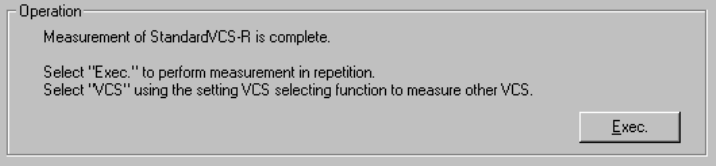

(When the right standard VCS is selected)
The machine has finished measurement operation.
To repeat the measurement operation, select the <Exec.> button.
When you select the <Exec.> button, the previous screen reappears.
To measure another VCS, select the desired VCS in the “Select VCS” combo
box.
When you change the VCS to be set in the “Select VCS” combo box, the
initial screen appears.
To quit Self-calibration mode, select the <OK> button.
10 − 20
10.8 Vacuum Calibration
When you select the [Vacuum calibration] command on the "Set-up group" command
menu, the following "Calibration of vacuum" dialog box appears on the screen.

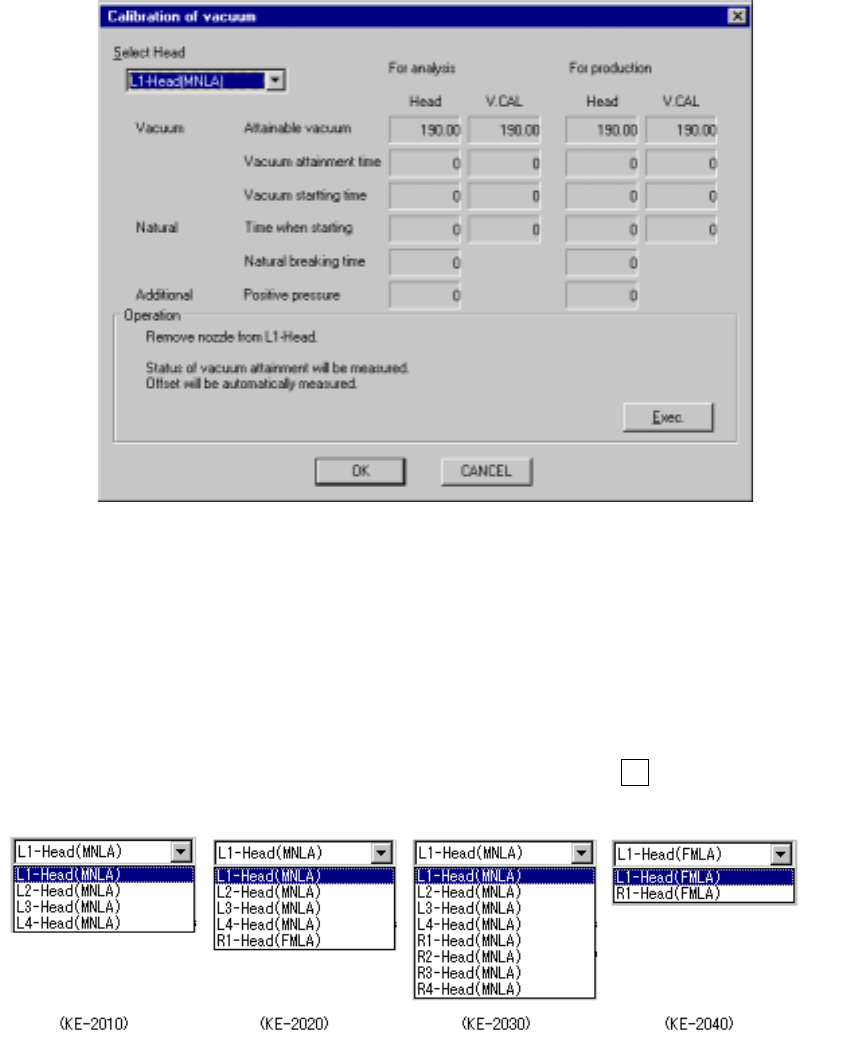

Figure 10.8 Calibration of vacuum dialog box
− Select Head
Select the head to be set from the combo box.
You cannot a unit which was not checked (not used) on the "Device enable" dialog
box invoked from the Machine Setup menu.
− When you press the down arrow key while holding down the Alt key, the following
list appears on the screen.
