13 − 14
13.3.2 Transport sensors
Remove dirt and dust on the sensors.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, turn off the power of the machine before
following the operation above.

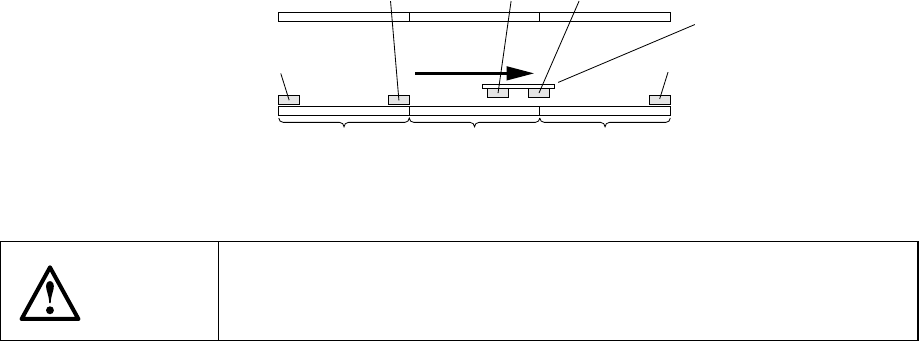

Wait sensor Stop sensor C-OUT sensor
Stopper
Out sensor
Transport
direction
In sensor
Input buffer
station
Centering
station
Output buffer
station
13 − 15
13.3.3 Laser align sensor
Check to see if there is any dirt on the sensor window.
If the sensor window is dirty or unclear, clean it with clean cloth or gauze lightly
moistened with alcohol.
Note: If you use not alcohol but any solution such as acetone and thinner, the resin
part around the sensor window may fuse. Never use any solvent other than
alcohol.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
Sensor window
13 − 16
13.3.4 Nozzle
Clean a nozzle with putting it into a supersonic cleaning bath containing alcohol. After
cleaning, blow off alcohol inside the nozzle with an air gun or similar device, install the
nozzle on the ATC unit again, and perform the "ATC nozzle setup" menu item on the
Machine Setup menu.
Clean a nozzle with a supersonic cleaning bath for five minutes. Dampen soft cloth
with alcohol and use it to clean the urethane part and any part of the nozzle diffuser
on which stains remain stuck to even after you use a supersonic cleaning bath to
clean it.
After cleaning a nozzle, apply New Deflex Oil No. 1 to a nozzle slider to protect the
inside of the nozzle from rust.
Notes: 1. Do not install the nozzle to the head, but install it in the ATC unit.
2. Since the urethane part of nozzles 505, 506, 507 and 508 may be degraded
or flake off when they are damped into alcohol for a long time, turn the
nozzle upside down and insert it to the bath as shown in the figure below so
that any urethane part cannot be dampened into alcohol.
3. Never use any solvent (such as acetone) other than alcohol.
4. Never disassemble a nozzle.
5. After cleaning the nozzle, do no apply any grease other than New Deflex oil
No.1 to it.
6. Be careful not to apply any New Deflex Oil No. 1 to the nozzle diffuser and
rubber section.
Recommended alcohol
We recommend IPA or ethanol due to its cleaning effectiveness, cost and availability.
Recommended solvent : IPA (isopropyl alcohol) or ethanol
Rubber
Beaker
Alcohol
