6 − 102 Step ② ② ② ② . W hen there is a board on the PW B transport pat h and the PW B transport pat h infor mation indicates t hat there is no boar d on the path W hen y ou select “Load a new PW B”, the screen shows the…

100%1 / 1361
6 − 101
Ⅱ
ⅡⅡ
Ⅱ
When there is no continuous production file
Step
No.
Production
operation
Whether a
board is
located on the
PWB transport
path
Information on
the PWB
transport path
obtained when
production was
interrupted
Operation after you press
the <START> key
①
Yes
A board is
located on the
path.
The radio button “Load a new PWB” is not
selectable.
②
Yes No board
After ejecting a board, the system loads a
new board before start of production, and
then starts a new production or resumes the
current production.
③
Yes No information
After ejecting a board, the system loads a
new board before start of production, and
then starts a new production or resumes the
current production (Be careful to start
production).
④
None
A board is
located on the
path.
⑤
None No board
The system starts a new production or
resumes the current production.
⑥
Production
after a board is
loaded (when
you select
“Load a new
PWB”)
None No information
The “Processing before production begins”
dialog box does not appear on the screen.
(The system starts a new production or
resumes the current production
immediately.)
⑦
Yes
A board is
located on the
path.
After clamping a board again, the system
starts new production or resumes the
current production without loading any
board before starting production.
⑧
Yes No board
The radio button “Re-clamp current PWB” is
not selectable.
⑨
Yes No information
After clamping a board again, the system
starts new production or resumes the
current production without loading any
board before starting production. (Be
careful to start production.)
⑩
None
A board is
located on the
path.
⑪
None No board
An error (There is no board.)
⑫
Production
after a board is
clamped again
(when you
select
“Re-clamp
current PWB”)
None No information
The “Processing before production begins”
dialog box does not appear on the screen.
(The system starts new production or
resumes the current production
immediately.)
Step
①
①①
①
.
When there is a board on the PWB transport path and the PWB transport path
information indicates that there is a board on the path when production is interrupted
You cannot select the radio button “Load a new PWB”.
6 − 102
Step
②
②②
②
.
When there is a board on the PWB transport path and the PWB transport path
information indicates that there is no board on the path
When you select “Load a new PWB”, the screen shows the following PWB transport
path condition:

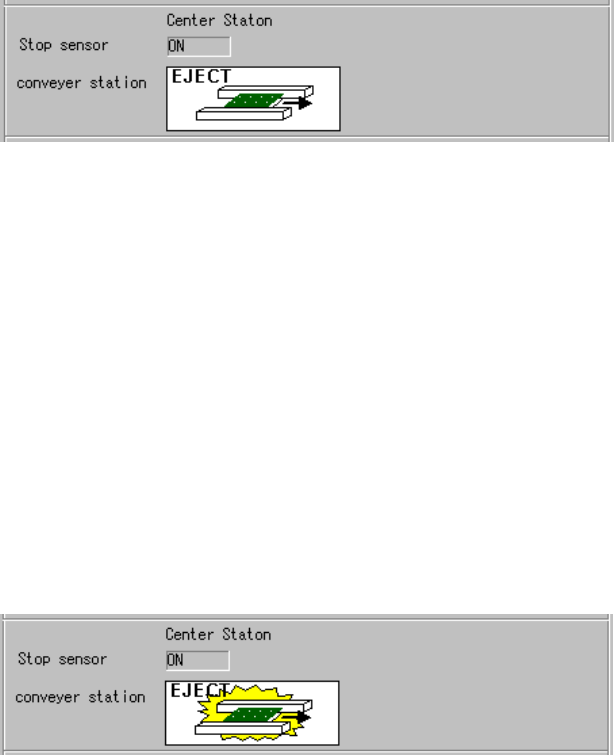

Figure 6.4.14.1.6
①
①①
①
Condition of the PWB transport path
− When you execute the selection described above, the “PWB ejecting” dialog box
appears on the screen. After ejecting a board, the system loads a new board
before starting production, and then starts a new production or resumes the
current production.
Since the system obtains the PWB transport path information when production is
interrupted, it functions with assuming that there is a board produced by the
previous production on the PWB transport path.
Step
③
③③
③
.
When there is a board on the PWB transport path and the system has no PWB
transport path information obtained when production is interrupted
When you select the radio button “Load a new PWB”, the screen shows the following
PWB transport path condition:
Figure 6.4.14.1.6
②
②②
②
− When you execute the selection described above, the “PWB ejecting” dialog box
appears on the screen. After ejecting a board, the system loads a new board
before starting production, and starts new production or resumes the current
production.
In this case, since the system obtains the PWB transport path information when
production is interrupted, it functions with assuming that there is a board produced
by the previous production on the PWB transport path. Check the ejected board
carefully because some component may not be placed on it.
6 − 103
Steps
④
④④
④
to
⑤
⑤⑤
⑤
.
When there is no board on the PWB transport path, and the PWB transport path
information indicates that there is a board on the path or there is no board on the path
When you select “Load a new PWB”, the screen shows the following PWB transport
path condition:

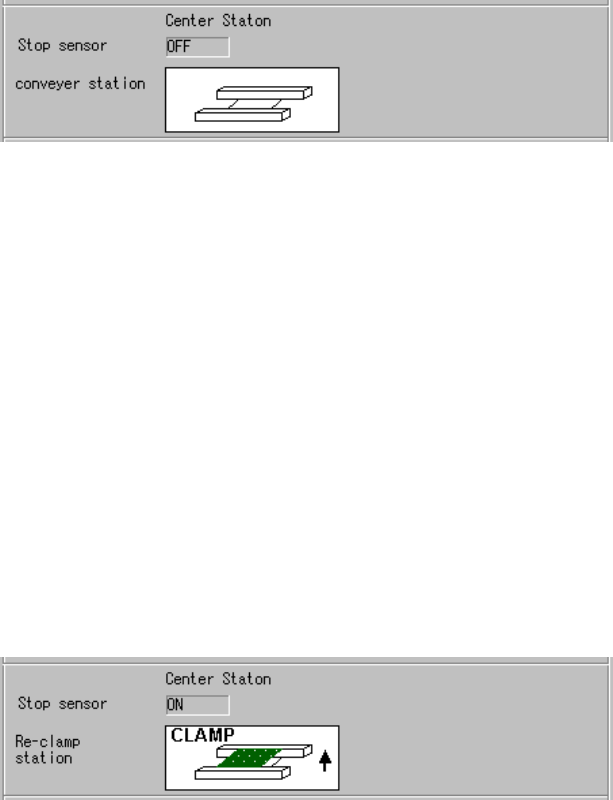

Figure 6.4.14.1.6
③
③③
③
Condition of the PWB transport path
− When you execute the selection described above, the system loads a new board
before starting production, and starts new production or resumes the current
production.
Step
⑥
⑥⑥
⑥
.
The “Processing before production begins” dialog box does not appear on the screen.
The system starts new production or resumes the current production immediately.
Step
⑦
⑦⑦
⑦
.
When there is a board on the PWB transport path and the PWB transport path
information indicates that there is a board on the path
When you select “Re-clamp current PWB”, the screen shows the following PWB
transport path condition:
Figure 6.4.14.1.6
④
④④
④
Condition of the PWB transport path
− When you execute the selection described above, the “Re-clamp” dialog box
appears on the screen. After clamping a board again, the system starts new
production or resumes the current production without loading any board before
starting production.
In this case, since the system obtains the PWB transport path information when
production is interrupted, it functions with assuming that there is a board produced
by the previous production on the PWB transport path.
