13 − 26
13.4 Lubrication

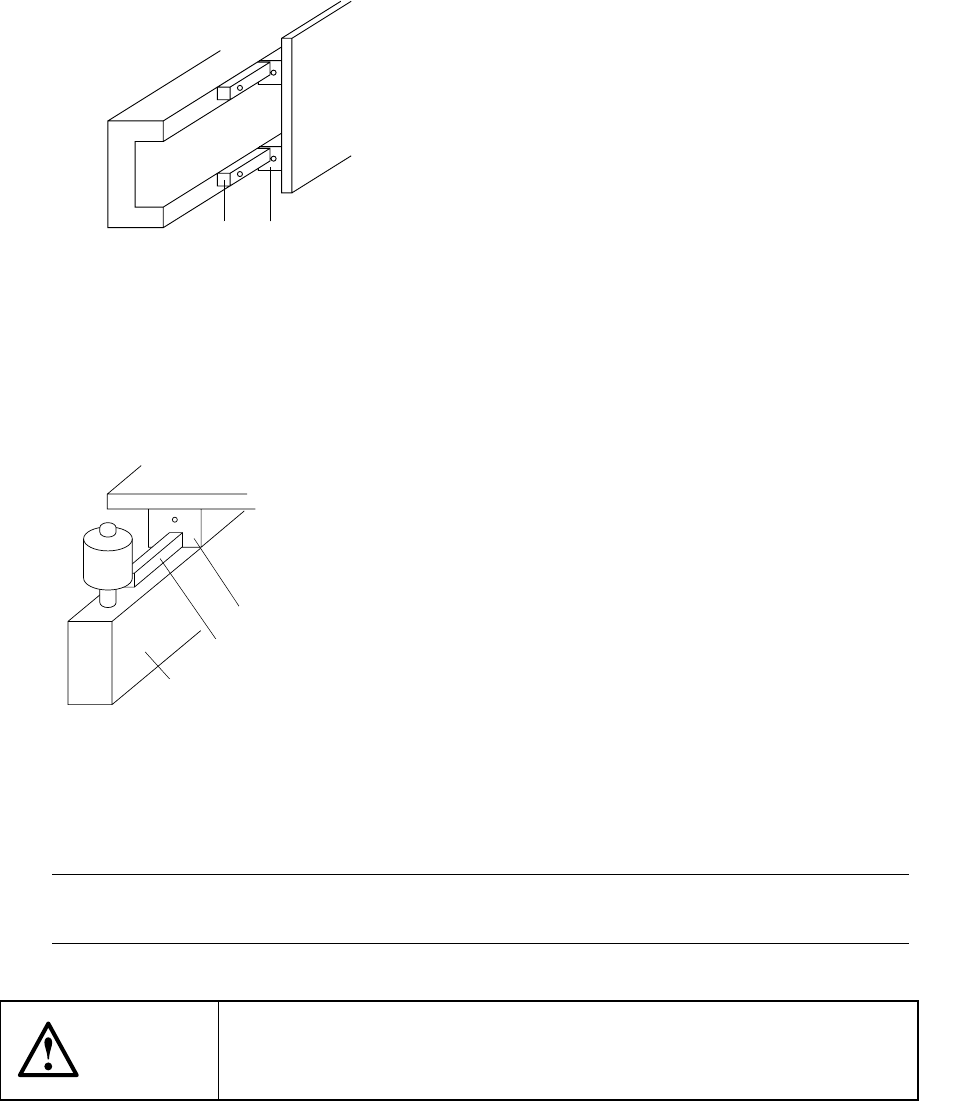

13.4.1 XY-shaft direct drive unit
(1) X-shaft direct-drive unit
Use a grease gun to insert grease from the grease nipple of the X-shaft
direct-drive unit.
(2) Y-shaft direct-drive unit
Use a grease gun to insert grease from the grease nipple of the Y-shaft
direct-drive unit.
Note: Never lubricate the bearing of the X- and Y-shaft driving belt or motor (with
machine oil or grease).
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
①
②
②
①
③
① Y-shaft frame (x 2)
② Y-shaft direct-drive unit rail (x 2)
③ Y-shaft direct-drive unit (x 4)
① X-shaft direct-drive unit rail (x 2)
② X-shaft direct-drive unit (x 4)
13 − 27

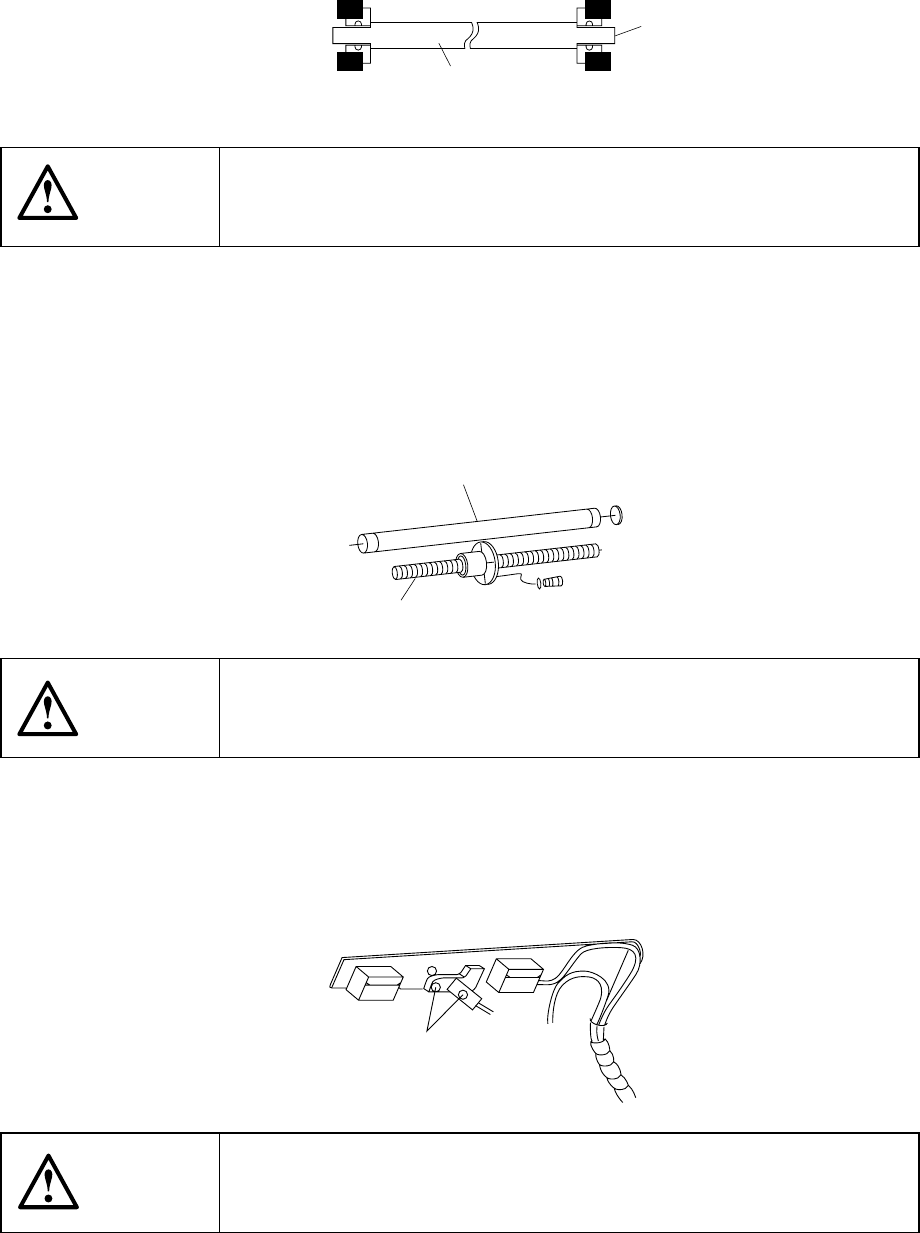

13.4.2 Transport screw shaft (Shaft)
Screw shaft (one for left and the other for right)
Apply grease to the entire surface of the part marked with *.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
13.4.3 Transport guide shaft
Guide shaft (one for left and the other for right)
Apply grease to the entire surface of guide shaft.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
13.4.4 PWB stopper part
Apply grease to the holes marked with *.
*
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
Screw shaft
Guide shaft
Screw
13 − 28

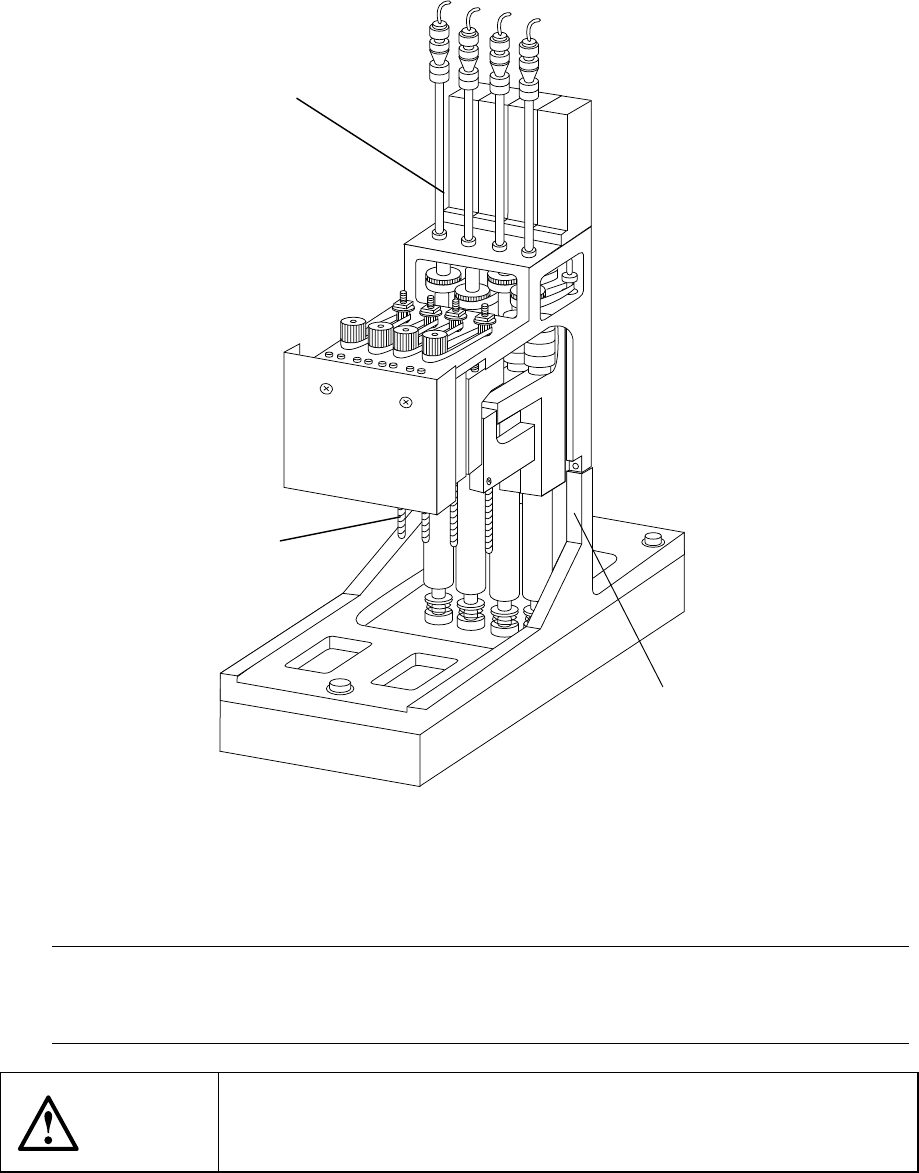

13.4.5 Ball screws and Linear way (Head part)
Apply a light coating of grease (C grease) to the ball screws and the linear way rails.
Apply a light coating of grease (C grease) to the spline shaft axis.
After applied the grease, move the Z axis by hand for the grease to be fit.
After fitting grease to the spline shaft axis sufficiently, remove extra grease with cloth
or similar matter so that it cannot be splattered.
① Ball screws
② Linear way
③ Spline shaft
Notes: Never apply any grease other than C grease to the parts above.
When C grease is mixed with another type of grease, it may be separated from
the screw, rails or shaft and run down.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
①
②
③
