4 – 173
(1) Changing the “Component supply count” setting
To change the “Component supply count” setting, select the line of a component
whose quantity is to be changed, then click the <Change> button or double click
the line of a component.
The dialog box appears on the screen as shown below. Enter the number of
components to be supplied.

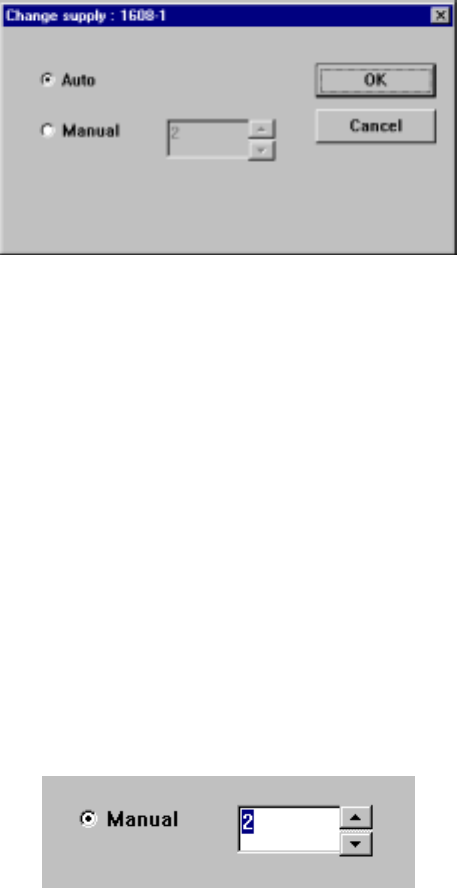

Figure 4.10.4.4 “Change supply” dialog box example
• Auto The number of the components selected to be supplied is
automatically set. The Optimization utility optimizes the number of
feeders so that it can be within the upper limit of available resources
(number of nozzles and feeders). The number of reels or trays for
available components is assumed not to be restricted.
• Manual Manually change the number of components to be supplied. The
Optimization utility assigns feeders or trays according to the specified
number of components. Note that a feeder of which placement point
has not been assigned is deleted, so the number of components may
be less than the specified number.
Select the edit box, then enter a number directly from a keyboard, or click either of the
arrow buttons next to the edit box to set it.
Figure 4.10.4.5 Example for manually setting the number of components to be supplied
4 – 174
(2) Initializing the “Component supply count” setting
The <Initialize> button sets the “Component supply count” automatically or sets it
to the minimum number. When you click the <Initialize> button, the following
dialog box appears on the screen.
When you select the “Auto” radio button, you can set the upper limit of
“Component supply count” in the "Limit firld".
The default value is 20.
Figure 4.10.4.6 Example for manually setting the number of components to be supplied
• Auto Initializes each “Component supply count” automatically
in the same manner as the “Auto” radio button selection
does on the Change supply dialog box.
• Minimum Initializes each “Component supply count” to the total
number of the corresponding components in Pick data.
• OK Your change will take effect on the Component Supply
Count dialog box.
• Cancel Cancels your change.
• Save Limit as default: The system registers the upper limit value as the default
value. This value is used to create a new program by
default.
(3) OK
Saves the settings and closes the Component supply count dialog box.
(4) Cancel
Cancels the settings and closes the Component supply count dialog.
4 – 175
4.11 Display
① Component form and Component list
If you invoke these commands when Component data appears on the screen, they
changes the Component data display method: form or list. See the Section on
the basic operations of Component data.
② Vision Form and Vision List
See Section 5.2.2 “Basic operation” of Chapter 5 “VCS”.
③ Feeder layout
See the Section on the feeder layout.
④ Tool bar
This command displays or hides the tool bar on the screen.
4.11.1 Feeder layout
When you select the [Feeder layout] command on the Display (V) menu, it
graphically displays the feeder layout per each station according to the list of Pick
data. Mounting or not mounting of each feeder is displayed to allow you to know it
easily.
Figure 4.11.1.1 Selecting the [Feeder layout] command
