6 − 103
Steps
④
④④
④
to
⑤
⑤⑤
⑤
.
When there is no board on the PWB transport path, and the PWB transport path
information indicates that there is a board on the path or there is no board on the path
When you select “Load a new PWB”, the screen shows the following PWB transport
path condition:
Figure 6.4.14.1.6
③
③③
③
Condition of the PWB transport path
− When you execute the selection described above, the system loads a new board
before starting production, and starts new production or resumes the current
production.
Step
⑥
⑥⑥
⑥
.
The “Processing before production begins” dialog box does not appear on the screen.
The system starts new production or resumes the current production immediately.
Step
⑦
⑦⑦
⑦
.
When there is a board on the PWB transport path and the PWB transport path
information indicates that there is a board on the path

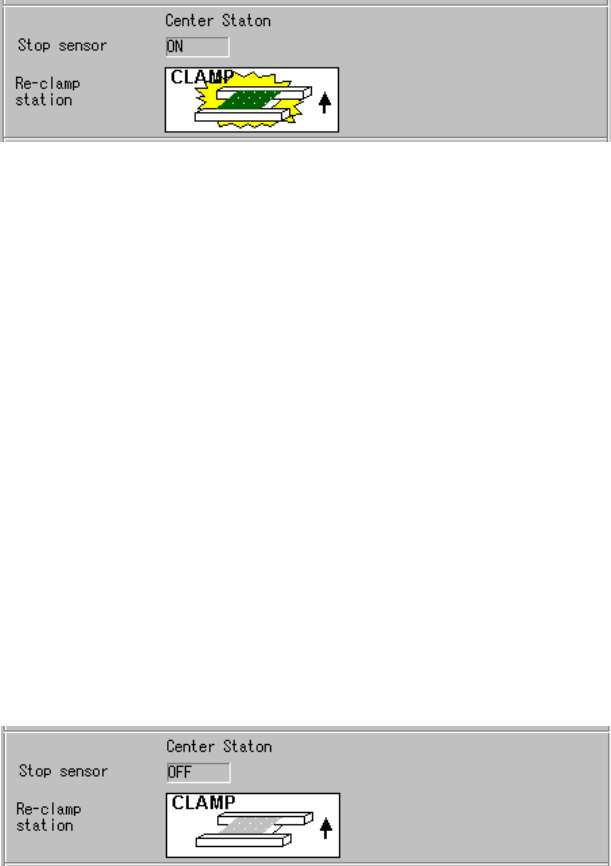

When you select “Re-clamp current PWB”, the screen shows the following PWB
transport path condition:
Figure 6.4.14.1.6
④
④④
④
Condition of the PWB transport path
− When you execute the selection described above, the “Re-clamp” dialog box
appears on the screen. After clamping a board again, the system starts new
production or resumes the current production without loading any board before
starting production.
In this case, since the system obtains the PWB transport path information when
production is interrupted, it functions with assuming that there is a board produced
by the previous production on the PWB transport path.
6 − 104
Step
⑧
⑧⑧
⑧
.
When there is a board on the PWB transport path and the PWB transport path
information indicates that there is no board on the path when production is interrupted
You cannot select “Re-clamp current PWB”.
Step
⑨
⑨⑨
⑨
.
When there is a board on the PWB transport path and the system has no PWB
transport information obtained when production is interrupted
When you select “Re-clamp current PWB”, the screen shows the following PWB
transport path condition:
Figure 6.4.14.1.6
⑤
⑤⑤
⑤
PWB transport path condition
− When you execute the selection described above, the “Re-clamp” dialog box
appears on the screen. After re-clamping a board, the system starts new
production or resumes the current production without loading any board before
starting production.
In this case, since the system obtains the PWB transport path information when
production is interrupted, it functions with assuming that there is a board produced
by the previous production on the PWB transport path. If the system starts new
production or resumes the current production after re-clamping a board, some
component(s) may not be placed on a board or may be placed at a wrong position.
Be sure to start production carefully.
Step
⑩
⑩⑩
⑩
.
When there is no board on the PWB transport path and the PWB transport path
information indicates that there is a board on the path
When you select “Re-clamp current PWB”, the screen shows the following PWB
transport path condition:
Figure 6.4.14.1.6
⑥
⑥⑥
⑥
Condition of the PWB transport path
− When you execute the selection described above, an error occurs since there is
no board on the PWB transport path.
6 − 105
Step
⑪
⑪⑪
⑪
.
When there is no board on the PWB transport path and the PWB transport path
information indicates that there is no board on the path when production is interrupted

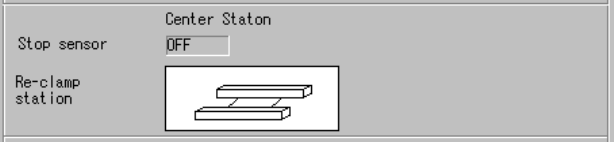

When you select “Re-clamp current PWB”, the screen shows the following PWB
transport path condition:
Figure 6.4.14.1.6
⑦
⑦⑦
⑦
Condition of the PWB transport path
− When you execute the selection described above, an error occurs since there is
no board on the PWB transport path.
Step
⑫
⑫⑫
⑫
.
The “Processing before production begins” (displayed if there is no continuous
production file) does not appear on the screen.
The system starts new production or resumes the current production immediately.
