6 − 121
6.6 Blank Run
When you select the [Production conditions] command from the menu bar, then the
[Dry Run] command on the displayed menu, the "Dry Run conditions" menu appears
on the screen.
(1) Setting items
No. Item Description
1 Setting items
selection
Switch the dialog box to be displayed on the screen among: Production
conditions dialog box, Trial Run conditions dialog box, and Dry Run conditions
dialog box.
2 Prod. PWB Set the number of boards for blank run.
3 Sequence Select the order of placement sequence: the input order or Opt. (optimized)
order.
4 Exec. mode Select continuous production or step-by-step production.
5 Placement ofs. Designate offset for all placement positions. This offset is added to the
placement positions for actual component placement.
6 Step No. Designate the start line number and the end line number of the range of the
placement data in the input order.
When "Opt. order" is selected as the "Sequence", the start and end line
numbers are handled as the optimized data numbers also.
7 Place tracking After blank run of a board, designate whether or not to perform placement
tracking by the camera. If performed, set whether it is manual or automatic.
Off: Placement tracking is not performed.
Automatic: Placement tracking is performed automatically.
Manual: Stops at each placement position, and then goes to the next
placement position through a key-in by the operator.
8 Pick tracking Before blank run of a board, designate whether or not to perform pickup position
tracking by the camera. If performed, set whether it is manual or automatic.
Off: Pickup tracking is not performed.
Automatic: Pickup tracking is performed automatically.
Manual: Stops at each placement position, and then goes to the next
pickup position through a key-in by the operator.
9 Automatic interval When camera tracking is performed automatically, designate the waiting time
duration at a stop position. (time duration in 10 msec: "1" indicates "10 msec")
Note: The value specified on the Operation option menu is displayed at the item
"Reference pin correction", and cannot be changed on this dialog box.
6 − 122
(2) Operation

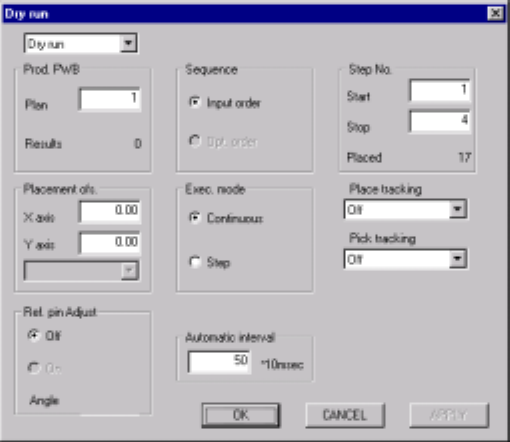

Figure 6.6.1 shows the Initial dry run conditions menu box.
Figure 6.6.1 Initial Dry run conditions menu box
① Setting items selection
Switches the dialog box to be displayed among: Production conditions
dialog box, Trial Run conditions dialog box, and Dry Run conditions dialog
box.
② Prod. PWB
Enter the predetermined number of PWBs to be produced. The number of
"Result" field is displayed according to setting for the number of produced
boards specified on the Operation Options menu.
③ Sequence
Using the corresponding radio button, select the placement sequence: either
input order or optimized order.
④ Exec. mode
Select either "Continuous" or "Step" execution mode with the corresponding
radio button.
⑤ Placement ofs.
In case a certain production lot has a specific offset (in printing process or in
reference holing process), enter the X and Y offsets in this field. The entered
offset is applied to the entered placement position.
⑥ Step No.
Enter the start line number and end line number to specify the range of
placement. The number of placement points on a board is displayed in the
"Placed" field, and the initial value is displayed in each field. When "Opt.
order" is selected as the "Sequence", you cannot change these initial values.
⑦ Place tracking
Using the radio button, set whether or not to perform placement tracking after
blank run by the camera, and also the types of tracking.
6 − 123
⑧ Pick tracking
Using the radio button, set whether or not to perform pickup tracking before
blank run by the camera, and also the types of tracking.
⑨ Automatic interval
Enter the interval of automatic run.
6.6.1 Starting the blank run
To start the blank run, press the <START> switch on the operation panel after setting
the desired blank-run conditions.
CAUTION
The head starts to move immediately after the <START> switch is
pressed, and then "Blank run" starts.
To avoid a risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine during operation of the
machine.
Before pressing the <START> switch, check that there is no one who is
working in the machine.
Before pressing the <START> switch, check that there is no one who
can be injured when the head starts to move.
Before pressing the <START> switch, check that there are no obstacles
(tools and jigs) attached or left in the machine.
The green signal lamp lights to indicate that the blank run operation is in progress.
CAUTION
If the feeder bank is never recognized (since the machine is zeroed, or
the bank moves down then up), it may be recognized automatically
before the machine moves to the pick position. Since the head moves
across the feeder while the feeder bank is being recognized, do not
place your hand in the machine, nor move your face or head close to
the machine. Especially, take care when the feeder bank is
recognized not from the menu but during teaching or tracking a pick
position.
