CHAPTER 6 PRODUCTION PROCEDURES
6.1 Preparations
6.1.1 Component feeders
Make sure that all component feeders (the tape feeders and the stick feeders,) are
mounted in place correctly.
6.1.2 ATC
Check to see if the number of each nozzle mounted on the ATC is equal to the ATC
number and nozzle number selected in the “ATC nozzle assignment” item of the
Machine Setup menu.
<Mounting and dismounting nozzles on the ATC>
Procedure
1. Turn off the power of the machine. Set the valve ⑪ to OFF.
2. Open the slide plate ②.
3. With aligning the flat portion of the nozzle ⑨ with the long hole of the ATC
bracket ①, mount the nozzle ⑨ onto the ATC.

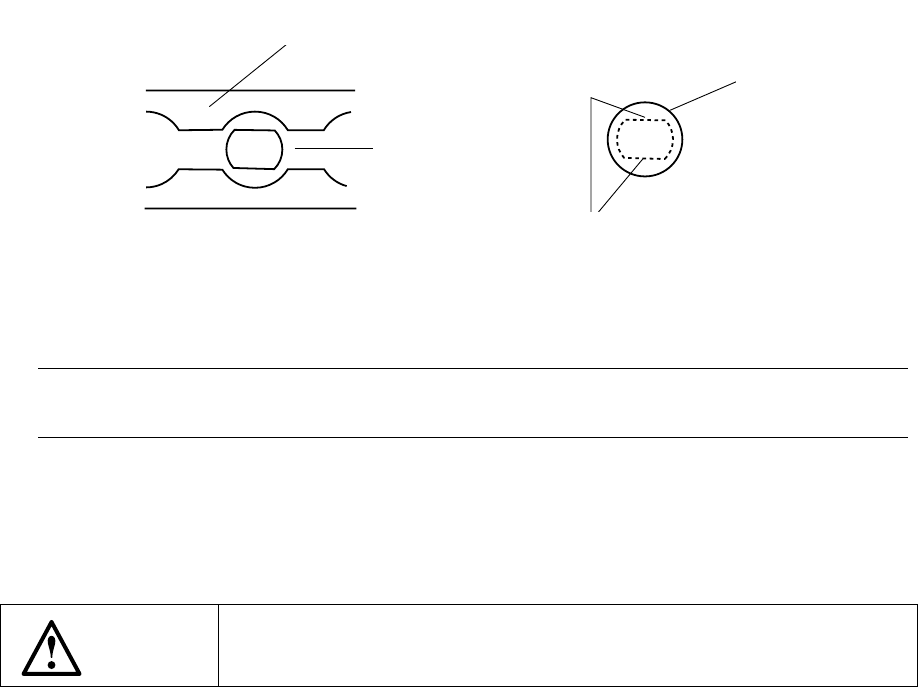

Figure 6.1.2.1
Notes: Return the nozzles where they were. When a nozzle is replaced, perform
the laser height adjustment for nozzle assignment of the setup data
4. Nozzles are also dismounted in this state.
5. Do not attach the nozzle directly to the head. (The face of the laser becomes
dirty and this can cause errors.)
WARNING
Before starting to work, turn off the power of the machine to avoid a risk
of injury caused by unpredictable activation of the machine.
Slide plate
②
ATC bracket
①
When the slide plate 2 is opened
Nozzle
⑨
Flat portions
6 − 2
1
5
6
8
7
9
10
11
12
4
3
2
13
17
18
20
19
21
22
23
24
16
15
14
① ATC bracket ⑥ ATC OPEN sensor
② Slide plate ⑦ ATC CLOSE sensor
③ Nozzle outer support ⑧ ATC numbers (1 to 24)
④ Air cylinder ⑨ Nozzle
⑤ Speed controllers

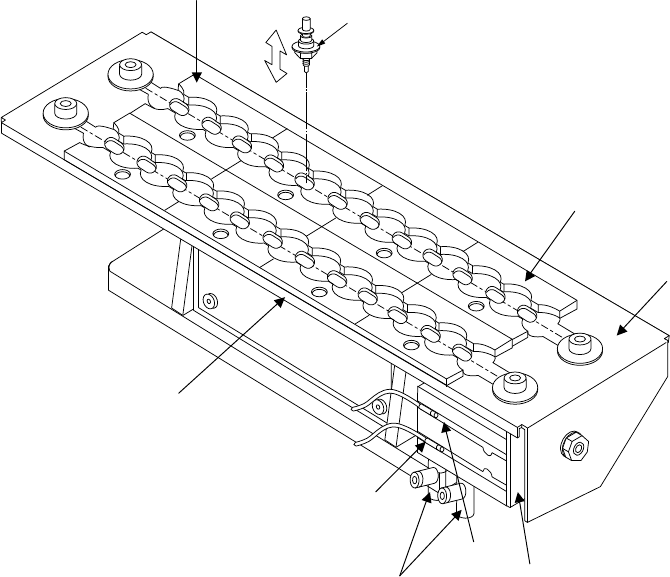

Figure 6.1.2.2
①
⑦
③
④
②
⑧
⑤
⑥
⑨
6 − 3
6.1.3 Preparation of PWB transport section
6.1.3.1 Entire view of PWB transport section

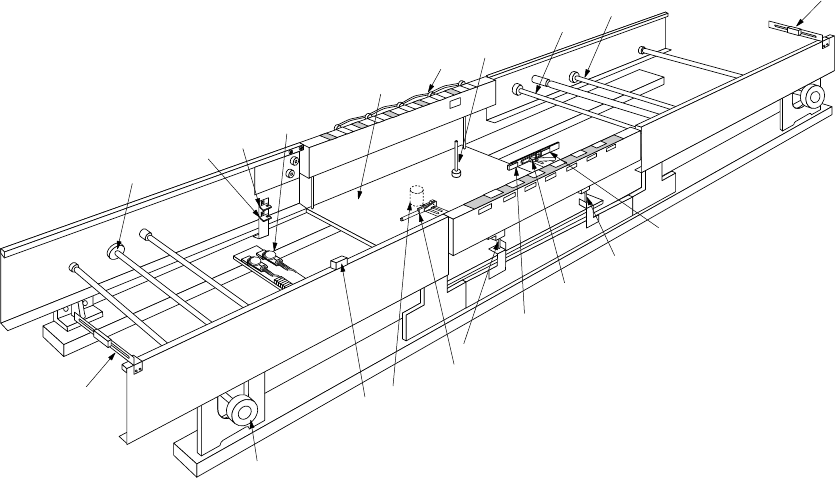

Figure 6.1.3.1
①
IN sensor
⑩
Pusher X (Shape reference option)
②
OUT sensor
⑪
Centering pin
③
STOP sensor
⑫
BU table
④
C-OUT sensor
⑬
Motor control
⑤
BU-UP sensor
⑭
BU pin
⑥
BU-DOWN sensor
⑮
Pusher Y (Shape reference option)
⑦
PWB transport motor
⑯
Depressure valve (Edge reference option)
⑧
Drive shaft
⑰
Wait sensor
⑨
Stopper
①
⑦
⑰
⑬
⑩
⑪
③
⑨
⑪
④
⑧
⑭
⑮
⑫
⑯
⑤
⑥
⑧
②
⑧
