8.5.2 Feeder Knock Pin Control
When you select the [Feeder] command on the [Ctrl] menu, then the [Feeder knock
pin control] command, the following “Feeder knock pin control” dialog box appears.
Figure 8.5.2.1 Feeder knock pin control dialog box
(1) Control item
Select a control item with the corresponding radio button.
You can select the control item on the FPI control only when the “Feeder position
indicator” is checked (installed) on the “Option” menu of the MS parameter.
This selection does not affect the setting of the “Device enable” menu invoked
from the Machine Setup menu (this means that you can select a not-checked
unit).
(2) Control position
When selecting “Tape feeding action” as the control item, select the position of
the pin to be controlled from the control side (using the radio button) and the
number (using the edition box).
When selecting “Direct knock action” in the control items, select the position of
the pin to be controlled from the control side (using the radio button).
8 − 48

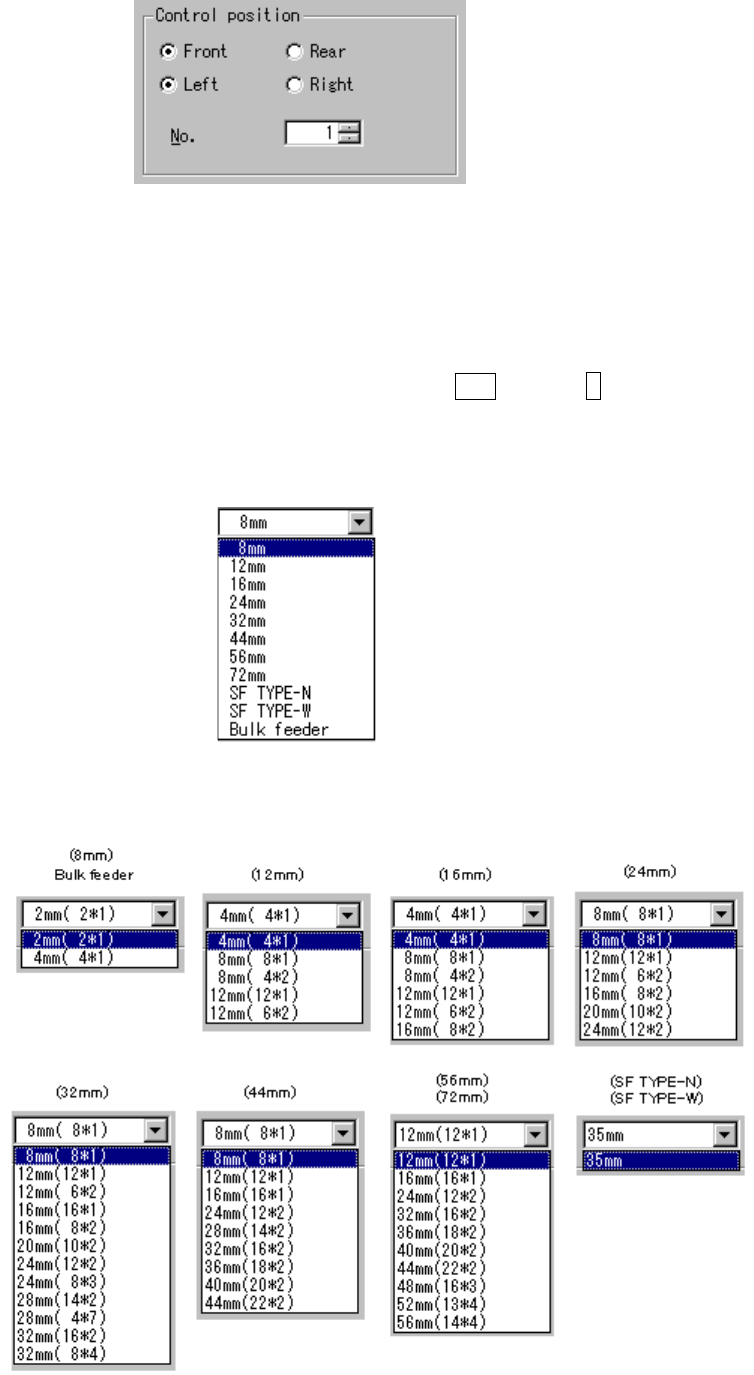

(3) Kind of feeder
When selecting “Tape feeding action” as the control item, select the tape width
and feed pitch from the combo box.
This item cannot be set when the control item “Direct knock action” is selected.
◆
The following list appears when you press the ALT key and ↓ key at the
same time.
①
Tape width
②
Feed pitch
The available feed pitches vary depending on the tape width you selected.
8 − 49
(4) Control button
Each control item can be executed with the control button.
The display of the control buttons varies depending on the control item you
selected.
1) Tape feeding action
This item feeds a tape.
When the control item “Tape feeding action” is checked, select the< EXEC>
button, or press the F3 key to control the tape feed.
2) Direct knock action
This item executes knock operation per feeder bank.
When the control item “Direct knock action” is checked, select the< “EXEC>
button, or press the F3 or F4 key to control the direct knock.
3) FPI cont. (Independent)
This item turns on and/ or off the feeder position indicator.
When the control item “FPI cont.” is checked, select the <ON>, <OFF>,
<ON/OFF> or <BLINK> button, or press the F3, F4, F5 or F6 key.
4) FPI cont. (All)
This item turns on and/ or off the feeder position indicators on the front
feeder bank or rear feeder bank.
When the control item “FPI cont.” is checked, select the <ON>, <OFF>,
<ON/OFF)> or <BLINK> button, or press the F3, F4, F5 or F6 key.
