6 − 50
Error contents
No. Display (Cause of the error)
1 No components
2 Different component type
3 LA retry over
4 Retry over
5 Off line
6 Supply
7 Operation error
8 Laser recognition error
9 Chip rise
10 Transfer mistake
11 Feeder bank invalid
12 Stacker invalid
6 − 51
6.3.1 Retry List display after the end of board production
(1) Unplaced list
To call the retry list after board production ends, select the [Tool] command from
the menu bar, the [Error log] command on the displayed menu, then the
[Unplaced list] command.
The screen shown below (Unplaced list) in Figure 6.3.1.1 appears on the screen.
In this list, up to 100 retry errors per each station can be displayed in the order in
which the errors occurred. However, the Retry List (Supplier information) screen
in Figure 6.3.1.2 appears if there is any feeder which failed to pick up a
component although all components were placed on boards. If all components
are picked and placed, no error appears on the screen.

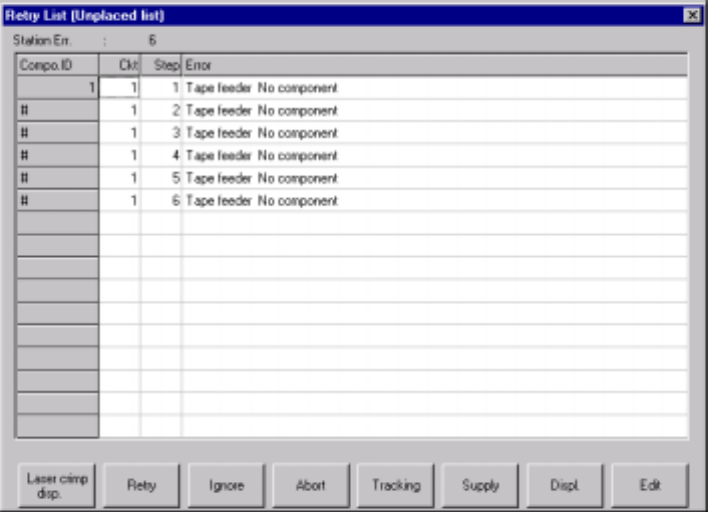

Figure 6.3.1.1 Retry List (Unplaced list) screen
6 − 52
(2) Feeder information
When you select the [Tool] command from the menu bar, the [Error log] command
on the displayed menu, then the [Supplier information] command after production,
the screen shown below in Figure 6.3.1.2 appears.
In this list, up to 100 errors can be displayed.
Figure 6.3.1.2 Retry List (Supplier information) screen
