9 − 16
9.4.3.2 Setting the number of times for replacing a head
When you select the [Tool] command on the menu bar, the [Exchange frequency
setup] command on the displayed menu, then the [Each head] command the screen
appears as shown in Figure 9.4.3.2.1.
When you replace the head nozzle with another one, set this number to <0> to
initialize the number.
Figure 9.4.3.2.1 Exchange frequency setup dialog box
9.4.3.3 Setting the warning level
When you select the [Tool] command on the menu bar, the [The Warning level is set]
command on the displayed menu, then the [Each head] command, the screen
appears as shown in Figure 9.4.3.3.1.
Figure 9.4.3.3.1 "The warning level is set" dialog box
9.4.3.4 Setting the error level
When you select the [Tool] command on the menu bar, the [The error level is set]
command on the displayed menu, then the [Each head] command, the screen
appears as shown in Figure 9.4.3.4.1.
Figure 9.4.3.4.1 "The error level is set" dialog box
9 − 17
9.4.4 Light operation information
When you select the [Windows] command on the menu bar, then the [Light Operation
Information] command on the displayed menu, the screen appears as shown in Figure
9.4.4.1.
No. Item Description
1 HMS Using count Displays how many times the HMS was used.
2 HMS Using time Displays the time spent in using the HMS.
3 OCC Using count Displays how many times the OCC was used.
4 OCC Using time Displays the time spent in using the OCC.
5 Light-on time Displays the total time each signal light (red, yellow and blue) lit.
6 Blink time Displays the total time each signal light (red, yellow and blue) flashed.
7
Total Light on/Blink
time
Displays the total time the signal light lit or flashed.
8
Total Light on/Blink
count
Displays how many times the signal light lit or flashed.
Figure 9.4.4.1 Light Operation Information
9 − 18
9.4.5 Driver operation information
When you select the [Window] command on the menu bar, then the [Driver Operation
Information] command on the displayed menu, the screen appears as shown in Figure
9.4.5.1.
No. Classification Item Description
1
Auto PWB Width driving
count
Displays how many times the automatic PWB
adjustment was performed since this information
was cleared the last time.
2
Backup plate driving
count
Displays how many times the backup plate was
driven.
3 Stopper pin driving count
Displays how many times the stopper pin was
driven.
4
Conveyor
Shape Ref. driving count
Displays how many times the machine has
produced PWBs by referring to the shape of
PWBs since this information was cleared the last
time.

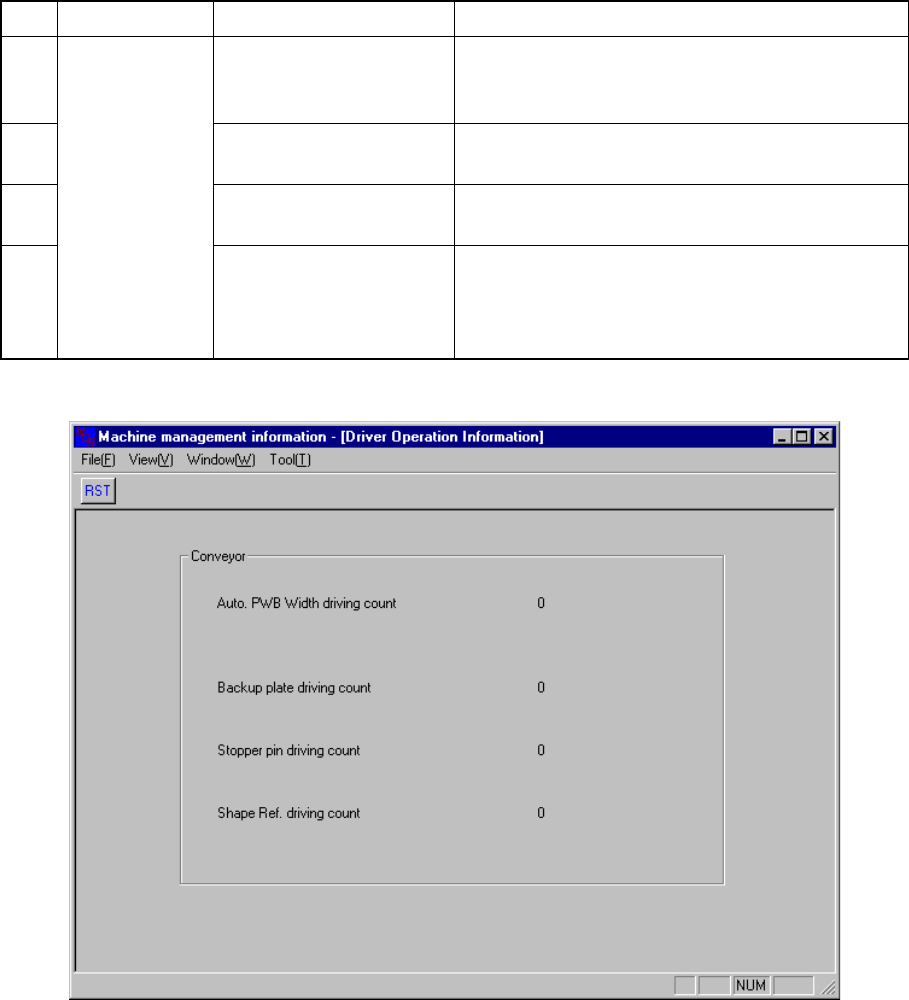

Figure 9.4.5.1 Driver Operation Information
