4 – 224

(2) Executing the bank mark alignment operation

If the bank mark recognition is set on the Setup menu, the system recognizes a

bank mark to improve the precision of the component pick-up point before the

camera or HMS moves to each feeder bank. The following dialog box appears

on the screen. Click the <OK> button. If you click the <Cancel> button, the

precision of the component pick-up point is not corrected.

Figure 4.12.3.4.3 “Feeder bank recognition confirmation” dialog box

(3) While the camera is tracking a component pick-up point/the HMS is tracking

component height

After you press the <Start> button or click the <Execution> button, the following

dialog box appears on the screen while the system is tracking each pick-up

position (height).

Figure 4.12.3.4.4 “Pickup position (height) camera trace” dialog box

4 – 225

1) State

① Mode

“Manual” or “Automatic” which is set with the

radio button “Feed method” appears here.

② Order

“Feeder order” or “Cmp order” appears here as

specified with the “Order and Range” radio

button.

③ Range

The “first” component number and “end”

component number to be tracked are displayed

here. Or, which feeder bank is to be tracked is

displayed.

④ Status

“Operating” indicates that the axis is moving. “Pause” indicates that the

axis pauses temporally in Automatic Feed mode. “Stop” indicates that

the axis is stopped manually or intentionally. “Waiting” indicates that the

axis is moving to the safety position.

⑤ Stop remaining time

The progress bar indicates the remaining stop time in Automatic Feed

mode.

2) Pickup data

① Station (available to a KE-2030 only)

The station whose component pick-up point is being tracked is displayed

here.

② Package

The packaging style of a

component being tracked is

displayed here.

③ Installation Feeder

The fixing hole position of a

component being tracked is displayed here: if a stick feeder is used, the

lane number is displayed also, while if a tray is used, the corner number

is displayed also.

④ Cmp. name (Component name)

The name of a component being tracked is displayed here.

4 – 226

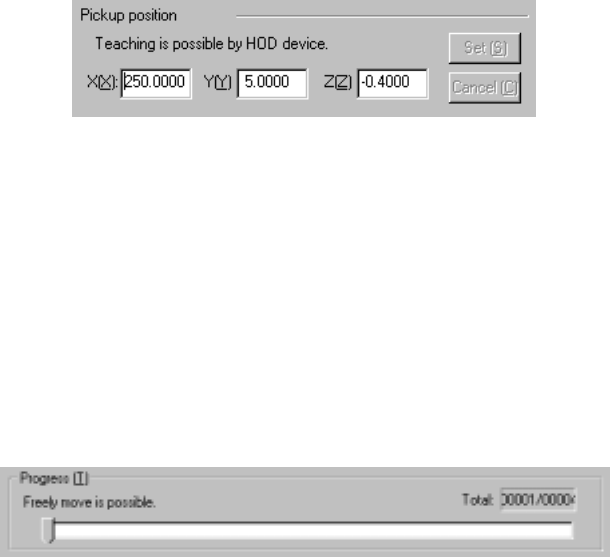

3) Pickup position

The coordinates of a component pick-up position being tracked is displayed

here. You can manually change the coordinates or use the teaching

function to change the coordinates displayed.

4) <Set> and <Cancel> buttons

These buttons are activated when you manually change the coordinates or

use the teaching function to change them. When you click the <Set> button,

the changed coordinates are saved into Pick data. If you do not want to

save the changed coordinates, click the <Cancel> button.

5) Progress

This slider bar moves one by one as the tracking position moves. While the

tracking operation pauses, you can move this slider bar to move the tracking

position to the previous point, the next point and so on.
