2.4 Registering for Inspection
2-75

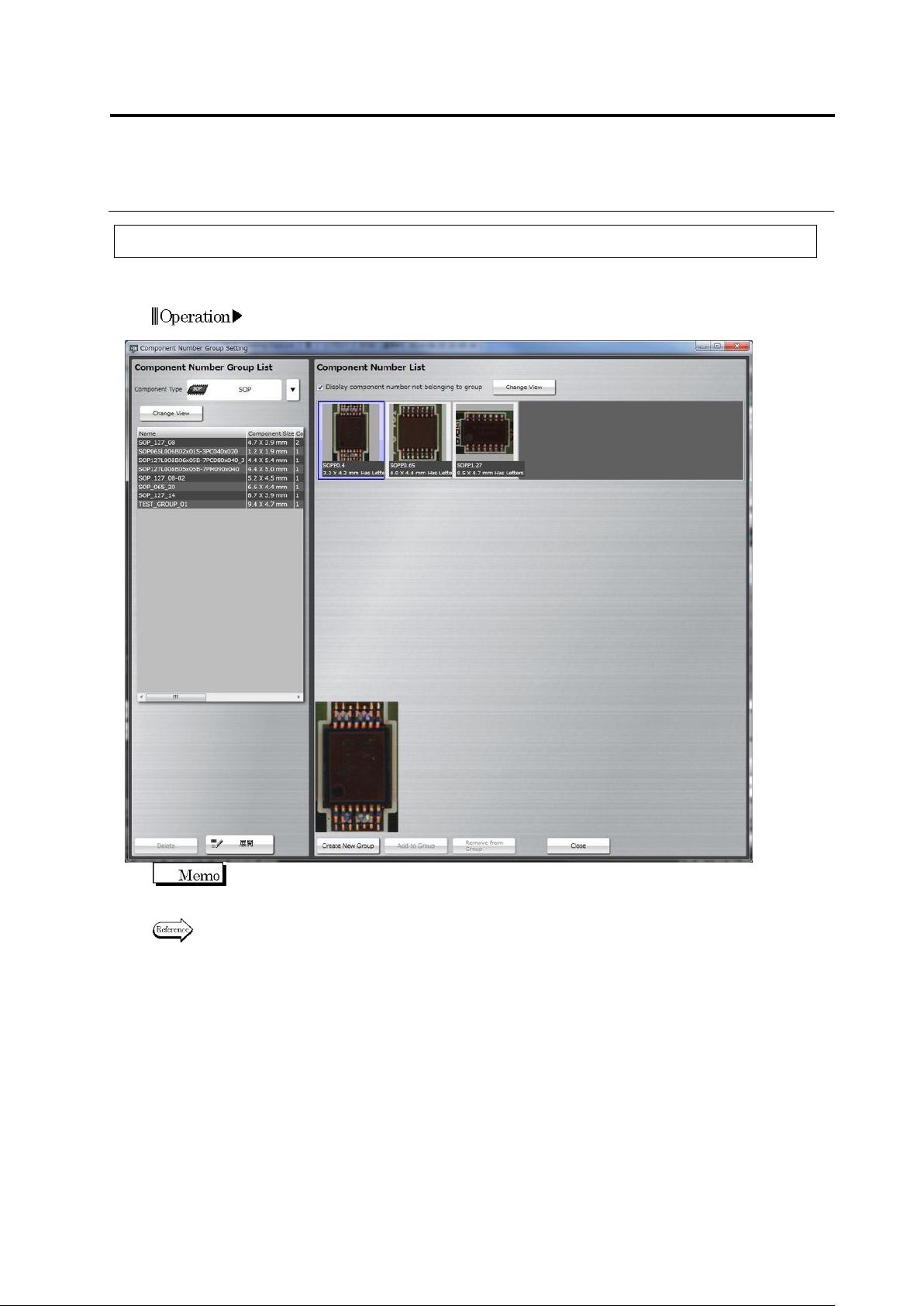

2.4.6 Setting Component Number Group
Component numbers with the same shape and color can be grouped into one to share images
and settings.
1.
On the menu bar in the editing screen, select [Tools] -> [Component
Number Group Setting].
In a component number group, all the windows, inspection settings, and color parameters are
the same except for mask model of component difference/polarity difference inspection.
Refer to "2.15.3 Editing a Model" for [Deploy].
Chapter 2 Inspection Programming
2-76

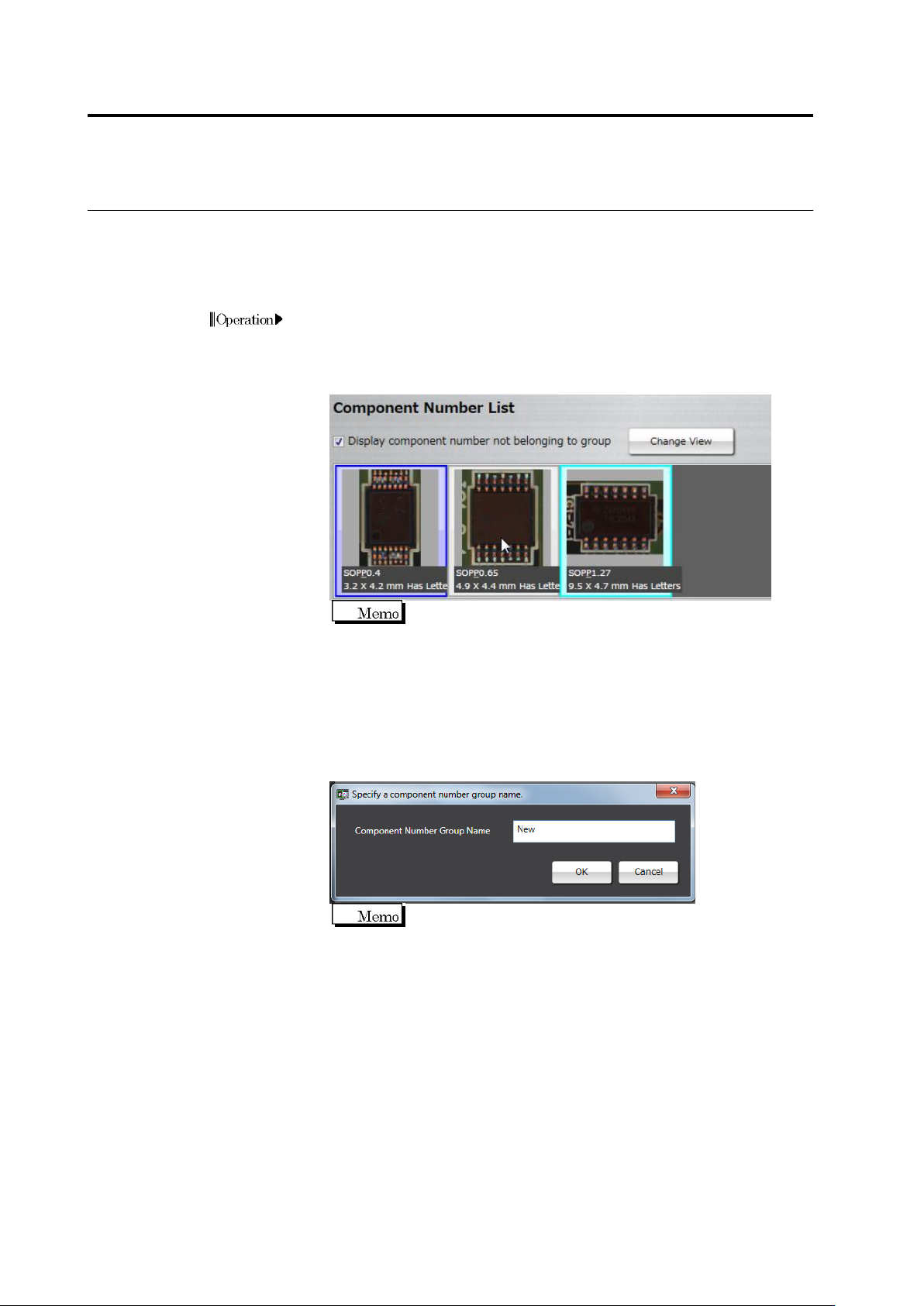

2.4.6.1 Create New Component Number Group
A new component number group is created based on an existing component number.
1.
Select a component type.
Select a component type from the [Component Type] pull-down
menu.
2.
Select a component number.
Only the same component numbers as the selected
component type are displayed in the list.
Select the [Show component number not belonging to group] check box,
and select a component number for which you want to create a
group.
3.
Create a new component number group.
Click [Create New Group] at the screen bottom. The component
number group name dialog box appears. Enter a component number
group name.
You cannot specify the same component number group name
in one component type.
2.4 Registering for Inspection
2-77

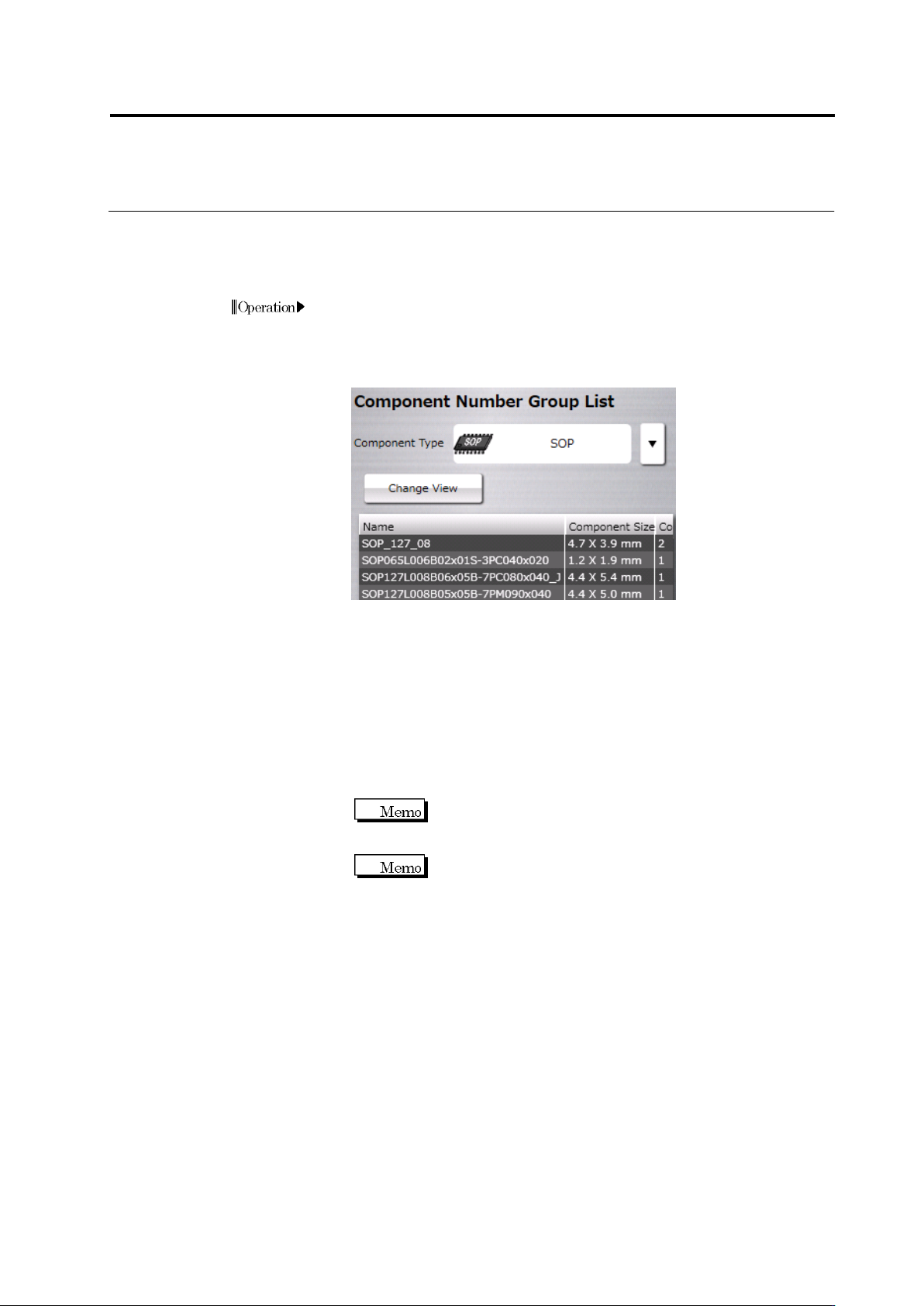

2.4.6.2 Adding to Component Number Group
An existing component number is added to a component number group.
1.
Select a component type.
Select a component type from the [Component Type] pull-down
menu.
2.
Select a component number group.
3.
Select a component number.
Select the [Show component number not belonging to group] check
box, and select a component number you want to add to the
selected component number group.
By clicking [Change View], the display of component number can be
toggled between image and thumbnail.
4.
Add to the component number group.
Click [Add to Group] to add the component number to the
component number group.
When added to the group, data of the component number is
synchronized with the component number group. Be careful
that this may change the inspection result.
If a component size of the component number you want to add
differs from the component size of the component number
group, you cannot add the component number to the group. In
such a case, either create a new component number group or
correct the component window size.
