Chapter 2 Inspection Programming
2-62
Follow the procedures below as required if the land window auto extraction failed.

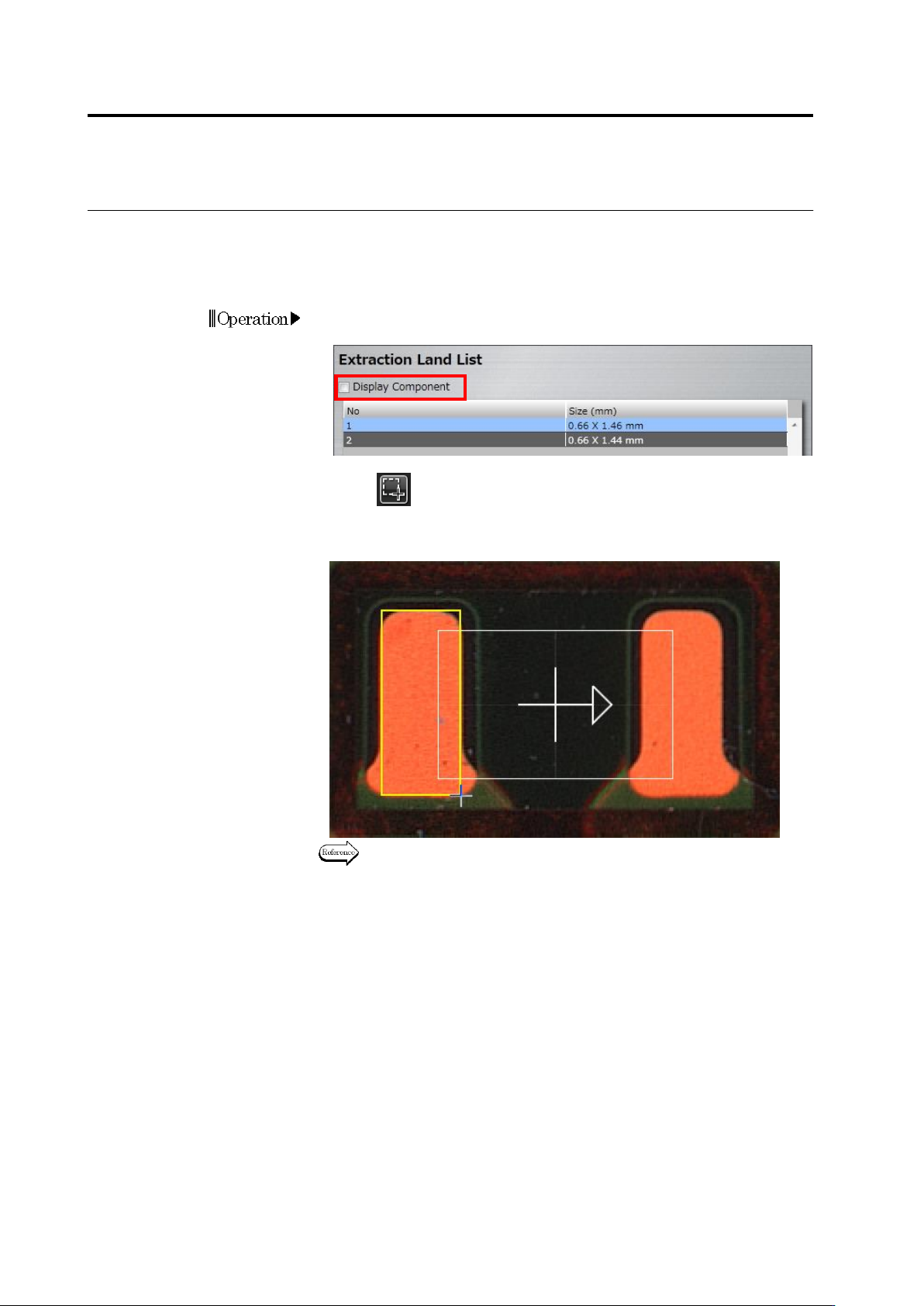

・ Add a Land Window
Form a land window by directly drawing it on the image display area.
1.
Deselect the [Display Component] checkbox to display the bare
PCB image.
2.
Click (Create Window) button in the Image Operation tool
bar.
3.
Create a window by almost tracing the land shape on the image.
Refer to "2.1.3 Image Display Area Operation" for the image display
area operation.
Operation
2.4 Registering for Inspection
2-63
・ Delete a Land Window
Delete extra land windows automatically extracted, if there are any.

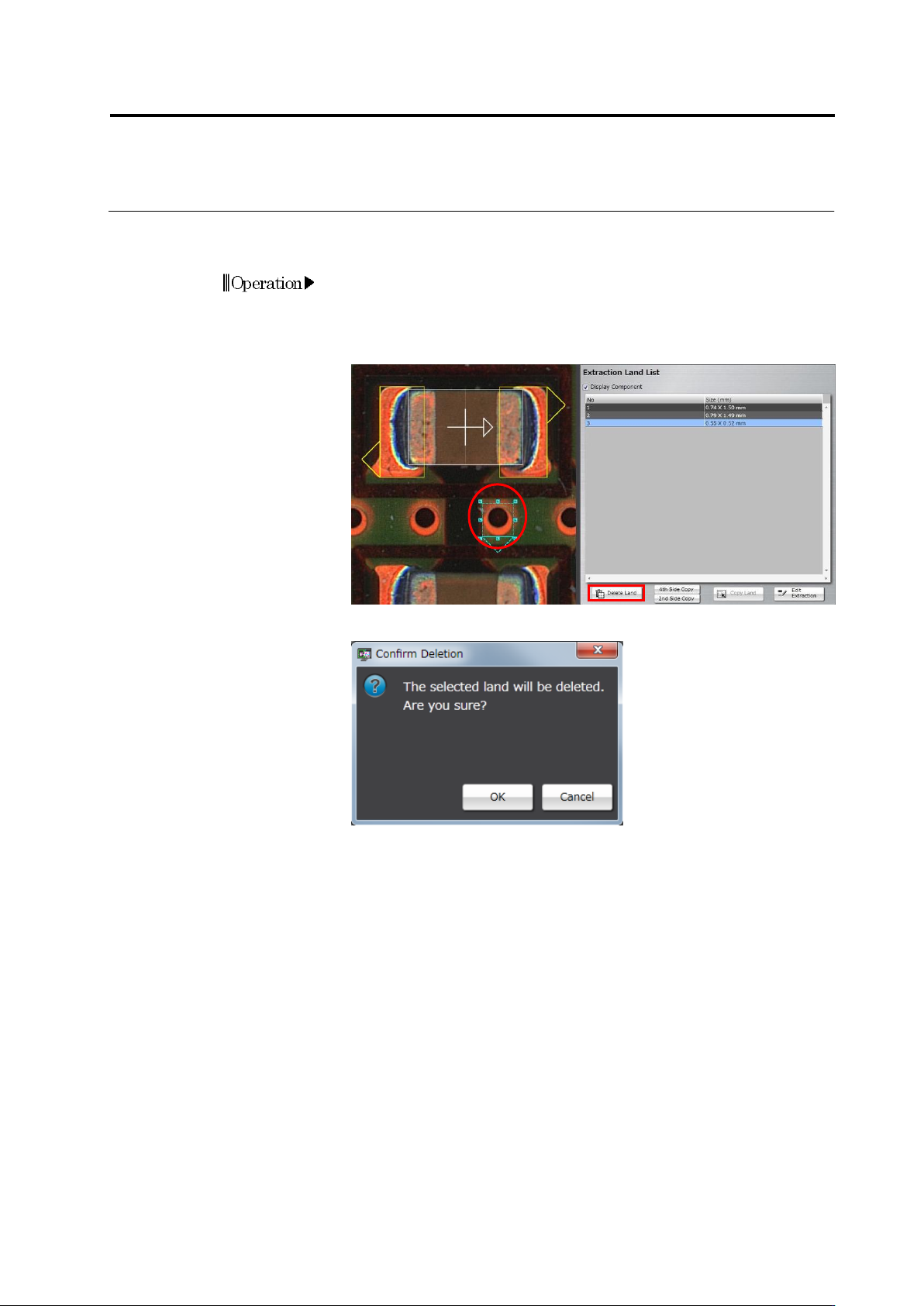

1.
Select the land to delete.
Click the land window in the image display area, or click the land in
the Extraction Land List.
2.
Click [Delete Land].
3.
The following dialog appears. Click [OK].
Operation
Chapter 2 Inspection Programming
2-64
・ Copy a Land Window
A multiple number of land windows can be added efficiently for a component such as QFP,
which requires many lands.
By selecting the lands at both ends of the same side, land windows are automatically copied
and inserted among the selected lands.
1.
Add land windows to one side of the component.
Delete the land windows (if any) at positions other than the
both ends of the side.
2.
Select the lands at both ends and click [Copy Land].
To select two lands simultaneously, click the land windows on the
image display area while holding down the [Ctrl] key on the
keyboard, or click the lands in the Extraction Land List.
3.
Enter the number of lands to add, and click [Preview].
4.
Click [OK] to apply the result shown in the preview, or [Cancel] to
abort it and quit land copying.
Operation
