Chapter 3 Management Menu
3-16
- Not Execute Import: If data are selected arbitrarily, or if there is no existing
component number and feature quantity or images are not
selected when data are exported, data are not sufficient. So,
“Not execute import” is selected.
Exporting component number group data
Although there are several settings specific to component number group, user operations are
basically equal to those for component number data.
1.

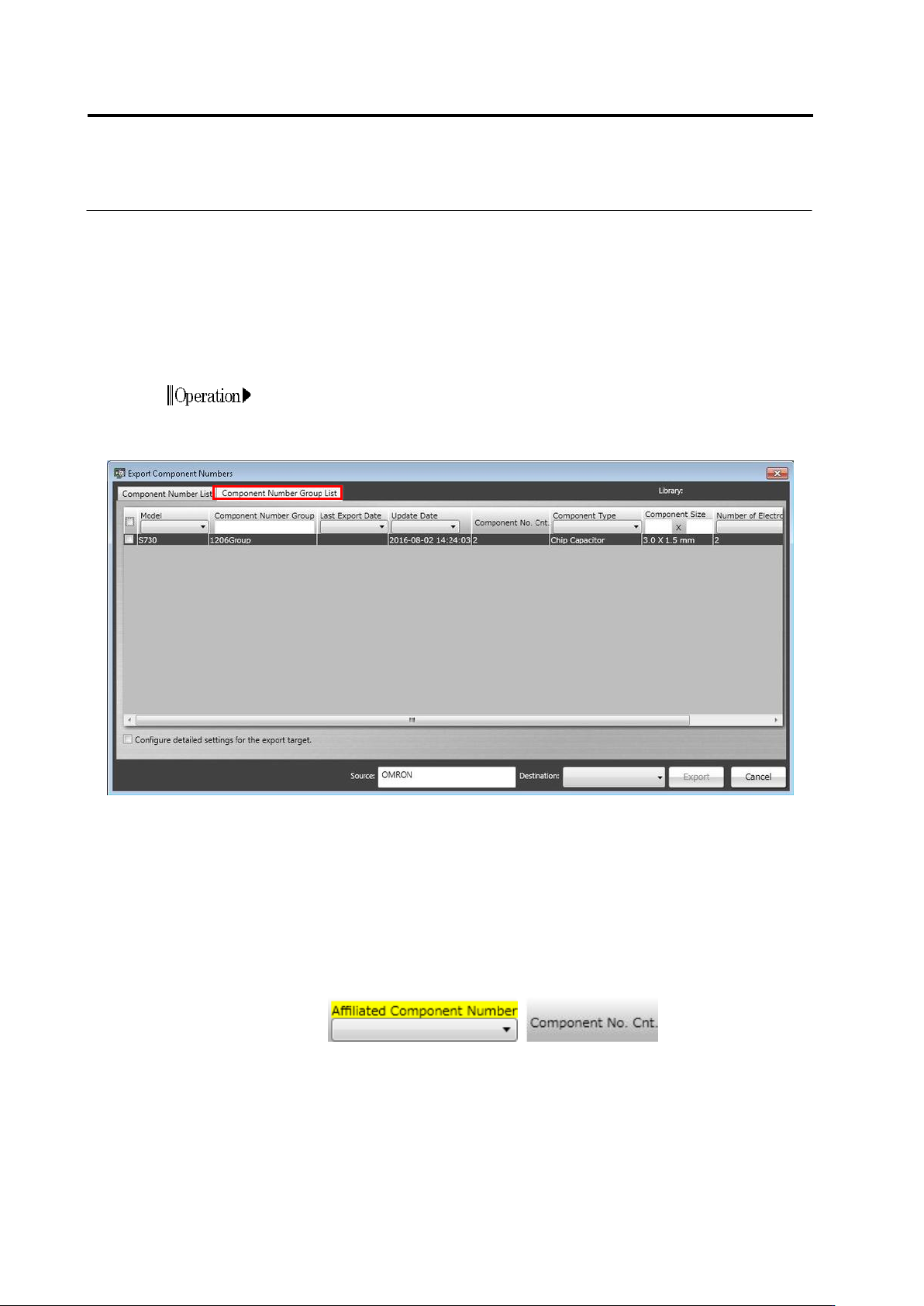

On the Export Component Numbers screen, click the
[Component Number Group List] tab.
2.
Set the Source and Destination items in the same way as applied
to component number data. To set the content exported in details,
turn ON the [Set the content exported in details] check box. The
following items
⑱
and
⑲
are displayed in addition to
component number data.
3.
When the component number group exported or its content has
been set, click [Export]. Select a folder to save the component
number group data.
⑱ Turn ON/OFF export execution of the component number data belonging to the
component number group
⑲ Display the number of component numbers belonging to the component number group
⑱ ⑲
3.3 Configuring Quality Criteria Setting
3-17
Importing component number group data
User operations are equal to those for component number data until the data imported are
selected.
1.

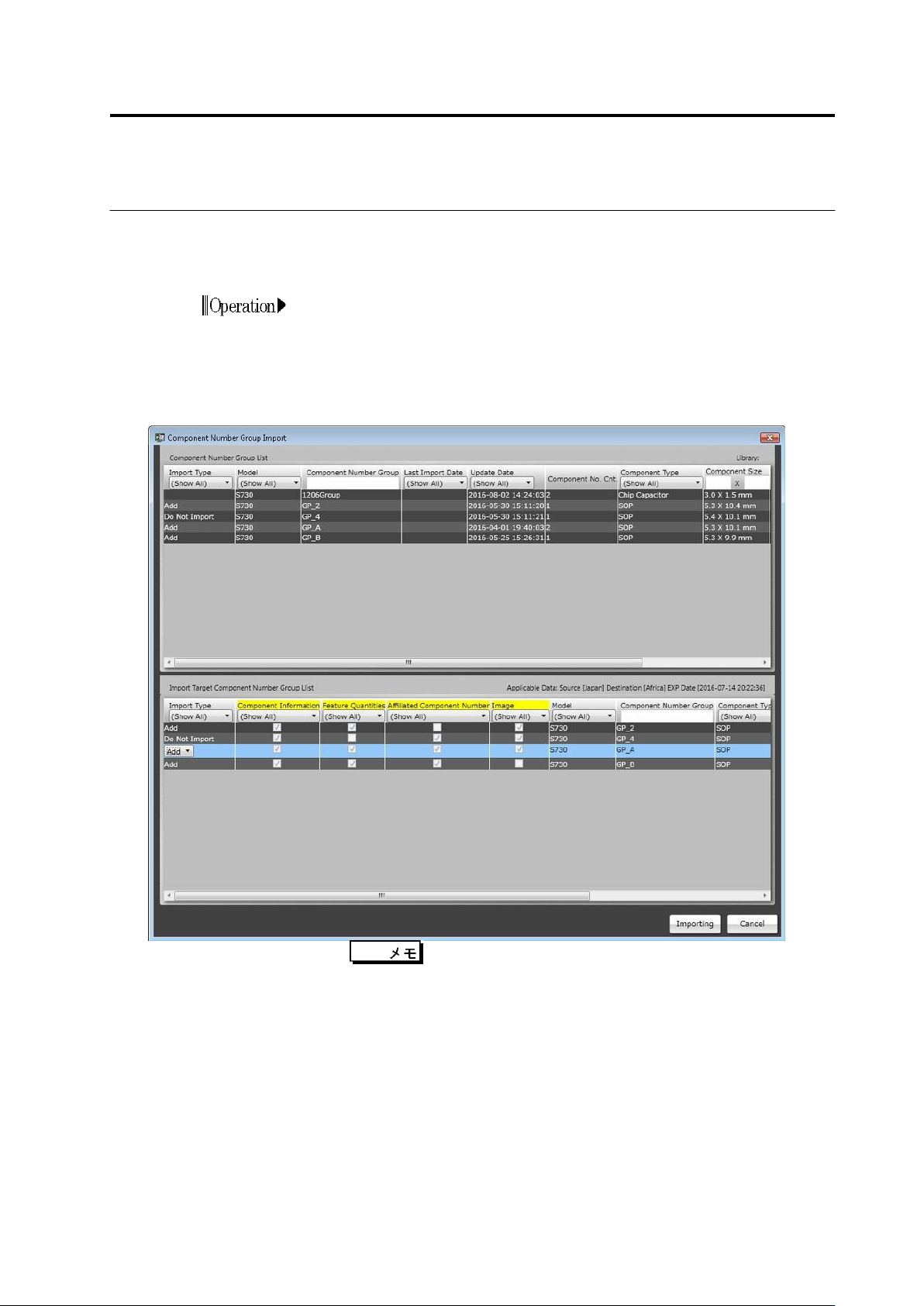

Display the Import Component Number Group screen. A list of
existing component number groups is displayed at the screen top.
The component number group imported and import type are
displayed at the screen bottom. By clicking the Import Type cell,
whether to execute import or not can be set.
By clicking [Import], the component number group is imported.
When [Cancel] is clicked, this screen is closed.
One of the following types is displayed for each component
number group according to the software processing of
importing.
- Overwrite to Component Number Group: The existing component number
group is overwritten by the component number group imported.
It can be selected which data are imported to the existing
component number group. For example, if adding images only,
turn OFF the check boxes of Component Information and
Feature Quantity, but turn ON the check box of Image. If
overwriting inspection criteria only, conversely, turn ON
Component Information only.
- Add: The component number group is added as a new one.
- Not Execute Import: If there is no existing component number group and
feature quantity or images are not selected when data are
exported, data are not sufficient, so they cannot be imported. It
is also able not to execute import by changing the import type.
Chapter 3 Management Menu
3-18
3.4.3 Outputting List of Component Numbers Used by
Inspection Programs
To simply grasp which component number is used for each inspection program, a list of the
component numbers used by inspection programs can be output.
To output the content of the inspection program list, refer to Section 2.18.7
“Outputting Content of Inspection Program List.”
1.

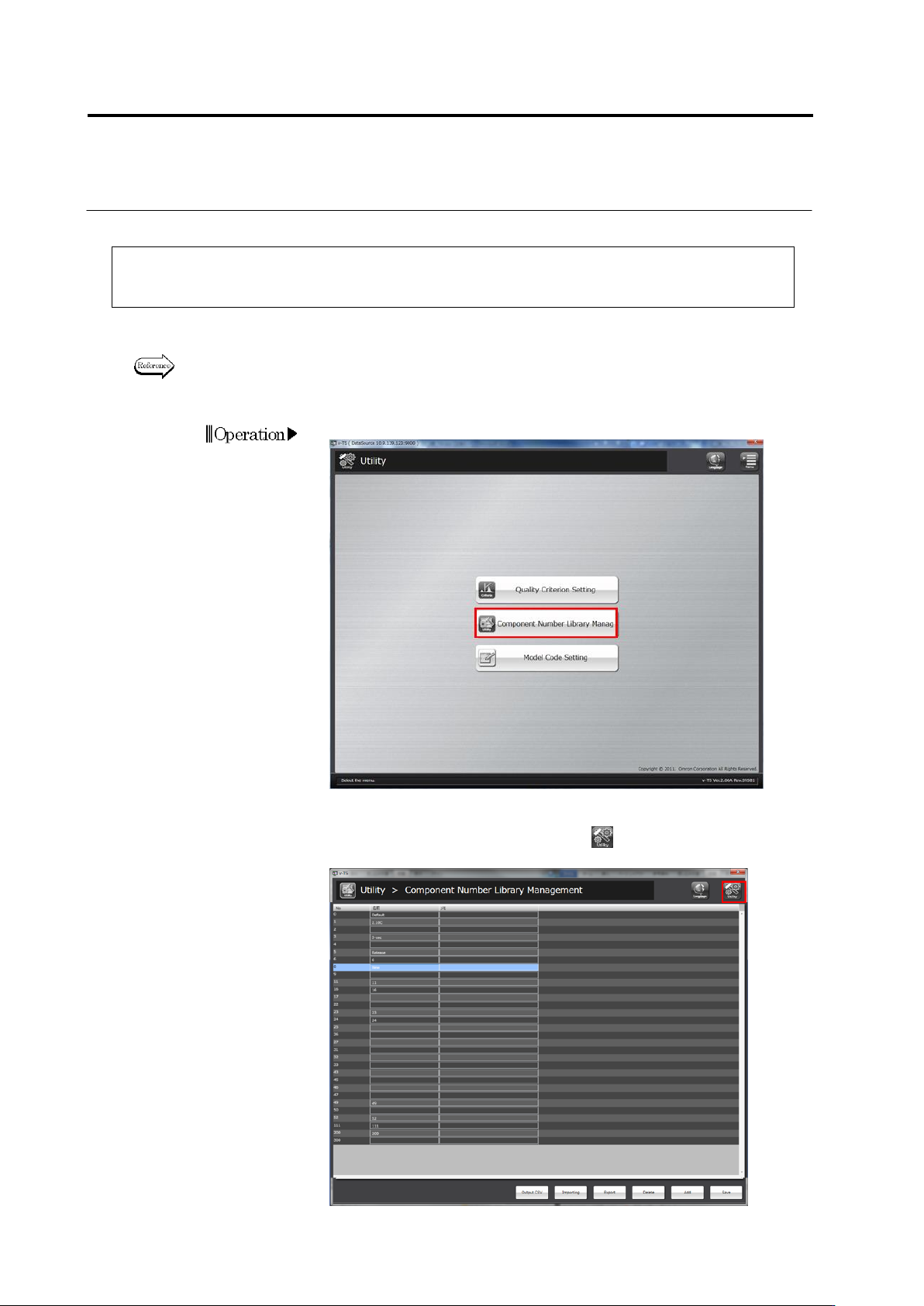

On the Utility menu, click [Component No. Library Management].
2.
The component No. library management screen is opened.
To return to the Utility menu, click the button in the upper right
corner of the screen.
