2.9 Setti ng Oblique Inspection 2- 111 2.9.2 Setti ng Criteria for Oblique Ins pection Items This section describes the procedure to specif y the criteria for ob lique inspection. 1. After capturing obliqu e image with t…
Chapter 2 Inspection Programming
2-110
3.

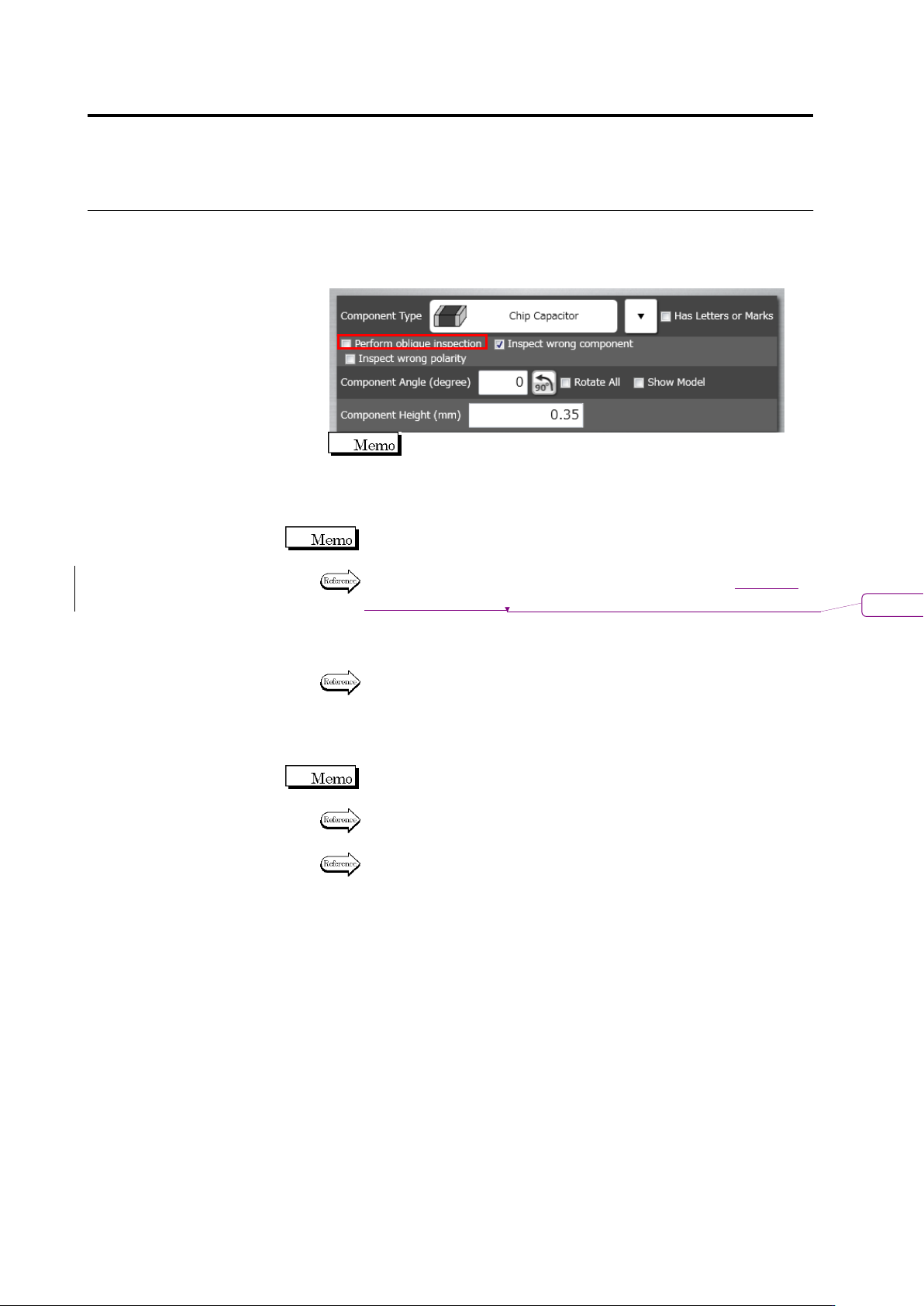

The Component Registration screen is displayed. Select the
component number for oblique inspection in the Component
Number List, and select "Yes" in the oblique inspection row in the
PCB Information panel.
The component cannot be set to "Yes", if the component type is
"BGA/CSP" or "Others (Bottom Electrode)".
4.
If the PCB test has not been conducted for the inspection program,
conduct the PCB test.
Unless the PCB test has been conducted, it is not allowed to capture
oblique images.
For the procedure to conduct the PCB test, refer to Section
エラー
!
参
照元が見つかりません。
“Testing Using PCBs.”
5.
Save the inspection program.
Refer to "2.11.1 Saving an Inspection Program" for the procedure to
save the inspection program.
6.
Exit inspection program editing and capture oblique image with the
inspection system.
If the inspection program is in the process of editing with v-TS, the
program cannot be opened on the system to capture oblique image.
Refer to "2.14 Quitting Program Editing" for the procedure to exit
inspection program editing.
Refer to the Operation Manual of inspection machine: P3-10 "3.2.4
Capturing Oblique Image" for the procedure to capture oblique image.
削除
: 2.8.1
2.9 Setting Oblique Inspection
2-111
2.9.2 Setting Criteria for Oblique Inspection Items
This section describes the procedure to specify the criteria for oblique inspection.
1.
After capturing oblique image with the system, select the inspection
program in the Select PCB screen on v-TS, and click [Edit].
2.
Select an adjustment image with oblique to perform a PCB test.
3.

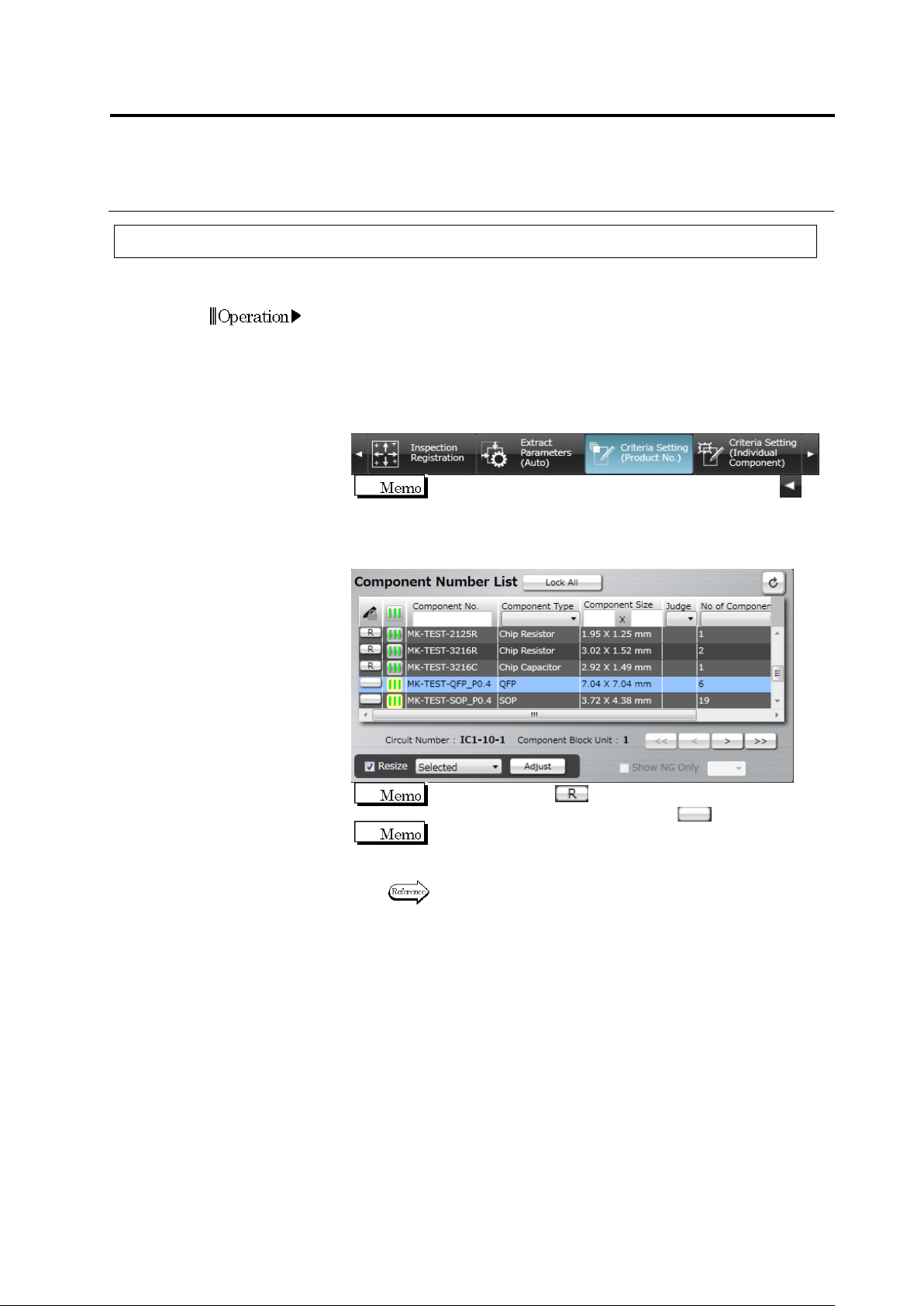

Select the [Criteria Setting (Product No.)] tab to display the Criteria
Setting screen.
If the [Criteria Setting (Product No.)] tab is hidden, click at
the left to display it.
4.
Select the component number for oblique inspection in the
Component Number List.
When the status is (locked), click it to change the
component number state to not locked .
The progress signal is shown in the light yellow background in
the Component Number List for oblique inspection target
component numbers.
Refer to (5) Information Display Area of "2.1.2 Configuration of
the Editing Screen" for details on the progress signals.
Chapter 2 Inspection Programming
2-112
5.
Select a window you wish to edit.
6.
Specify ON of OFF or the oblique inspection checkbox and edit
criteria values.
Component numbers cannot be edited if their oblique image is
not captured yet.
Refer to the Inspection Logic Manual for the details on the
inspection items.
7.
To edit characteristic parameters, click [Edit Model].
Refer to "2.15.3 Editing a Model" for the model editing
procedure.
