Appendix 9. Land Inspection Adjustment Procedure
a-56
The details of the procedure for land error adjustment are as follows:
For details of land error, refer to P5-17 section 5.10 “Land Error” of the inspection logic
manual.
This section hereafter describes the adjustment procedure for false call minimization.
Operation procedure
1. Check the land error checkbox.
2. Check the “Relieve wetting inspection” checkbox.
3. Set the inspection area on the area where the characteristic of OK product appears.

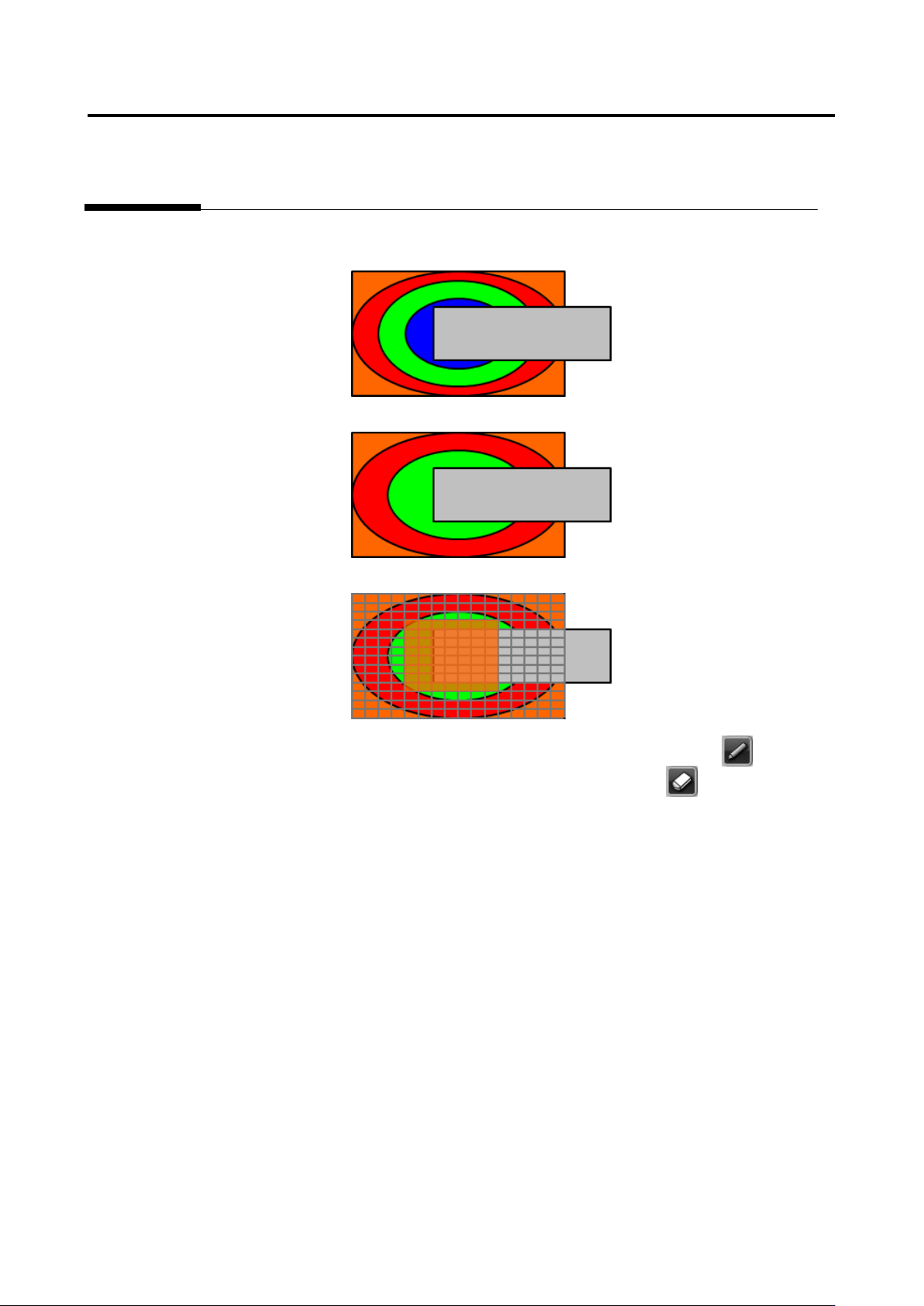

OK product example
Inspection area setting example
Appendix 9. Land Inspection Adjustment Procedure
a-57
4. Add characteristic quantity of the area other than the inspection area using the pen tool .
Exclude the characteristic quantity of the inspection area using the eraser tool .

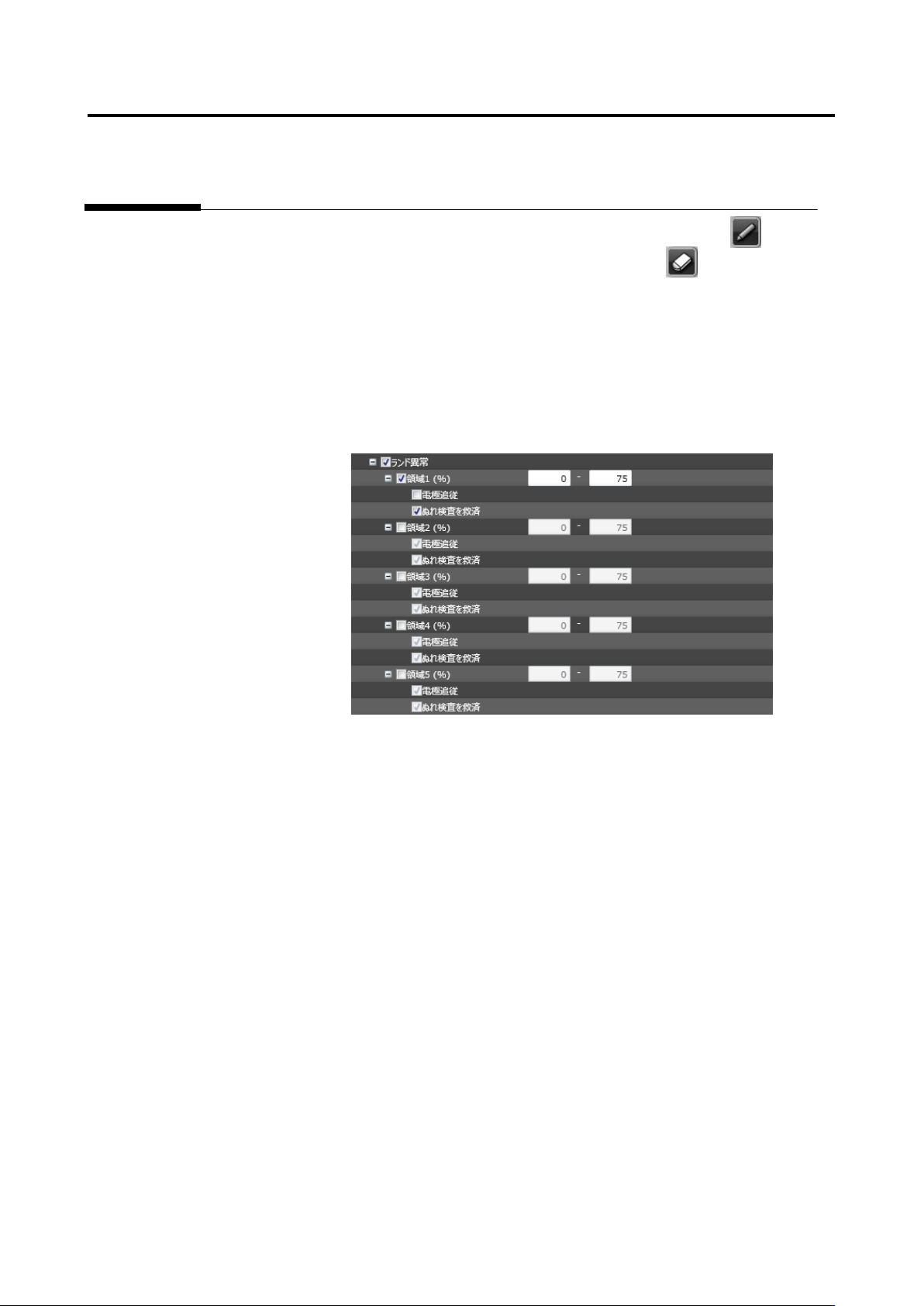

5. Change the judgment criteria of land error so that false call is minimized.
This section hereafter describes the adjustment procedure to eliminate overlooking.
Operation procedure
1. Check the land error inspection checkbox.
Appendix 9. Land Inspection Adjustment Procedure
a-58
2. Set the inspection area where the characteristic of the NG product appears.
OK product example
NG product example
Inspection area setting example
3. Add characteristic quantity of the inspection area of the NG product using the pen tool .
Exclude the characteristic quantity of the inspection area using the eraser tool .
4. Change the judgment criteria of land error so that overlooking is minimized.
